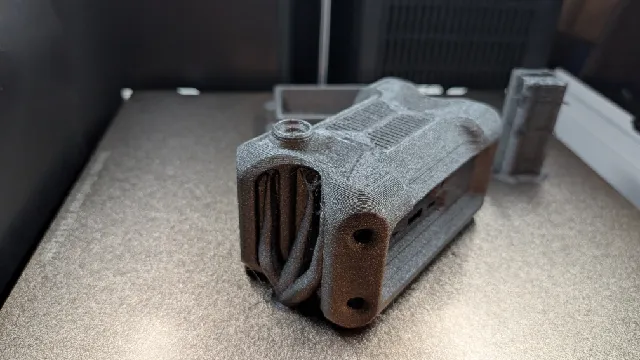

{"data":{"make":{"id":"2980727","created":"2025-11-14T14:13:09.557972+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"784","name":"Bambu Lab H2D","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"832000","handle":"Spectre338_832000","verified":false,"dateVerified":null,"publicUsername":"Spectre338","avatarFilePath":"media/auth/972b93c5-895d-49fd-b3a4-5e01bd637c60.png","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2833951","filePath":"media/comment_images/60/2ae70d-a094-4e41-bc28-2bd5b0c7d20f/1000009790.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Printed well with petg-cf. Will definitely take another run at adaptive layer height. I certainly appreciate you publishing the model. Would you please consider publishing a step file or a Fusion? I would very much like to adapt it to fit a four cell 21700 UPS","rating":5,"likesCount":2,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"1468595","ratingAvg":"4.8000000000","ratingCount":5,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":true,"id":"1468595","slug":"haven-case-for-raspberry-pi-based-manet-by-paralle","name":"Haven \u2013 Case for Raspberry Pi-Based MANET (by Parallel \u00d7 MorosX)","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8000000000","myRating":null,"ratingCount":5,"description":"

[1/27/2026] \u2013 Update (v4)

Increased top SMA pass-through diameter to allow full seating of the SMA nut (hex socket compatible)
Added internal thread to the previously unthreaded corner through-hole

[11/29/2025] \u2013 Update (v3)

Widened SMA hole
Widened Go Pro base mount hole

[11/23/2025] \u2013 Update (v2)
A new v2 of the Haven Case is now available.
This revision increases clearance around the RJ45 Ethernet latch, making it easier to plug and unplug cables\u2014especially when using ruggedized or thick-booted connectors.

Included in this update:

Haven Case Shell \u2013 v2 \u2013 Parallel x MorosX (.stl)
Haven Case Insert \u2013 v2 \u2013 Parallel x MorosX (.stl)
Haven Case \u2013 v2 \u2013 Step \u2013 Parallel x MorosX (.step) (editable source for customization and remixes)

If you downloaded this model before today, grab the v2 files for the best fit. Thanks again to Trey at MorosX for making these improvements!

[11/3/2025] \u2013 Initial Release (v1.0)
Designed by Trey from MorosX, refined by Parallel, leveraging the OpenMANET project on GitHub.

The Haven Case is an extremely rugged, modular enclosure for Raspberry Pi\u2013based MANET radios leveraging the OpenMANET project and Wi-Fi HaLow (915 MHz) using Morse Micro chipsets.

The enclosure design is 100% sterile and unattributable.

These were printed in Fiberon PA6-CF20, the same filament that once took half a ton of pressure under my car without cracking or deformation. Enough said.

Taps into the field tested and versatile GoPro mounting ecosystem; bypassing expensive molle strap systems while maintaining utility.

The system includes two peices; a main shell and insert, designed for strength, airflow, and easy component swaps.

It\u2019s designed for open-source radio builds that need both durability and flexibility \u2014 whether you\u2019re prototyping a field-ready node, deploying off-grid connectivity, or experimenting with decentralized networks.

Built to keep powerful tech cheap, open, and fully in your hands \u2014 where it belongs.

\ud83d\udee0 Recommended Materials

\ud83d\udda8 Print Filament

Fiberon PA6-CF20 or NylonX Carbon Fiber Filament

For best results, print in carbon-fiber-reinforced nylon (PA6-CF20) for that dense, matte rigidity and heat tolerance that feels like mil-spec.

Antenna

Meshtac Flat Head Goose Neck 915 mhz center band from Rokland
Case will fit most sub gigahertz antennas on the market with a base diameter of 14mm or less.

GoPro Male Mount with \u00bc inch thread

Rubber Washers \u00bc inch thread

4 x M2.5 6mm screws

4 x M3 x 12mm Hex Socket Head Cap Screws Bolt

1 x SMA Female to U.FL IPX Coax 4 inch Cable Length

4 x M3 Heat-Set Inserts

\ud83d\udcd0 Dimensions

Height: 69.5 mm

Width: 80.5 mm

Length: 140 mm

Want help building the full node?
Grab the Haven Field Manual \u2014 a complete step-by-step guide covering setup, full assembly video tutorial, firmware installation and configuration, and deployment. Everything we've learned about these rigs has been documented there.
\ud83d\udc49 https://buildwithparallel.com/products/haven

\ud83d\udccc Recommended Projects

Parallel\u2019s Haven Build \u2013 https://buildwithparallel.com/products/haven

MorosX IP Mesh Radio \u2013 https://morosx.com

OpenMANET \u2013 https://openmanet.net/

Why Haven Exists

\u26a0 License:

CC0 1.0 Universal (Public Domain Dedication) This model is released freely for anyone to print, remix, or build upon \u2014 no attribution required.
