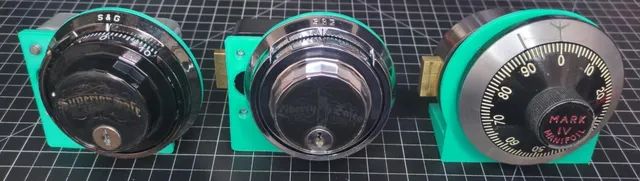

{"data":{"make":{"id":"2979969","created":"2025-11-14T04:42:03.701717+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"441","name":"Sovol SV04","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2186632","handle":"4550_2186632","verified":false,"dateVerified":null,"publicUsername":"4550","avatarFilePath":"media/auth/avatars/08/089b4f18-f892-46c3-96c3-454196a73010.jpg","badgesProfileLevel":{"profileLevel":7,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2833298","filePath":"media/comment_images/a3/64ea5d-b131-4429-9569-3f8b2165cb75/safe_combination_locks_mounted.jpeg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"S&G 6741, S&G 6731, Mark IV Manifoil","rating":null,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"511156","ratingAvg":"5.0000000000","ratingCount":1,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"511156","slug":"safe-lock-mounts-sg-la-gard-diebold-mosler-manifoi","name":"Safe lock mounts (S&G, La Gard, Diebold, Mosler, manifoil, antique)","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":1,"description":"

Smaller than commercial mounts for compactness but still big enough that the dial/body doesn't extend over the edges. The legs extend only to the edge of the lock body to make it easier to pack multiple against each other. Uses standard safe lock mounting screws.

Dial ring screw holes are modeled at 3.65mm diameter and I use 8x5/8 sheet metal screws which work great. Holes for mounting the lock body are modeled at 6.2mm diameter and fit the standard mounting screws that come with new locks.

Changes from previous version:

Included holes for older Diebold and Mosler locks. Also added horizontal holes for the La Gard 2270 keyed safe lock as the eschutcheon is 90 degrees off if there are only vertically aligned holes. Lengthened legs by 4mm for slightly better stability while not extending past the back of the lock body.

Added spacer at 1mm thick for easy scaling.

10/4/25: Added Chubb Mark IV Manifoil mount and antique safe lock mount

9/9/25: Redid mount file from scratch as old model was built on edits upon edits

","category":{"id":"50","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"50","name":"Organizers","nameEn":"Organizers","description":"Tidy up your tools and small parts and keep track of them. Print plastic storage cases, modular organizers, cable spools, drawer system, racks and more.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-10-19T23:37:23.775108+00:00","firstPublish":"2023-06-22T21:40:59.984438+00:00","datePublished":"2025-10-19T23:37:23.757609+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Smaller than commercial mounts for compactness but still big enough that the dial/body doesn't extend over the edges","likesCount":12,"makesCount":3,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":99,"displayCount":659,"filesCount":4,"privateCollectionsCount":7,"publicCollectionsCount":5,"pdfFilePath":"media/prints/511156/pdfs/511156-safe-lock-mounts-sg-la-gard-diebold-mosler-manifoil-antique-a9b3adc6-1a73-4fab-a51f-0200adcb2b5a.pdf","commentCount":3,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"3019524","filePath":"media/prints/511156/images/6478876_c1739a57-a379-47fc-bac0-d7e73677da01_8a8e915f-901b-4d19-9d06-3765c5852d48/img20240412070805.jpg","rotation":0,"imageHash":"HDkGDQL6l+E4qFl2gW+WZ/XoXH/e","imageWidth":3072,"imageHeight":4096,"__typename":"PrintImageType"},"images":[{"id":"3019524","filePath":"media/prints/511156/images/6478876_c1739a57-a379-47fc-bac0-d7e73677da01_8a8e915f-901b-4d19-9d06-3765c5852d48/img20240412070805.jpg","rotation":0,"imageHash":"HDkGDQL6l+E4qFl2gW+WZ/XoXH/e","imageWidth":3072,"imageHeight":4096,"__typename":"PrintImageType"},{"id":"1974871","filePath":"media/prints/511156/images/4142409_5bc7cbc9-15c5-43c7-8f9e-a70c0deb9b47/lockmountedfront.jpg","rotation":0,"imageHash":"WBgGFQJWe9ySyVkIelrXlKb5S5ef","imageWidth":3000,"imageHeight":4000,"__typename":"PrintImageType"},{"id":"3019525","filePath":"media/prints/511156/images/6478875_2132409d-ee8b-4931-a6fc-4bc364ee8be3_24e030a9-100c-401c-a232-43751e93768c/img20240411180255.jpg","rotation":0,"imageHash":"YDkKDQLYmIV3+Ee3iHOJZ/WoX4/5","imageWidth":3072,"imageHeight":4096,"__typename":"PrintImageType"},{"id":"3019526","filePath":"media/prints/511156/images/6478877_8f767762-bc70-46d2-b667-4991c311b0ca_ff24fb42-ea0c-47dc-b81e-1303b208fa10/img20240412070512.jpg","rotation":0,"imageHash":"XzkKDQLHmIB4yElWeGFoV/OVPk/p","imageWidth":3072,"imageHeight":4096,"__typename":"PrintImageType"},{"id":"3019527","filePath":"media/prints/511156/images/6478874_8e83938f-5bd8-4aa3-a451-6fa83a3071bc_1f62fd47-df36-4dec-854a-5c8d0a987856/img20240411180441.jpg","rotation":0,"imageHash":"XzkKFQLYl4R5+DbIaGN5eNWXX475","imageWidth":3072,"imageHeight":4096,"__typename":"PrintImageType"},{"id":"3019528","filePath":"media/prints/511156/images/6478878_8afce5ca-b711-46ae-b0b9-9d3ed0326005_e5c3a180-6da1-4a5a-874a-d73a1ea2e3a9/img20240412065913.jpg","rotation":0,"imageHash":"XzkKDQLJiJB5qEi3aHZYd/WUWz+6","imageWidth":3072,"imageHeight":4096,"__typename":"PrintImageType"},{"id":"4938029","filePath":"media/prints/7df09fbf-346d-48c8-a0d3-a6abd758de60/images/10815106_59ad162b-7da6-4a7d-9241-db5c33a6e461_42819fb8-8c4d-44ad-981d-d62099c1fba4/manifoil-mounted.jpg","rotation":0,"imageHash":"4DgODQK6p3V4+FeYeHeHd/yl/np5","imageWidth":3072,"imageHeight":4096,"__typename":"PrintImageType"},{"id":"4938030","filePath":"media/prints/6b6fa1bb-696b-44c6-83c4-6b93590b5df1/images/10815107_cb3c5261-0cee-4e51-8d64-a638307de80d_5f9f002a-3046-439f-b229-02478cd3c225/york-mounted.jpg","rotation":0,"imageHash":"3igOFQLKmHZ3+FeHiHmHZ+aYb3/5","imageWidth":3072,"imageHeight":4096,"__typename":"PrintImageType"}],"imagesCount":8,"tags":[{"name":"stand","id":"304","__typename":"TagType"},{"name":"mount","id":"469","__typename":"TagType"},{"name":"lock","id":"1091","__typename":"TagType"},{"name":"magic","id":"1727","__typename":"TagType"},{"name":"safe","id":"3244","__typename":"TagType"},{"name":"dial","id":"4662","__typename":"TagType"},{"name":"combination","id":"12839","__typename":"TagType"},{"name":"practice","id":"18956","__typename":"TagType"},{"name":"footprint","id":"22097","__typename":"TagType"},{"name":"locksport","id":"32885","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"5937516","filePreviewPath":"media/prints/70e1fc53-4a54-4b6d-8d2f-98647a96def0/previews/8328eeb1-0e61-4d8d-bd81-0378a07d5e4a.png","__typename":"STLType"},"license":{"id":"7","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"717065","handle":"Lock","verified":false,"dateVerified":null,"publicUsername":"LockManipulator","avatarFilePath":"media/auth/avatars/14/149f6174-89d3-4ff9-b577-b86741faafb9.jpg","badgesProfileLevel":{"profileLevel":19,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

Safe lock mounts (S&G, La Gard, Diebold, Mosler, manifoil, antique)

Safe lock mounts (S&G, La Gard, Diebold, Mosler, manifoil, antique)
