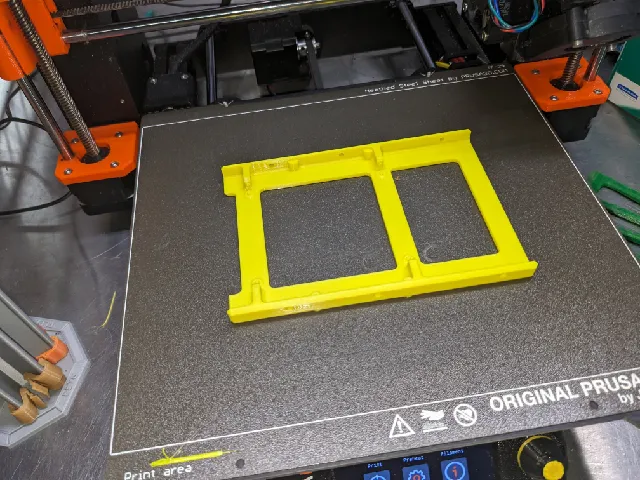

{"data":{"make":{"id":"2948881","created":"2025-11-01T16:55:58.503966+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"717","name":"Prusa MK3.5","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"38957","handle":"kaje","verified":false,"dateVerified":null,"publicUsername":"kaje","avatarFilePath":"media/auth/avatars/40/403206ca-57fc-4064-a524-8756db191b7e.png","badgesProfileLevel":{"profileLevel":22,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2805652","filePath":"media/comment_images/35/dbd759-a551-44c0-8098-8bb270d01262/pxl_20251101_085529186.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Printed nicely in PETG with 20% grid infill. I like the simple, open design. Fit my SSD perfectly.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"623591","ratingAvg":"5.0000000000","ratingCount":30,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"623591","slug":"25-to-35-ssd-hdd-bay-adapter","name":"2.5\" to 3.5\" SSD HDD Bay Adapter","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":30,"description":"

Universal 2.5\" SSD/HDD to 3.5\" HDD bay adapter.

The adapter can be attached to the 3.5\" bay using side and bottom screws
Supports side rails
Recommended to print in PETG
No supports required
V2 and V3 require no screws to attach the 2.5\" drive to the adapter
Aligns the 2.5\" drive to the center - not suitable for enclosures that have a fixed SATA connector designed for 3.5\" drives. For that purpose you can use https://www.printables.com/model/627541-25-hdd-to-35-nas-bay-adapter

Version 3 (Recommended)

The same as Version 2 it requires no screws, as the drive just clicks into the adapter and firmly stays there. This version also has chamfered bottom edges, so in some cases might be prone to warping. If that happens, try Version 2 instead.

No supports required.

Version 2

This version requires no screws to attach the drive to the adapter - it just clicks in place. This version is easier to make if your make of Version 3 tends to warp.

Requires no supports.

Version 1

Requires 4 standard motherboard/disk M3 screws with lens head to attach a drive to the adapter. The edges are filleted.

It will print fine without supports, but they can optionally be used just on baseplate (for the screw holes) and no supports for bridges.
