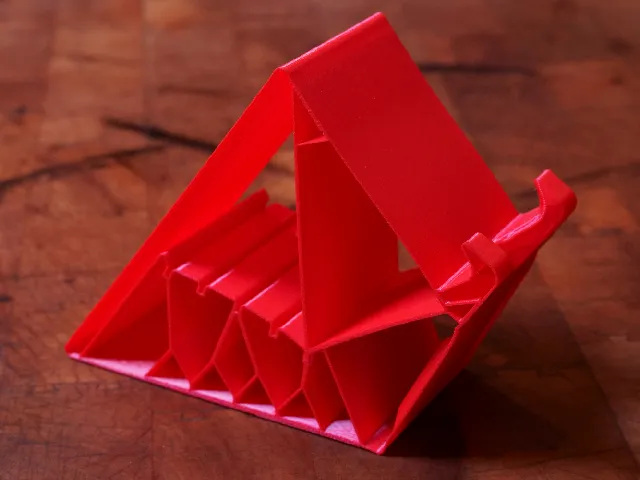

{"data":{"make":{"id":"294346","created":"2022-06-24T16:07:13.268668+00:00","edited":null,"deleted":null,"isMake":true,"printer":null,"parent":null,"author":{"id":"297987","handle":"hitchhiker4200","verified":false,"dateVerified":null,"publicUsername":"hitchhiker4200","avatarFilePath":"media/auth/avatars/8a/8a80f24e-b04d-4684-9135-c8bf7b4edbf7.jpg","badgesProfileLevel":{"profileLevel":14,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"193577","filePath":"media/comment_images/08/03c695-2eba-4689-a685-0642926b2536/dsc00912.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Love a nice spiral print I do!\n\nIt printed clean and works great!","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":0,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"175287","slug":"tcv-phone-stand","name":"TCV phone stand","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8909090909","myRating":null,"ratingCount":55,"description":"

There are so many different phone stands on the Internet, so it's hard to come up with something new, but I believe the TCV stand is unique.

It is Tiltable Comliant mechanism printed in Vase mode.

It provides 5 different positions (angles) of the phone. Printing is done in the middle position and the model is predestined to vase mode print (0.4mm nozzle). The narrow gaps in the model are just 0.05mm so make sure to set \u201cSlice gap closing radius\u201d to 0mm (otherwise the slicer will close them) and use XY compensation (for example 0.02mm) to weld these gaps correctly.

Printing !!! : (also see .3mf file)

Turn on vase mode (Print settings/Layers and perimeters/\"Spiral vase\")
set 0 bottom layers (Print settings/Layers and perimeters/\"bottom\")
No elephant foot compensation - (see the last picture)
Slice gap closing radius 0mm - (see the last picture)
use XY compensation (0.02mm) - (see the last picture)

There are 2 versions in the files. Basic \"TCV_phone_stand\" (phone thickness up to 12mm) and wider \"TCV_phone_stand_15p5mm\" for devices up to 15.5mm.

Also check out:

https://www.youtube.com/channel/UChKp-968z1i5PN29gbR7YfA

https://www.cgtrader.com/rorys3d

","category":{"id":"28","path":[{"id":"21","name":"Gadgets","nameEn":"Gadgets","description":"Everyone loves smart gadgets. Use 3D printing to make amazing items for audio, photo & video, computers, and phones. Top models are ready to download for free.","__typename":"CategoryType"},{"id":"28","name":"Portable Devices","nameEn":"Portable Devices","description":"Find accessories for iPhones and other smartphones or portable video game consoles like Nintendo Switch. Print holders, mounts and docking station.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2022-12-13T17:32:25.076948+00:00","firstPublish":"2022-04-20T20:06:34.044614+00:00","datePublished":"2022-12-13T17:32:25.004438+00:00","dateCreatedThingiverse":null,"nsfw":false,"summary":"Tiltable Compliant mechanism printed in Vase mode. All the cool stuff in one model ;). That is TCV phone stand.","likesCount":1199,"makesCount":69,"liked":null,"printDuration":"6.49","numPieces":2,"weight":"58.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.20"],"mmu":false,"materials":[{"id":"1","name":"PLA","__typename":"MaterialTypeType"}],"dateFeatured":null,"downloadCount":5451,"displayCount":28138,"filesCount":6,"privateCollectionsCount":731,"publicCollectionsCount":552,"pdfFilePath":"media/prints/175287/pdfs/175287-tcv-phone-stand-40a9030d-263b-4750-82c6-aeab702a4c64.pdf","commentCount":122,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"image":{"id":"810669","filePath":"media/prints/175287/images/1645249_610704cb-b029-48bf-a485-fbb54683f3bb/thumb2.png","rotation":0,"imageHash":"kwiGFIIPfIiAiHCXhxYIeIcAAICId4eHBw==","imageWidth":1506,"imageHeight":1125,"__typename":"PrintImageType"},"images":[{"id":"810669","filePath":"media/prints/175287/images/1645249_610704cb-b029-48bf-a485-fbb54683f3bb/thumb2.png","rotation":0,"imageHash":"kwiGFIIPfIiAiHCXhxYIeIcAAICId4eHBw==","imageWidth":1506,"imageHeight":1125,"__typename":"PrintImageType"},{"id":"810554","filePath":"media/prints/175287/images/1645116_0705128b-e444-4db7-97cf-5d6f372615c2/20220420_184344.jpg","rotation":0,"imageHash":"lxgGFwDJd4iAd4iHdXiHeIeIlgJ3+XQI","imageWidth":3088,"imageHeight":3088,"__typename":"PrintImageType"},{"id":"810556","filePath":"media/prints/175287/images/1645115_ed2be952-a60a-4d74-b158-3fc74142d9e0/20220420_184422.jpg","rotation":0,"imageHash":"lhgGDwDId4iAh3iHdoiHiHeIlwF2+HQJ","imageWidth":3088,"imageHeight":3088,"__typename":"PrintImageType"},{"id":"810562","filePath":"media/prints/175287/images/1645122_92d6bfaf-c3f5-464e-afe4-694a809e311c/20220420_184506.jpg","rotation":0,"imageHash":"VAgGFwC4h4hwiHiHdoiHiHeIlwKX+HMH","imageWidth":3088,"imageHeight":3088,"__typename":"PrintImageType"},{"id":"810558","filePath":"media/prints/175287/images/1645119_bc75cf65-7472-433b-9601-2bf6f33db2cc/20220420_184622.jpg","rotation":0,"imageHash":"0QgGJwAJ11hyhnhwjGSYh3iIiXAX+IcP","imageWidth":3088,"imageHeight":3088,"__typename":"PrintImageType"},{"id":"810555","filePath":"media/prints/175287/images/1645111_41812e9d-961e-4015-b39a-95c2015e14fe/20220420_184641.jpg","rotation":0,"imageHash":"0ggGJwAZxWp0dohwnFWXqGiIh2AX6IcP","imageWidth":3088,"imageHeight":3088,"__typename":"PrintImageType"},{"id":"810561","filePath":"media/prints/175287/images/1645117_18dba2fd-bf21-496e-9794-5c7b042b1874/20220420_184702.jpg","rotation":0,"imageHash":"0AgGJwA6lIp0d4dgrIZ4uFl3p2AH6HgP","imageWidth":3088,"imageHeight":3088,"__typename":"PrintImageType"},{"id":"810553","filePath":"media/prints/175287/images/1645113_96f39f9c-99de-41c5-b4f4-85cd390084e4/20220420_184929.jpg","rotation":0,"imageHash":"GAsKRwAPhoaudneYVrd6NpiZ9IRY0WgP","imageWidth":3088,"imageHeight":3088,"__typename":"PrintImageType"},{"id":"810557","filePath":"media/prints/175287/images/1645112_ae2ea9cc-5a81-4431-b3b5-aae6af56060e/20220420_184851.jpg","rotation":0,"imageHash":"mQoGNwD6hlWMaWVVV6R1dmiJlZ9oaX8F","imageWidth":3088,"imageHeight":3088,"__typename":"PrintImageType"},{"id":"810560","filePath":"media/prints/175287/images/1645121_198ab323-8705-479f-ba64-d21e03dfad6d/20220420_184718.jpg","rotation":0,"imageHash":"0AgGLwAYx2eCeIdwjXV3mWiJh2AY+XcO","imageWidth":3088,"imageHeight":3088,"__typename":"PrintImageType"},{"id":"810559","filePath":"media/prints/175287/images/1645114_e2cb4ac6-e0d7-45a9-b00f-75b65b55d751/20220420_184810.jpg","rotation":0,"imageHash":"0AgGJwAJ12h4dIlyixXHeJiIh4A4+XYN","imageWidth":3088,"imageHeight":3088,"__typename":"PrintImageType"},{"id":"810550","filePath":"media/prints/175287/images/1645110_ed46170b-303d-4b1c-8ab2-a1d107161dcb/tcv_phone_stand_1.png","rotation":0,"imageHash":"kfgJHoIJhnd2h4pzi4eIh3iHCXZjn8g=","imageWidth":1137,"imageHeight":894,"__typename":"PrintImageType"},{"id":"810551","filePath":"media/prints/175287/images/1645109_a0f54a73-ed96-4428-83c5-5ad0646acd56/tcv_phone_stand_2.png","rotation":0,"imageHash":"FOkJJoKKh4aniIifd6d3V3driqhfhwU=","imageWidth":1137,"imageHeight":894,"__typename":"PrintImageType"},{"id":"810549","filePath":"media/prints/175287/images/1645108_36f87a88-5081-4b39-9b2c-4ea76ae49c6f/tcv_phone_stand_3.png","rotation":0,"imageHash":"VukNLoJwd4iFaoZ2iHh3iHiHcIX2qJc=","imageWidth":1137,"imageHeight":894,"__typename":"PrintImageType"},{"id":"810595","filePath":"media/prints/175287/images/1645172_3184dea1-3972-489f-b28e-0bcf28872cfb/sliced1.png","rotation":0,"imageHash":"EggGBYA/q2RvhkiWmGmsVj988sMn","imageWidth":1436,"imageHeight":1003,"__typename":"PrintImageType"},{"id":"810593","filePath":"media/prints/175287/images/1645170_92284f8d-0b0f-4fb6-90cd-94fdfa5af54b/sliced3.png","rotation":0,"imageHash":"DQgCBoBbiabPiom7etiJxod7KvQvA8s=","imageWidth":897,"imageHeight":817,"__typename":"PrintImageType"}],"tags":[{"name":"vase","id":"26","__typename":"TagType"},{"name":"stand","id":"304","__typename":"TagType"},{"name":"phonestand","id":"1127","__typename":"TagType"},{"name":"phone","id":"2039","__typename":"TagType"},{"name":"vasemode","id":"2694","__typename":"TagType"},{"name":"mobile","id":"3964","__typename":"TagType"},{"name":"compliant","id":"5922","__typename":"TagType"},{"name":"mobilephone","id":"7985","__typename":"TagType"},{"name":"compliantmechanism","id":"17767","__typename":"TagType"},{"name":"tiltable","id":"40042","__typename":"TagType"}],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"742246","filePreviewPath":"media/prints/175287/stls/1645123_66af4089-7711-4bf4-b60a-f1fff6d8425a/tcv_phone_stand_preview.png","__typename":"STLType"},"license":{"id":"3","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"52878","handle":"rorys3D","verified":false,"dateVerified":null,"publicUsername":"rorys3D","avatarFilePath":"media/auth/avatars/9c/9ccab31f-0179-40e7-af5f-fd88a6fb4b45.png","badgesProfileLevel":{"profileLevel":26,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":true}},"unavailableModel":null,"replies":[]}}}
