Kutna Hora - Replacement Card Stands for Sliders

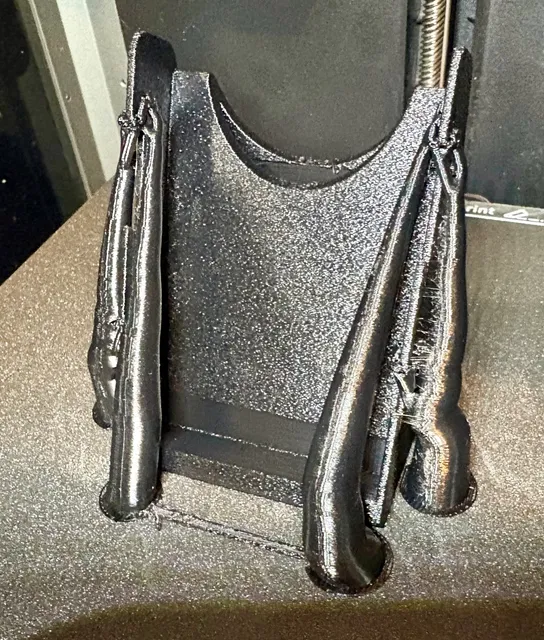

Printed with PETG. I printed them standing up as they're meant to sit on the table. Supports were only needed for the bottom parts of the slider grooves so I manually added them in Orca. I included a picture of what the supports looked like for one of them. Use Walls printing order of Outer/Inner and turn on Reverse on Even in the Overhangs section. Texture is Fuzzy Skin on the sides and Hilbert Curve top surface pattern.

I don't have my cards sleeved. So I made 2 changes.

I decreased the width when the stand is facing you, as it is in the pictures, by 2 mm. Make sure that the Uniform scaling option is OFF or you'll change the size of the slider slots. Then the sliders won't fit.

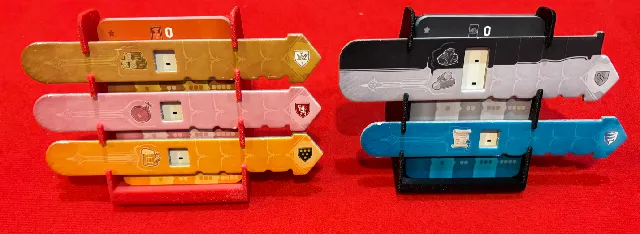

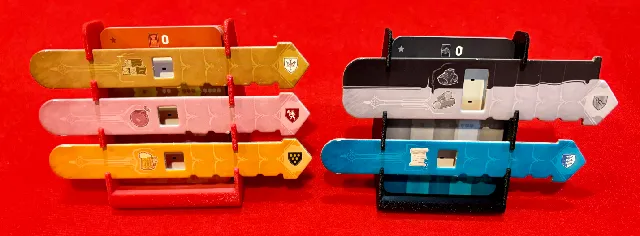

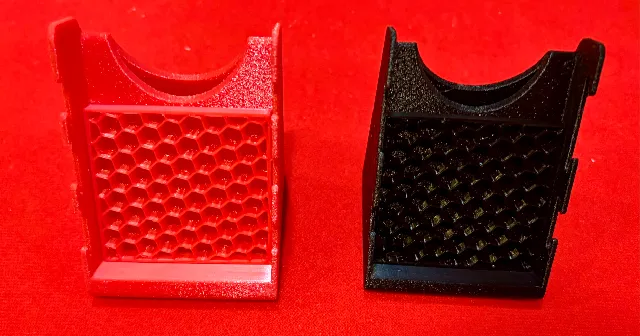

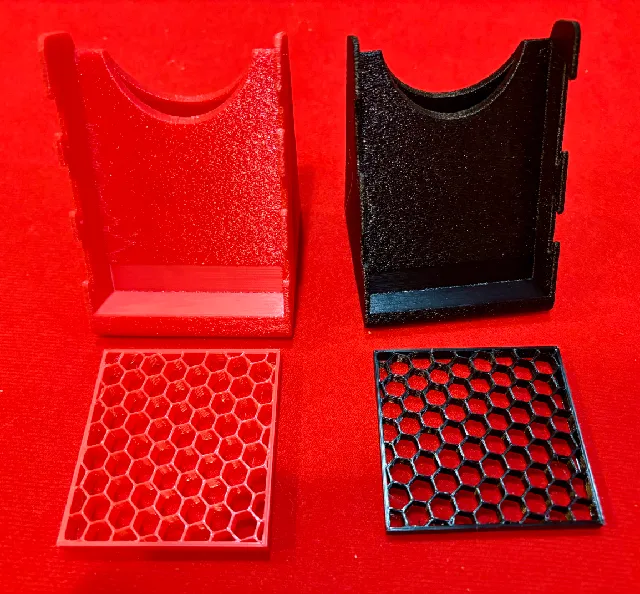

I made inserts to put behind the cards to bring them closer to the sliders which makes the numbers line up better with the windows. You'll see a picture with and without the inserts for reference. I made the inserts by adding a Primitive cube in Orca. The were 62 x 65 mm. The black one was 5 mm thick and the red one was 7 mm thick. Lay them flat on the plate. Here's how you get them to look like mine:
Top layers: 0
Bottom layers: 0
Sparse infill density: 10%
Sparse infill pattern: Honeycomb

Creality K1

Comments

Ctrl + Enter to send Enter to add a new line

Thanks for the Make!!!! The stands are designed for Sleeved cards. That brings the numbers high enough to line up with the Windows. (edited)
