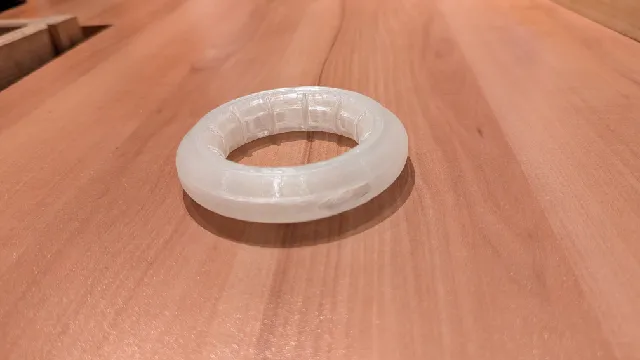

{"data":{"make":{"id":"2873232","created":"2025-09-27T05:23:46.865191+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"761","name":"Prusa CORE One / +","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"3602881","handle":"Hox_3602881","verified":false,"dateVerified":null,"publicUsername":"Hox","avatarFilePath":"","badgesProfileLevel":{"profileLevel":9,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2731860","filePath":"media/comment_images/59/418421-a20f-4cb0-adeb-0c97a6b5f45d/image_1758950442016797.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Came out well using transparent PLA. Only the bridging part of the openings for the cable turned out a bit rough, but nothing one can't fix with a bit of sanding. Rotates perfectly.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":0,"modelData":{"model":{"id":"1394215","ratingAvg":"4.6875000000","ratingCount":16,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":true,"id":"1394215","slug":"next-gen-usb-c-cable-organizer","name":"Next Gen USB-C Cable Organizer","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.6875000000","myRating":null,"ratingCount":16,"description":"

My Next Gen Cable Winder Design optimized for daily use in school. The cable is pulled out in one direction only, thus facilitating mobile use.

The winder holds 1-3m of USB-C cable, depending on the diameter. Pick the size fitting your needs. The 80\u00d720 version holds well a braided 1 m USB-C cable with \u00d85 mm. The 80\u00d724 catches up to 3 m of \u00d84 mm cable.

The Stacking Rings make it easy to stack multiple winders, keeping everything well organized.

Print in Place (both rings together) with standard slicer setup (0.4 mm nozzle, 0.2 mm layers, 2 perimeters, 15% infill). It is tempting to print with more perimeters, but experience shows then prints to fail. Reduced print temperature (-10 \u00b0C) might be helpful. The design uses a 0.35 mm gap for good printability.

PLA+ and PLA are recommended materials due to their high stiffness. More flexible materials (PETG, ASA, ABS) may be problematic and may lead to disassembly of the rings. Use at your own risk.

See also my original Next Gen Cable Winder design including more sizes, the parametric Fusion 360 source and more printing tips:

","category":{"id":"29","path":[{"id":"3","name":"Household","nameEn":"Household","description":"Marvel at these impressive interior and exterior decors. Download print-in-place items, vases of various shapes, or geometrical lamps.","__typename":"CategoryType"},{"id":"29","name":"Office","nameEn":"Office","description":"Sitting behind the desk will be more comfortable with an adjustable stand for laptop, mobile, and documents. Improve your office with a pen holder or organizer.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-12-04T09:03:48.112340+00:00","firstPublish":"2025-08-24T18:54:04.124331+00:00","datePublished":"2025-12-04T09:03:48.090062+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"A selection of my Next Gen Cable Winder sizes optimized for daily school use. The slim design fits in any backpack.","likesCount":513,"makesCount":15,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":1218,"displayCount":6869,"filesCount":7,"privateCollectionsCount":382,"publicCollectionsCount":231,"pdfFilePath":"media/prints/1394215/pdfs/1394215-next-gen-usb-c-cable-organizer-d4c7e659-0428-4bd8-af88-e0552d965bb4.pdf","commentCount":27,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"4801256","filePath":"media/prints/41fc4b84-0443-42b6-8c18-5523298d7d5f/images/10529401_d6945889-ce63-4ca1-a58e-a381fb87fd45_98682fff-96ff-4888-bc68-1eb250c69c51/20250825_095909.jpg","rotation":0,"imageHash":"ZAgOHYT4l3aIeId9hYZ3eul3r373","imageWidth":4000,"imageHeight":3000,"__typename":"PrintImageType"},"images":[{"id":"4801256","filePath":"media/prints/41fc4b84-0443-42b6-8c18-5523298d7d5f/images/10529401_d6945889-ce63-4ca1-a58e-a381fb87fd45_98682fff-96ff-4888-bc68-1eb250c69c51/20250825_095909.jpg","rotation":0,"imageHash":"ZAgOHYT4l3aIeId9hYZ3eul3r373","imageWidth":4000,"imageHeight":3000,"__typename":"PrintImageType"},{"id":"4799412","filePath":"media/prints/f6f03c99-35a0-401c-92b5-43c01cf0da8b/images/10525613_14ff4bd6-5296-41de-92be-5ea084e711f1_544c4cda-10c4-4a5f-bc0e-d8209076dd66/99078c26-74de-4176-8fd1-e912693239f1.png","rotation":0,"imageHash":"4fcJBYD2x3mId4ePh5NnjHpgn/pq","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},{"id":"4799425","filePath":"media/prints/3b13c96f-7954-4f65-8794-5cdcbc55b0bd/images/10525638_0d29be17-51c0-479c-8e29-fe65b1280016_9ab02cba-97ca-4681-9c3e-a98c9832eb0f/win_20241106_15_36_27_pro-ezgifcom-video-to-gif-converter.gif","rotation":0,"imageHash":"nxgODISgaGmamImJh4j4xPZrWQ==","imageWidth":600,"imageHeight":338,"__typename":"PrintImageType"}],"imagesCount":3,"tags":[{"name":"spool","id":"61","__typename":"TagType"},{"name":"organizer","id":"66","__typename":"TagType"},{"name":"cable","id":"172","__typename":"TagType"},{"name":"school","id":"1025","__typename":"TagType"},{"name":"printinplace","id":"1948","__typename":"TagType"},{"name":"backpack","id":"3618","__typename":"TagType"},{"name":"winder","id":"5437","__typename":"TagType"},{"name":"cableorganizer","id":"11974","__typename":"TagType"},{"name":"pip","id":"19870","__typename":"TagType"},{"name":"cablewinder","id":"35481","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"5874972","filePreviewPath":"media/prints/c729e42c-cbc1-466e-ad2b-e35cf5ec2329/previews/2f24ff86-19c0-4d83-87da-e6a09ba0b437.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"567871","modelId":"1037051","modelName":"Next Gen USB (and more) Cable Winder / Organizer (Print-in-Place, Multiple Sizes, Stackable)","modelAuthor":{"id":"144329","handle":"mrusk","verified":false,"publicUsername":"mrusk","__typename":"UserType"},"model":{"id":"1037051","name":"Next Gen USB (and more) Cable Winder / Organizer (Print-in-Place, Multiple Sizes, Stackable)","slug":"next-gen-usb-and-more-cable-winder-organizer-print","datePublished":"2025-12-04T09:05:14.076774+00:00","image":{"id":"3643315","filePath":"media/prints/1037051/images/7873752_ab732dd1-3b6d-48ab-8305-58c66d778a57_4156c77a-7788-407d-96c6-7865f0aeadc7/dsc08490.jpg","rotation":0,"imageHash":"YAgODYD3qId5eHiPd5V4ifqpuvyK","imageWidth":4315,"imageHeight":2883,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Selection of models for daily school use
