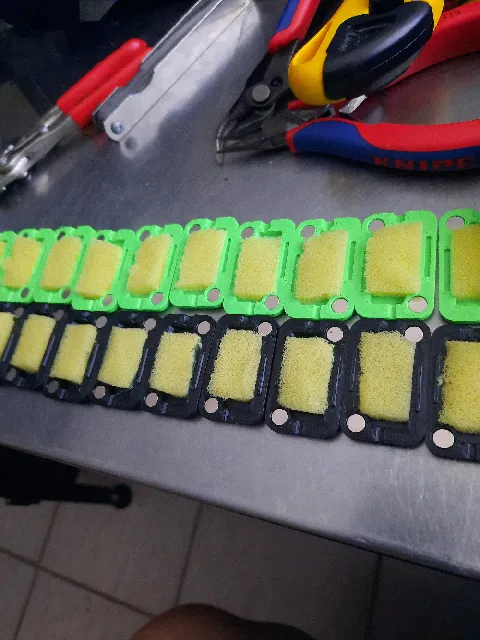

{"data":{"make":{"id":"286738","created":"2022-06-16T09:46:38.697472+00:00","edited":null,"deleted":null,"isMake":true,"printer":null,"parent":null,"author":{"id":"208447","handle":"Heisenberg19x","verified":false,"dateVerified":null,"publicUsername":"Heisenberg19x","avatarFilePath":"media/auth/avatars/5d/5dc7970c-6abc-4301-b1ef-cfe5deab380f.jpg","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"187076","filePath":"media/comment_images/02/1c88ac-3646-42b0-ad64-801b6aaf1063/20220612_133303.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"After having a clog due to dusty Filament i printed a Set for all my Dryboxes and Printers","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"68486","slug":"qadfc-quick-and-dirty-filament-cleaner","name":"QaDFC - Quick and Dirty Filament Cleaner","authorship":null,"club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":6,"description":"

Description:

Yet another simple Filament cleaner, that snaps together with four 6x3mm magnets.
Nothing special, but i got somewhat annoyed by my current hinged one, when switching through filaments in quick succession.

Of course i could have searched for some existing solution, but wheres the fun in that?
Also i needed a use case for those magnets anyway. ;-) So i \u201cthrew\u201d this together and printed it all in all in under 1.5hrs - hence the \"QaD\" nickname.

Can also be used for oiling in case some material likes it.

Fits to a PTFE Tube on one side.
If interested, i'll add one with PTFE mounts on both sides.

Printing:

Just print with 0.2mm Profiles
Set Perimeters to 3
Top/Bottom Layers 5

Post Processing:

If needed give it a slice with a file on the contacting surfaces

Insert four magnets on the corners, and make sure the orientation is correct.
Mine did fit snuggly tight, but i placed a small drop of superglue, just in case.

Cut some Sponge or Makeup pad into two pieces of 15*30*~3,5mm, and trim two oposite corners, where the magnets are.

Done

","category":{"id":"40","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"40","name":"Accessories","nameEn":"Accessories","description":"Add cool improvements to your 3D printer - drybox, filament buffer, or extruder visualizer. These smart ideas will make your printer even better!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2021-06-04T21:14:48.371821+00:00","firstPublish":"2021-06-04T21:01:24.132675+00:00","datePublished":"2021-06-04T21:01:24.132675+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"summary":"Yet another simple Filament cleaner with magnetic fixation","likesCount":51,"makesCount":8,"liked":null,"printDuration":"0.58","numPieces":1,"weight":"5.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.20"],"mmu":false,"materials":[{"id":"1","name":"PLA","__typename":"MaterialTypeType"}],"dateFeatured":null,"downloadCount":204,"displayCount":1256,"filesCount":3,"privateCollectionsCount":54,"publicCollectionsCount":49,"pdfFilePath":"media/prints/68486/pdfs/68486-qadfc-quick-and-dirty-filament-cleaner-40f32b13-7344-4761-8a91-4466586bdedd.pdf","commentCount":12,"userGcodeCount":0,"remixCount":2,"canBeRated":false,"addMakePermission":null,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"image":{"id":"393141","filePath":"media/prints/68486/images/748814_53780a3e-0f59-4268-9639-cbed0792ff89/filament-cleaner-render.png","rotation":0,"imageHash":"DgiCA4AkaKiGqF/y0i4v7RVpaKiAfIk=","imageWidth":2560,"imageHeight":1440,"__typename":"PrintImageType"},"images":[{"id":"393141","filePath":"media/prints/68486/images/748814_53780a3e-0f59-4268-9639-cbed0792ff89/filament-cleaner-render.png","rotation":0,"imageHash":"DgiCA4AkaKiGqF/y0i4v7RVpaKiAfIk=","imageWidth":2560,"imageHeight":1440,"__typename":"PrintImageType"},{"id":"393138","filePath":"media/prints/68486/images/748807_b5fb3f27-557c-486f-b14c-e609d95ca450/filament-cleaner-1.png","rotation":0,"imageHash":"GikOJYYfhZeHmHiEemeHeT+J95Wo","imageWidth":1114,"imageHeight":742,"__typename":"PrintImageType"},{"id":"393139","filePath":"media/prints/68486/images/748808_c842d6b6-5235-495f-afba-10288b9786c0/filament-cleaner-2.png","rotation":0,"imageHash":"XikOFYTQiXh/lnhaZWdYmNC0Bx1s","imageWidth":1685,"imageHeight":1186,"__typename":"PrintImageType"}],"tags":[{"name":"filament","id":"303","__typename":"TagType"},{"name":"3dprinting","id":"692","__typename":"TagType"},{"name":"cleaner","id":"5590","__typename":"TagType"},{"name":"addon","id":"21566","__typename":"TagType"}],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"301873","filePreviewPath":"media/prints/68486/stls/748803_1702e461-932b-4752-9c30-eafd0390c638/filament-cleaner-bottom_preview.png","__typename":"STLType"},"license":{"id":"3","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"73603","handle":"INSOMNIAC","verified":false,"dateVerified":null,"publicUsername":"-INSOMNIAC-","avatarFilePath":"media/auth/avatars/2b/2b1f3040-082d-4c1e-97c6-26f027b70795.png","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
