Print one of each file.

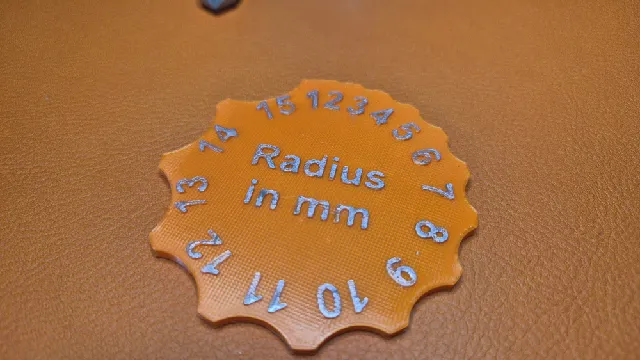

-Small Gauge(1mm-15mm)

-Medium Gauge (16mm-23mm)

-Large Gauge (24mm-30mm)

-X Large Gauge (31mm-36mm)

-Tray

The storage tray is built slightly taller than necessary to accommodate a non-slip mat or toolbox drawer liner.

EDIT 4/7/24: Added X Large (31-36) by request. Added DXF File to laser cut a mat or liner for the gauge tray. Added print files for MK4 in PLA and PETG.
