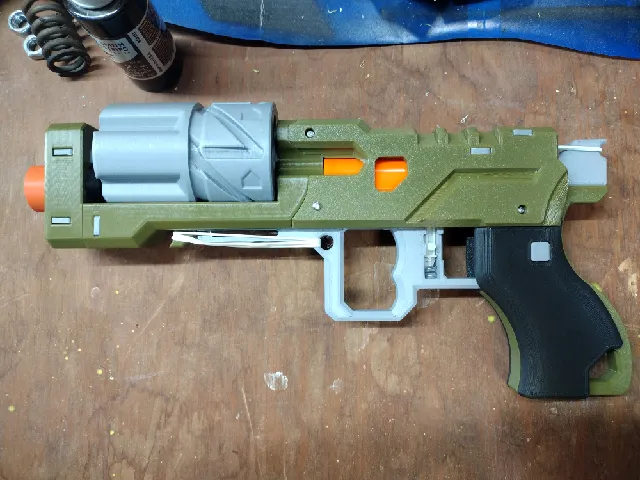

{"data":{"make":{"id":"2808397","created":"2025-08-23T00:33:21.326303+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"94928","handle":"onus","verified":false,"dateVerified":null,"publicUsername":"onus","avatarFilePath":"media/auth/avatars/c9/c90bfa50-2d44-43a5-8656-60ddd0ea6cd5.png","badgesProfileLevel":{"profileLevel":23,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2667696","filePath":"media/comment_images/d4/6c2d46-7957-4e15-859a-3aa5385dbc42/img_20250822_191341945.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"so cool. \n\nhad a little trouble with it \nthe pin bent so i replaced it with an aluminum one... but now i cannot freely spin the cylinder which makes loading a little tricky. \n\nbut it actually works reliability this way.\n\ni may have to reprint the pin @ 100% infill\n\nthe only other quirk ive noticed is that the first round out has a bit less fps. and the blaster overall shoots lower than i expect. but I'll get use to it with more practice. i so enjoy not having to cock before every shot! fantastic!","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"1270002","ratingAvg":"5.0000000000","ratingCount":27,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"1270002","slug":"x-shot-micro-20-reshell-3-revolver-double-action-v","name":"X-Shot Micro 2.0 Reshell 3 - Revolver Double Action v1.0","authorship":"author","club":false,"excludeCommercialUsage":false,"price":"6.00","eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":27,"description":"

This is a shell for the X-Shot Micro 2.0, the newest tiny blaster variant from X-Shot/Zuru. All the hardware you need is already provided by this Micro, too. (Well, except for a few common household rubberbands and possibly some crafting foam or a mega dart for the seal.) You just need to print the parts in the colors of your chosing and you're good to go to take a screwdriver to the blaster.

This one comes with a 5-chamber cylinder. Each chamber can hold 2 half darts as an inline clip, giving you a total of 10 shots. You can also put 5 full-length darts in there, if you want. They're compatible~
No flicking is necessary to chamber the darts, thanks to Corvus. He made that design possible~

As secondary feature this blaster comes with a double-action trigger; meaning you prime and fire the blaster with the same two-finger pull.

---

Reviews

https://www.youtube.com/watch?v=15PjfpZdd64 \u2190 Talonaxe Armory had a quick look at it!

https://www.youtube.com/watch?v=kxoiWH-FEgc <- BruceLeedleLeedleLee had opinions on it as well!

https://www.youtube.com/watch?v=zmkBGclk8ec \u2190 XFoxGames has a quick look at it, and can make these for you if you're in the US, too!

---

Makers

https://3dprintopia3d.etsy.com/listing/1906453677/x-shot-micro-20-reshell-3-revolver-by <- 3DPrintopia can make these for you, if you're in the US!
https://3dprintopia3d.etsy.com/listing/1892277956/x-shot-micro-20-reshell-3-revolver-parts <- They also offer parts kits.

https://xfoxgames.etsy.com/listing/1905843083/gencomegawerks-xshot-micro-blaster \u2190 The same goes for XFoxGames, in a different part of the US!

https://xfoxgames.etsy.com/listing/1891665104/3d-printed-parts-gencomegawerks-xshot \u2190 They too have parts kits.

---

Printing

All parts can be printed on a bed of 180mm edge length, if I didn't mess this up. Some supports will be required, but everything should already be in its proper orientation. I tend to print with 4 walls and 10% cubic infill. The alternate plunger might need more.

The assembly instructions can be found here -> https://wildwestscifi.net/x-shot-micro-2-0-reshell-3-revolver-double-action-assembly-instructions

---

Changelog:
v1.0 - Initial Release

","category":{"id":"34","path":[{"id":"30","name":"Toys & Games","nameEn":"Toys & Games","description":"Idle hands are the devil's playgrou\u00adnd. Make yourself and your kids busy with some cool 3D printed games. Print items for both indoor and outdoor play.","__typename":"CategoryType"},{"id":"34","name":"Outdoor Toys","nameEn":"Outdoor Toys","description":"Go outside with printed toys like 3D-printed pull copter, slingshot, toy gun, frisbee, sand play set, boat, flying wing, plane, or rocket.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-04-22T14:26:57.099098+00:00","firstPublish":"2025-04-19T13:30:04.485116+00:00","datePublished":"2025-04-22T14:26:57.076690+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"A X-Shot Micro 2 reshell that turns the blaster into a double-action revolver with 10 shots.","likesCount":171,"makesCount":26,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":null,"displayCount":4743,"filesCount":24,"privateCollectionsCount":107,"publicCollectionsCount":69,"pdfFilePath":null,"commentCount":60,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"4362863","filePath":"media/prints/b8a30c1b-3b04-46ca-90f4-23af8df6ab5e/images/9539432_df9012e6-cffb-468b-9c19-f628b80bf5e7_08f0ea29-62f6-44a3-9390-a481aede9476/micro-20-reshell-3-revolver-b8-v14.png","rotation":0,"imageHash":"tggKE4K0+Jy1SudpFF9D8UQ=","imageWidth":1920,"imageHeight":940,"__typename":"PrintImageType"},"images":[{"id":"4362863","filePath":"media/prints/b8a30c1b-3b04-46ca-90f4-23af8df6ab5e/images/9539432_df9012e6-cffb-468b-9c19-f628b80bf5e7_08f0ea29-62f6-44a3-9390-a481aede9476/micro-20-reshell-3-revolver-b8-v14.png","rotation":0,"imageHash":"tggKE4K0+Jy1SudpFF9D8UQ=","imageWidth":1920,"imageHeight":940,"__typename":"PrintImageType"},{"id":"4362867","filePath":"media/prints/1c63127c-87f4-4b8a-a4a1-37b9d52885f3/images/9539436_84c549db-b6aa-44cd-9839-cbccd9dc5780_bb7ee8e2-632e-4ba5-abce-aeb4e8fb0df2/micro-20-reshell-3-revolver-b7-v38.png","rotation":0,"imageHash":"swgKFIKm2LqUaXifZzwzXzPzNQ==","imageWidth":1072,"imageHeight":597,"__typename":"PrintImageType"},{"id":"4362862","filePath":"media/prints/333d2a7a-9ff5-4c7a-af5d-ad06b93a71a4/images/9539431_98b0bc8c-d552-4cc6-bb60-5d9331a12f56_21d2638b-3182-4411-8b8d-3ef1759ea9f4/micro-20-reshell-3-revolver-b8-v14b.png","rotation":0,"imageHash":"cwgOE4LYp3iGePdIGomgkQg=","imageWidth":1920,"imageHeight":940,"__typename":"PrintImageType"},{"id":"4362869","filePath":"media/prints/c75ceb7c-d88a-4749-a02c-1183c31af275/images/9539438_9d7e4562-6d66-4c6c-837e-ccee75c91e17_9ebe531c-be88-4855-9ed8-b65bfd6c7596/micro-20-reshell-3-revolver-b8-v5c.png","rotation":0,"imageHash":"sggKFIKd6tQGnKhupb9Kv6T0Ww==","imageWidth":1408,"imageHeight":812,"__typename":"PrintImageType"},{"id":"4362864","filePath":"media/prints/c1873f76-14d6-4869-a055-7f99ac48e4e0/images/9539433_2df590b1-f4ca-47d5-a36b-c287ef813353_7feafe83-76f6-48b9-aed1-1d4a73553e5d/micro-20-reshell-3-revolver-b8-v14c.png","rotation":0,"imageHash":"sigSG4a3uYiGefdXNXtgswc=","imageWidth":1920,"imageHeight":940,"__typename":"PrintImageType"},{"id":"4362865","filePath":"media/prints/b77c79ac-eb9c-4d4a-84db-33d637382011/images/9539434_ecb875c5-d377-460a-9171-f72f5cd4ee6c_2e95ed43-34f4-4d47-ba35-affa8fd6c001/micro-20-reshell-3-revolver-b8-v14d.png","rotation":0,"imageHash":"cggKC4DY94jDOchZhD9A+AM=","imageWidth":1920,"imageHeight":940,"__typename":"PrintImageType"},{"id":"4362866","filePath":"media/prints/2f5ed1a2-6385-401d-b04c-17e0df9ef23a/images/9539435_30230d48-097f-489b-8e33-8230373e83cb_7eace62d-f4b1-4247-ac78-6d2bb6c3ec18/micro-20-reshell-3-revolver-b8-v5b.png","rotation":0,"imageHash":"7ygSG4SvV5eHeJhnILVIUFo=","imageWidth":1920,"imageHeight":940,"__typename":"PrintImageType"},{"id":"4362868","filePath":"media/prints/fc487903-9509-4c77-a627-495be707ae2a/images/9539437_b34f3a52-8e16-441b-b8e1-3d7f3abbb997_ef48d368-e379-4273-ad8c-0e17e11e9ff3/micro-20-reshell-3-revolver-b8-v0.png","rotation":0,"imageHash":"sBgOE4TBZXmLhfh6KXDnygc=","imageWidth":1920,"imageHeight":940,"__typename":"PrintImageType"}],"imagesCount":8,"tags":[{"name":"toy","id":"9","__typename":"TagType"},{"name":"blaster","id":"639","__typename":"TagType"},{"name":"nerf","id":"2103","__typename":"TagType"},{"name":"reshell","id":"19007","__typename":"TagType"},{"name":"xshot","id":"53144","__typename":"TagType"},{"name":"halfdart","id":"99346","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"5295968","filePreviewPath":"media/prints/0c9cafda-3675-478f-8ba2-57d6e225e976/previews/763e27b6fddb236e64cf68f3a187d0247bb735e2.png","__typename":"STLType"},"license":{"id":"13","disallowRemixing":true,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","user":{"id":"3022795","handle":"Domochevsky_3022795","verified":false,"dateVerified":null,"publicUsername":"Domochevsky","avatarFilePath":"media/auth/avatars/c3/c3f138b3-8be7-44d1-b368-c5e846d39575.png","badgesProfileLevel":{"profileLevel":9,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

X-Shot Micro 2.0 Reshell 3 - Revolver Double Action v1.0

X-Shot Micro 2.0 Reshell 3 - Revolver Double Action v1.0
