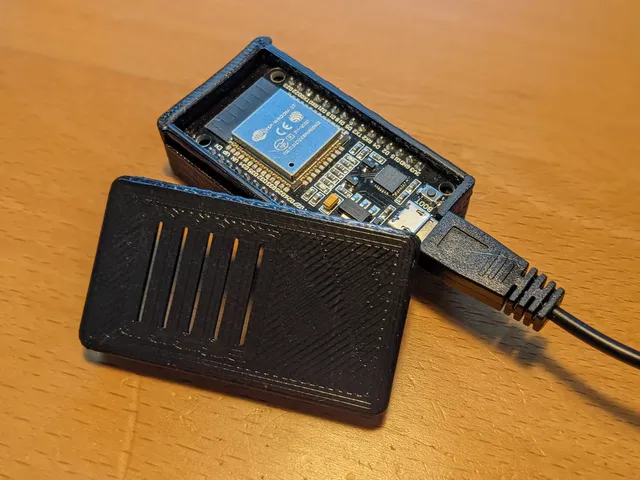

{"data":{"make":{"id":"276922","created":"2022-06-06T16:24:54.777576+00:00","edited":null,"deleted":null,"isMake":true,"printer":null,"parent":null,"author":{"id":"194580","handle":"MakerMeik","verified":false,"dateVerified":null,"publicUsername":"MakerMeik","avatarFilePath":"media/auth/avatars/19/19f787a6-ea7f-43e3-8364-c01dd0a33dcc.png","badgesProfileLevel":{"profileLevel":16,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"178865","filePath":"media/comment_images/e6/d8b929-7cda-42c2-a296-b13fb94661ad/pxl_20220603_084810685portrait.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"I really like your design. However, being an Espresense, the ESP32 gets very warm, so I added vents and made a remix of it. Thanks for sharing the Freecad files.","rating":4,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"196707","ratingAvg":"4.9285714286","ratingCount":14,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"196707","slug":"esp32-devkit-case","name":"ESP32-Devkit case","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9285714286","myRating":null,"ratingCount":14,"description":"

I'm using these esp32-devkit boards as ESPresense sensors: https://www.amazon.co.uk/gp/product/B08LGNV6V6

I just wanted a box I could put them in so I didn't have bare electronics around the house, and I couldn't be bothered ordering some without header pins. At the moment I'm just taping them to the back of old phone chargers and plugging them into the mains.

The box lets you get at the USB port (obviously, for power) but you need to take the lid off to get to the reset button. Some chargers have plugs that are slim enough to do this but others don't. I've not yet had a problem which needed me to fix that.

To pre-empt commentary: yes, these cases have no ventilation. In my use case they get slightly warm to the touch, but nowhere near hot enough for me to worry about the plastic or the electronics. ESPresense barely makes them break a sweat.

These cases are a tight enough fit for the boards that they don't need any fixtures. The slide-fit lid keeps things in place.
