Simple junction box for reolink cameras RLC-1224A and RLC-520A (with included adapter).

Square hole at the bottom easily fits crimped rj45 connectors so you can prepare them before installation of the junction box.

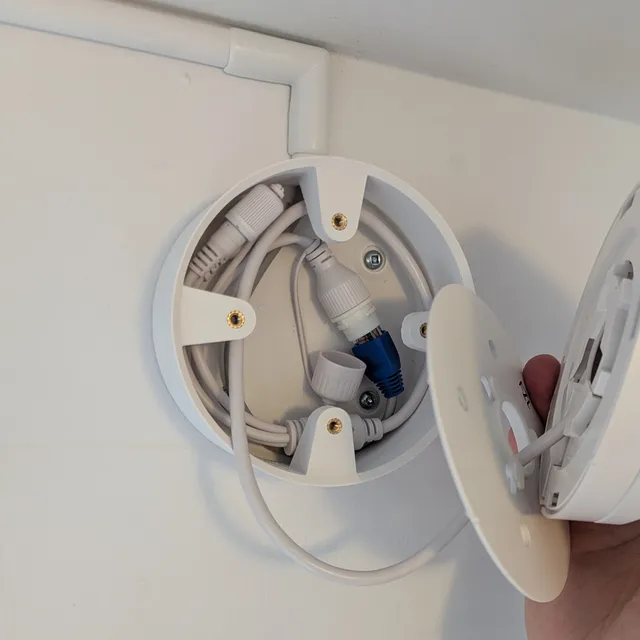

I've attached the box to the wooden soffit using 4 screws and made a little slope around them so that they are more flush and won't be a problem with pushing the cables inside

M4 screws fit nicely inside the metal mounting plate that comes with cameras, so I've used standard M4 hex nuts and inserted them during the print. You may need to cut out the leftover plastic that covers the nuts as I've designed it to not use any supports. I guess threaded inserts will also work great and may even be a better option, I just didn't have any lying around.

All the Fusion and step files are also included, so feel free to modify the model to your needs and make sure to share the results ;)
