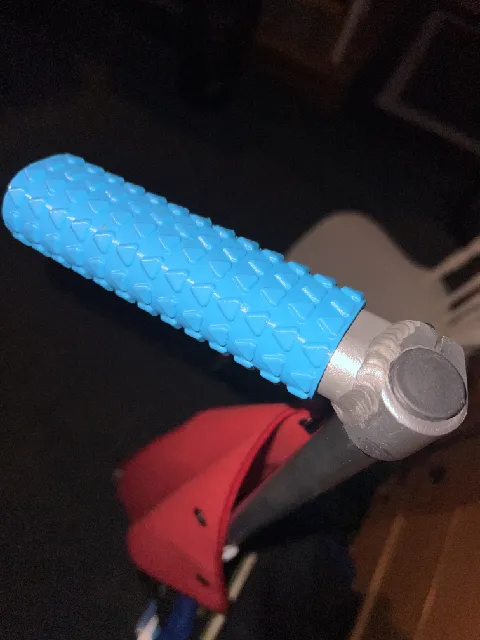

{"data":{"make":{"id":"2700554","created":"2025-06-26T02:12:09.718278+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1246491","handle":"IAMASUPERSAN_1246491","verified":false,"dateVerified":null,"publicUsername":"IAMASUPERSANDWICH","avatarFilePath":"media/auth/535f50a8-7b6d-4c5c-b742-6bad1deb1f85.jpg","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2562918","filePath":"media/comment_images/dd/102199-acf8-4e75-a777-eca9646e2f2c/zuca_cart_handle.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Very nice print. \nprinted without supports with the tip of the triangles facing the build plate.\nPrinted in PETG from Sunlu. \n\nTo be able to get the grip on:\n1) first remove the black stopper on end of metal handle. \n2) Use a hex key to remove the metal handle from the cart.\n3) put metal handle into a freezer for 1.5 hours - this will cause the metal to shrink.\n4) Take handle out and put grip on.\n5) Re-insert rubber stopper to the end of the metal handle.\n\nThe metal handle will re-expand when coming back to room temp and you will have a grip that will never move - without the use of adhesives.","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"706654","ratingAvg":"4.8000000000","ratingCount":5,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"706654","slug":"zuca-cart-handle-grips","name":"Zuca Cart Handle Grips","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8000000000","myRating":null,"ratingCount":5,"description":"

Unsatisfied with the current state of grips for Zuca cart, I've decided to create my own that forgoes the need of any set screws/adhesive/tape and solely relies on an extremely snug fit but with the ability to be somewhat removed.

I've provided an Onshape link and a fusion360 file so you may also create your own patterns/designs.

This model is optimized for 0.6 mm nozzles with a line width of 0.72mm.

TPU is the preferred filament. Depending on the grip pattern there may be mild overhangs, with a tuned printer and dry filament they print quite easy and shouldn't cause too many problems.

Printing Parameters:

Layer Height: 0.20mm
Top/bottom Layers: 4
Perimeters: 2 (textured models)
- 3 (Blank)
Infill: Concentric (textured)
Avoid Crossing Perimeters: Yes
Fuzzy Skin can be enabled for the blank model

","category":{"id":"85","path":[{"id":"9","name":"Sports & Outdoor","nameEn":"Sports & Outdoor","description":"For sports enthusiasts and professionals alike this collection offers printed equipment for all kinds of sports and leisure activities, both summer and winter.","__typename":"CategoryType"},{"id":"85","name":"Other Sports","nameEn":"Other Sports","description":"There are many other sports and amusements. Explore this collection and download a cartridge or airsoft pistol holder. A survival whistle can also be handy.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-01-04T18:16:26.658196+00:00","firstPublish":"2024-01-04T18:16:26.623121+00:00","datePublished":"2024-01-04T18:16:26.626378+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Various grips for Zuca Disc golf carts that are very snug so no need for set screws/adhesive/tape","likesCount":21,"makesCount":5,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":380,"displayCount":1152,"filesCount":6,"privateCollectionsCount":19,"publicCollectionsCount":24,"pdfFilePath":"media/prints/706654/pdfs/706654-zuca-cart-handle-grips-11bee7b4-0871-4007-8f19-2c9ad385c135.pdf","commentCount":5,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"2599876","filePath":"media/prints/706654/images/5544608_59b16722-5de3-46c8-b81c-f09e7ec8c4df_39039535-f4d2-4e2e-a86b-7327dab4fa1f/20240104_125926.jpg","rotation":0,"imageHash":"IAgODID2x4iGeHd+hYjogOwOyA==","imageWidth":2937,"imageHeight":1848,"__typename":"PrintImageType"},"images":[{"id":"2599876","filePath":"media/prints/706654/images/5544608_59b16722-5de3-46c8-b81c-f09e7ec8c4df_39039535-f4d2-4e2e-a86b-7327dab4fa1f/20240104_125926.jpg","rotation":0,"imageHash":"IAgODID2x4iGeHd+hYjogOwOyA==","imageWidth":2937,"imageHeight":1848,"__typename":"PrintImageType"},{"id":"2599871","filePath":"media/prints/706654/images/5544612_1b8225fb-e6ff-4c39-82ee-e147e22904a5_e994d3aa-70f6-4c78-ab0e-5b3e4739d353/20240104_130250.jpg","rotation":0,"imageHash":"KAgKDYDGmnaZd5dvpeZHlrpwtgpn","imageWidth":1847,"imageHeight":1261,"__typename":"PrintImageType"},{"id":"2599875","filePath":"media/prints/706654/images/5544609_45e92820-a69b-47c3-9e18-c9f0f4225f6f_787b76b8-475c-4ddb-8bea-0370c38520b7/20240104_130032.jpg","rotation":0,"imageHash":"KggKDgD5GXaJd7hYp3iHeoZ35GCJDJc=","imageWidth":1848,"imageHeight":2074,"__typename":"PrintImageType"},{"id":"2599874","filePath":"media/prints/706654/images/5544610_74dcde74-a61b-42c1-b8bf-624711718bd2_f2aa1e8d-9b03-4ac1-9bf5-b0d1ac55bc15/20240104_130108.jpg","rotation":0,"imageHash":"LAgODgD5F3mId7hXmHiHeYaH02CIC4c=","imageWidth":1848,"imageHeight":2106,"__typename":"PrintImageType"},{"id":"2599872","filePath":"media/prints/706654/images/5544607_737255c7-f46e-44e1-aa5c-0931527f8ebc_234cb780-5300-4972-94c8-63d79070b61e/20240104_130057.jpg","rotation":0,"imageHash":"KQgODwD6FrmXeId6hYmHmGd4GA+FyGAI","imageWidth":1848,"imageHeight":1903,"__typename":"PrintImageType"},{"id":"2599873","filePath":"media/prints/706654/images/5544613_fb1dc683-3cfe-4925-84f8-dcff27a68ce1_9fa54bca-7c49-4531-a226-b7415f619f46/20240104_130129.jpg","rotation":0,"imageHash":"LAgKDwD5CsWYh4eLdYp3l2h4WAyHqXAI","imageWidth":1848,"imageHeight":1889,"__typename":"PrintImageType"},{"id":"2599877","filePath":"media/prints/706654/images/5544611_7c6a7264-02cc-476d-98ea-4c172c4ca7a0_df379fc5-0d86-4906-981c-8342e6c06d9a/20240104_130502.jpg","rotation":0,"imageHash":"I/gNDgD26Yl4l8hYZ4h4i4aXyYDKCrg=","imageWidth":1405,"imageHeight":1665,"__typename":"PrintImageType"}],"imagesCount":7,"tags":[{"name":"grip","id":"259","__typename":"TagType"},{"name":"tpu","id":"1979","__typename":"TagType"},{"name":"handlegrip","id":"4404","__typename":"TagType"},{"name":"disc","id":"7880","__typename":"TagType"},{"name":"discgolf","id":"23708","__typename":"TagType"},{"name":"zuca","id":"79965","__typename":"TagType"},{"name":"zucacart","id":"79966","__typename":"TagType"},{"name":"zucadiscgolf","id":"117430","__typename":"TagType"},{"name":"zucagrip","id":"189747","__typename":"TagType"},{"name":"zucahandle","id":"189748","__typename":"TagType"},{"name":"zucahandlegrip","id":"189749","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"2975480","filePreviewPath":"media/prints/706654/stls/5544562_38cab58c-9aab-4dac-9f21-94cdbf742f52_8b0f405e-29ee-43a3-bd12-9b0e27bb1854/blank_preview.png","__typename":"STLType"},"license":{"id":"7","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"903143","handle":"Eximyes_903143","verified":false,"dateVerified":null,"publicUsername":"Eximyes","avatarFilePath":"","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
