Zusammen mit dem Designer @MeisterEdel habe ich dieses Testmodel mit meinem Logo entwickelt. Es testet euren 3D Drucker in Bezug auf Toleranz (inkl. Gewinde), Bridging, Ma\u00dfhaltigkeit, Wandqualit\u00e4t und Oberfl\u00e4chenqualit\u00e4t.

Es gibt zwei Versionen. Eine wird mit St\u00fctzstrukturen und eine ohne gedruckt. So k\u00f6nnt ihr z.B. testen, wie gut Supports auf Fl\u00e4chen, \u00dcberh\u00e4ngen und filigranen Stellen haften.

Dabei k\u00f6nnt ihr die Standardprofile (0,4mm D\u00fcse, 0,2mm Schichth\u00f6he) in eurem Slicer nutzen.

Der Test funktioniert prinzipiell mit allen Materialien, die besten Ergebnisse habe ich mit PLA-CF erzielt.

Der spielerische Aspekt besteht darin, alle \u201cM's\u201d zu befreien. Diese verstecken sich hinter Klappen, in eingeschraubten Zylindern oder ganz simpel auf Fl\u00e4chen. Habt ihr alle \u201cM's\u201d gefunden? Dann postet euren Make und zeigt es mir!

Das passende Werkzeug wird gleich mit ausgedruckt. Wenn euer 3D Drucker die Gewinde und Klappen mit dem Werkzeug \u00f6ffnen kann, gibt es Extra-Punkte. Falls das nicht klappt, k\u00f6nnt ihr aber auch einen Schlitzschraubendreher aus Metall verwenden (Gewalt ist bei unpr\u00e4zisen Druckern vielleicht die L\u00f6sung).

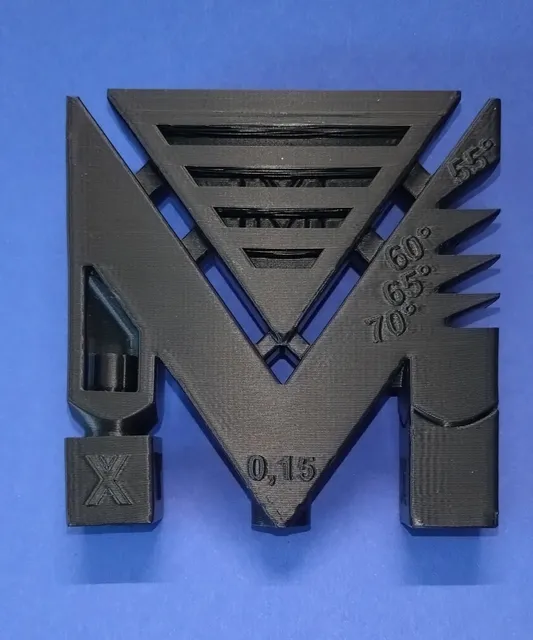

Alle Tests im \u00dcberblick:

Wandst\u00e4rke/Fluss | Oberer Teil wird mit einer bzw. zwei 0,45mm starken W\u00e4nden gedruckt
Ma\u00dfhaltigkeit | 70mm Abstand oben und ein 18mm W\u00fcrfel unten
Br\u00fccken | Im Dreieck befinden sich unterschiedlich lange Br\u00fccken. Schafft dein Drucker die 50mm? Nutze das Werkzeug um die Layerhaftung zu checken!
Toleranz | Im Modell sind diverse Toleranztests (0,1-0,25mm) untergebracht. Dazu z\u00e4hlen simple Freidrehtests, eine Klappe (die sollte jeder Drucker schaffen!) und komplexe Gewinde. In das Loch rechts kann ein Filamentstrang eingeschoben werden. Na? Ploppt was raus? Oder haben wir vielleicht ein wenig \u00dcberextrusion?
Wandqualit\u00e4t | Wir haben bewusst einen gr\u00f6\u00dferen Test designed. So k\u00f6nnen W\u00e4nde, VFA's usw. gecheckt werden.
Oberfl\u00e4chenqualit\u00e4t | Am Werkzeug kann man gut \u00fcberpr\u00fcfen, ob euer 3D Drucker Oberfl\u00e4chen komplett f\u00fcllt. Das eingelassene \u201cM\u201d macht das ganze etwas komplexer.
Multimaterial | Auch wenn der Test einfarbig gedruckt werden kann, ist auch Multimaterial bzw. Multicolor m\u00f6glich. So k\u00f6nnt ihr z.B. Filamentwechsel oder bei Toolchangern, IDEX oder Dualnozzle Druckern die Pr\u00e4zision bzw. den Versatz pr\u00fcfen.
\u00dcberh\u00e4nge | Es sind diverse \u00dcberh\u00e4nge eingebaut. Allerdings w\u00fcrde ich empfehlen, \u00dcberh\u00e4nge immer mit gr\u00f6\u00dferen Fl\u00e4chen zu testen. Seht die \u00dcberh\u00e4nge also als Gimmick!

Achja! Ein Halter zum Aufh\u00e4ngen ist auch mit dran. H\u00e4ngt das Teil also bei eurem n\u00e4chsten Formnext, Makerfaire oder 3D Druckertreffen an euren Rucksack. Falls ihr alle Tests l\u00f6sen konntet, werden andere Besucher neidisch auf euch sein und euch noch toller finden als ihr es eh schon seid!

Viel Spa\u00df mit unserem \u201cM\u201d. Das ist die erste Version. Schreibt gerne W\u00fcnsche f\u00fcr noch mehr Tests in die Kommentare und wir werden das in kommenden Versionen ber\u00fccksichtigen.

Checkt f\u00fcr mehr fantastische Druckmodelle die Seite von Anton: https://www.printables.com/@MeisterEdel

Wir sehen uns auf meinem Youtube-Kanal: https://www.youtube.com/@mpoxde

---------------------
English translation:

Together with designer @MeisterEdel, I developed this test model featuring my logo. It evaluates your 3D printer\u2019s performance in terms of tolerance (including threads), bridging, dimensional accuracy, wall quality, and surface finish.

There are two versions: one printed with supports and one without. This allows you to test, for example, how well supports adhere to surfaces, overhangs, and delicate features.

You can use the standard profiles in your slicer (0.4mm nozzle, 0.2mm layer height).

The test generally works with all materials, but I achieved the best results with PLA-CF.

The playful aspect lies in freeing all the \u201cM\u2019s.\u201d They are hidden behind flaps, inside threaded cylinders, or simply on surfaces. Have you found all the \u201cM\u2019s\u201d? Then post your make and show me!

The matching tool is printed alongside the model. If your 3D printer can open the threads and flaps with this tool, you earn extra points! If that doesn\u2019t work, you can also use a metal flathead screwdriver (force might be the solution for imprecise printers).

Overview of the Tests:

\u2022 Wall thickness/flow | The upper part is printed with one or two 0.45mm walls.

\u2022 Dimensional accuracy | 70mm gap at the top and an 18mm cube at the bottom.

\u2022 Bridging | The triangle contains bridges of different lengths. Can your printer handle 50mm? Use the tool to check layer adhesion!

\u2022 Tolerance | Various tolerance tests (0.1-0.25mm) are integrated, including simple free-rotation tests, a flap (which every printer should handle!), and complex threads. A filament strand can be inserted into the hole on the right. Does something pop out? Or do we have a bit of over-extrusion?

\u2022 Wall quality | We deliberately designed a larger test, allowing you to check walls, VFA effects, etc.

\u2022 Surface quality | The tool is great for checking whether your 3D printer properly fills surfaces. The embedded \u201cM\u201d adds complexity.

\u2022 Multi-material | While the test can be printed in a single color, multi-material or multi-color printing is also possible. This allows you to test filament changes or assess precision and misalignment with tool changers, IDEX, or dual-nozzle printers.

\u2022 Overhangs | Various overhangs are included. However, I recommend testing overhangs with larger surfaces. Consider these overhangs more of a gimmick!

Oh, and there\u2019s also a hook for hanging it up! Bring this piece to Formnext, Maker Faire, or your next 3D printing meetup and attach it to your backpack. If you manage to pass all the tests, other visitors will envy you and think you\u2019re even cooler than you already are!

Have fun with our \u201cM.\u201d This is the first version. Feel free to suggest additional tests in the comments, and we\u2019ll consider them for future versions.
