UPDATE 1/1/2025 I finally got a marketplace set up here This is where my premium models and the WHS compatible models will be uploaded to. Stop by and support my work!

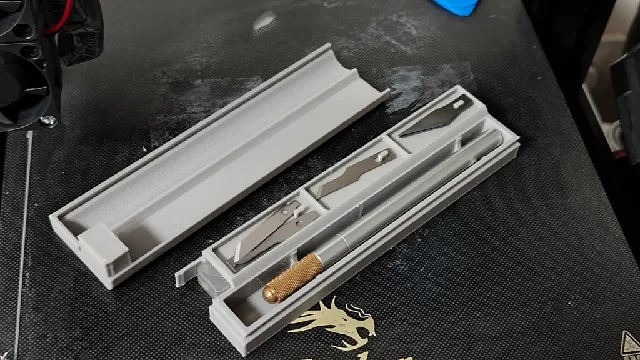

This can hold two #11 rectangular knife blade cases in the long \"hidden\" compartment and 4 blades of 38-ish mm in length and a max of 12mm wide in each of the top sections.

I'm not 100% on all the lengths of all the blades. However, from the images, you can see the general types which i designed this for. #10, #11, and #16 blades should fit.

Why are there are two versions? The taller should have more clearance for the rectangular blade cases (as seen in the images) The little nibbon on the top edge that locks them closed has to be forced into the section. Meaning that loading in two will make getting the deeper one out, difficult. I decided to just use the tighter fitting one cuz i don't mind cutting that nibbon off. However if you don't want to do that then the taller variant should suffice.

on my print i had to clearance the flat vertical face next to the blade pockets by a few microns. You may not have to but it wasn't a big deal.

To get your handle out simply push down on either far end of it (passed the cradle sections) and the handle will present itself.

Print Settings:

walls 2

bottom layers 2

top layers 3

infill 15%

height .2

initial .3

I printed it in Proto-pasta's matte fiber olive HTPLA
