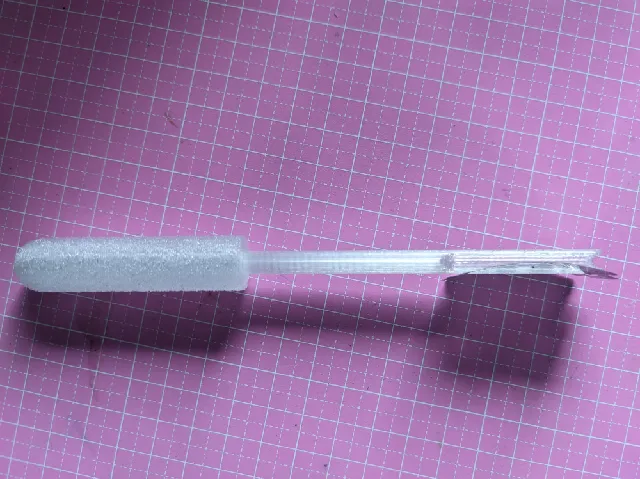

{"data":{"make":{"id":"2621566","created":"2025-05-17T12:30:47.068269+00:00","edited":"2025-05-17T12:33:24.049116+00:00","deleted":null,"isMake":true,"printer":{"id":"648","name":"Creality K1","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"222649","handle":"lod_222649","verified":false,"dateVerified":null,"publicUsername":"lod","avatarFilePath":"","badgesProfileLevel":{"profileLevel":6,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2482905","filePath":"media/comment_images/58/a75daf-5df4-4ff1-a16a-8e9f2685e784/agc_20250517_134421756.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"I had to scale the handle down to 91% to make it fit. I usually use a 0.1mm-0.2mm gap for press-fit. With 0.8mm I could turn the stem in the handle without friction. Other than that, it's nice simple design. I added some fuzzy skin to the handle for some extra grip.\n\nPETG\n0.6 mm nozzle\n0.24 mm layer height\nfuzzy skin point distance: 0.3mm\nfuzzy skin thickness: 0.5mm","rating":null,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"184333","ratingAvg":"0","ratingCount":0,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"184333","slug":"lame-for-bread","name":"Lame for Bread","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"0","myRating":null,"ratingCount":0,"description":"\n\n\n

I needed a \"Lame\" for a bread making class I am taking at my Community College, so I figured that Thingiverse would be a good source for a usable design.

The model offered by Gyrobot was a very close candidate, but as I have found time and time again ... it is difficult (at best) to insert a 6mm stem into a 6mm hole. FDM printers just aren't accurate enough.

I remixed Gyrobot's design by first making everything symetrical. I then tried making the hole in the handle 1mm larger than the stem, but the fit was too loose. I decreased this to .8mm and this is just right for my printer. (You may have to lightly sand the stem in order to get it to fit, but once it's in it's there to stay.)

I also decided to forgo the \"Hard\" blade cover and instead used some left over leather and made soft covers. You will need a piece of leather approximately 40mm x 90mm, folded in half and stitched along two sides.

Print Settings

Printer Brand:

TEVO

Printer: \n

Tornado

Rafts:

Supports: \n

Resolution:

.2mm & .25mm

Infill: \n

100% & 50%

Filament:\nINland PLA+ \n Black

Notes:

You will want to print the \"Stem\" at 100% infill for stiffness, but you can get away with 50% or less infill for the \"Handle\".

\nAlso I got better results when printing the \"Stem\" at .2mm layer height, and the \"Handle\" at .25mm layer height.\n

Lastly, you should print the \"Handle\" standing up, the hole will be much more symmetrical than if you print it laying down.

\n\nCategory: 3D Printing\n","category":{"id":"82","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"82","name":"Other Ideas","nameEn":"Other Ideas","description":"Enjoy your time in the workshop and discover excellent ideas of quality craftsman 3D printed concepts for every project you embark on.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2022-04-30T13:47:06.626413+00:00","firstPublish":"2022-04-30T13:49:51.536377+00:00","datePublished":"2022-04-30T13:49:51.536377+00:00","dateCreatedThingiverse":"2021-09-12T17:10:58+00:00","nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"I needed a \"Lame\" for a bread making class I am taking at my Community College, so I figured that Thingiverse would be\u2026","likesCount":21,"makesCount":1,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":123,"displayCount":995,"filesCount":2,"privateCollectionsCount":13,"publicCollectionsCount":10,"pdfFilePath":"media/prints/184333/pdfs/184333-lame-for-bread-4a690869-7408-4e1e-ba66-149acbff85cf.pdf","commentCount":1,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"847436","filePath":"media/prints/184333/images/1718751_2cd21373-c63d-455c-bedb-2a3bff46b931/large_display_img_20210912_112557786_hdr-min_1843.jpg","rotation":0,"imageHash":"LAgGBIAKaklmiYe+QZqgdyphBg==","imageWidth":1024,"imageHeight":577,"__typename":"PrintImageType"},"images":[{"id":"847436","filePath":"media/prints/184333/images/1718751_2cd21373-c63d-455c-bedb-2a3bff46b931/large_display_img_20210912_112557786_hdr-min_1843.jpg","rotation":0,"imageHash":"LAgGBIAKaklmiYe+QZqgdyphBg==","imageWidth":1024,"imageHeight":577,"__typename":"PrintImageType"},{"id":"847437","filePath":"media/prints/184333/images/1718752_c5d4f202-d55b-4b92-8929-6f2dd4db00f6/large_display_img_20210912_112538060_hdr-min_1843.jpg","rotation":0,"imageHash":"KwgGDIDmXCqSZXWsUFWgmQmXWA==","imageWidth":1024,"imageHeight":577,"__typename":"PrintImageType"},{"id":"847438","filePath":"media/prints/184333/images/1718753_f20c3f09-4e0a-4fa1-b08b-3aea0e56e4a9/large_display_img_20210912_115951202-min_184333.jpg","rotation":0,"imageHash":"HQgGDID8SUhOp1i6cmeQiQuEmA==","imageWidth":1024,"imageHeight":577,"__typename":"PrintImageType"},{"id":"847439","filePath":"media/prints/184333/images/1718754_3fecb9d0-c394-4997-bf14-598c742777b4/large_display_lame_tinkercad_184333.jpg","rotation":0,"imageHash":"9vcFDgL3iZeIaMdXd4Z4iZeYKJSQcQo=","imageWidth":827,"imageHeight":960,"__typename":"PrintImageType"},{"id":"847440","filePath":"media/prints/184333/images/1718755_753229d5-a2cf-41ee-b54c-66df363d46aa/large_display_lame_stem_184333.png","rotation":0,"imageHash":"6/cFDYKWiIifeHePdkd2haSZT5r5","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"847441","filePath":"media/prints/184333/images/1718756_3096bb31-e091-4938-bd95-9c9a1b05dc95/large_display_lame_handle_184333.png","rotation":0,"imageHash":"q/cFFYTXOLePd3h4hnl4ifh4io+3","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"}],"imagesCount":6,"tags":[{"name":"kitchen","id":"5","__typename":"TagType"},{"name":"blade","id":"318","__typename":"TagType"},{"name":"baking","id":"590","__typename":"TagType"},{"name":"razor","id":"2283","__typename":"TagType"},{"name":"lame","id":"5054","__typename":"TagType"},{"name":"bread","id":"5056","__typename":"TagType"},{"name":"thingiverse","id":"6174","__typename":"TagType"},{"name":"bakery","id":"23362","__typename":"TagType"},{"name":"baguette","id":"26312","__typename":"TagType"},{"name":"baugette","id":"80547","__typename":"TagType"}],"thingiverseLink":"https://www.thingiverse.com/thing:4963597","filesType":null,"previewFile":{"id":"778393","filePreviewPath":"media/prints/184333/stls/1718757_dfddeba7-c04a-4b8f-b493-ae64e59814e0/lame_handle_preview.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"85098","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://www.thingiverse.com/thing:4963597","urlAuthor":"TeamOliva","urlImage":"https://cdn.thingiverse.com/assets/d5/f7/4f/3c/bd/featured_preview_IMG_20210912_112557786_HDR-min.jpg","urlTitle":"Lame for Bread","urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":null,"__typename":"PrintType","user":{"id":"259458","handle":"TeamOliva","verified":false,"dateVerified":null,"publicUsername":"TeamOliva","avatarFilePath":"media/auth/avatars/1b/1b61668b-d0c2-4bd2-8ed4-79773eb04478.jpg","badgesProfileLevel":{"profileLevel":16,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
