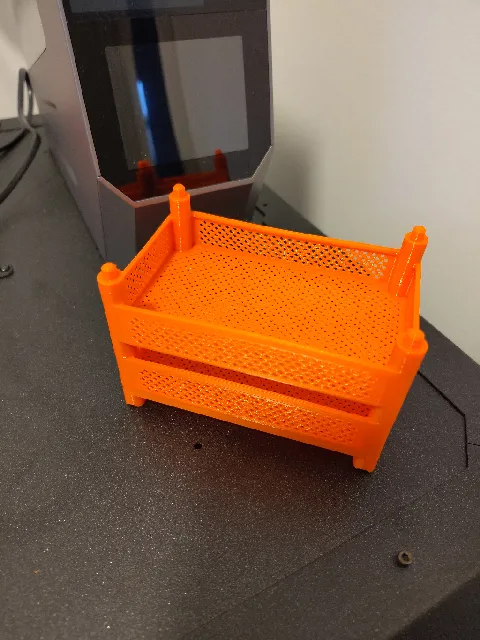

{"data":{"make":{"id":"2612791","created":"2025-05-12T19:47:38.835943+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"620","name":"Prusa MK4","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1652623","handle":"natlampen_1652623","verified":false,"dateVerified":null,"publicUsername":"natlampen","avatarFilePath":"","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2474466","filePath":"media/comment_images/42/3ea445-06ac-4e8e-a377-b39259977c4d/img_20250512_214243.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Against recommendation I have printed in PETG. I do see the sagging of the trays after heating in the dryer.\n\nI had a little issues printing the lower grid. Maybe related to PETG. Although I made a remake with a solid bottom and using slicer options to remove top and bottom layers and using the grid infill to recreate the grid which seems to work nicely.\n\nThe rest works very nice and fits very well into the dryer. Thanks.","rating":4,"likesCount":3,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"1210714","ratingAvg":"4.6666666667","ratingCount":6,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":true,"id":"1210714","slug":"desiccant-drying-trays-for-the-creality-space-pi-f","name":"Desiccant Drying Trays for the Creality Space Pi Filament Dryer","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.6666666667","myRating":null,"ratingCount":6,"description":"

First things first; make sure you have a filament that is suitable for the max temp of the dryer (70\u00b0C according to Creality) plus a margin to account for the heat being greatest at the back near the exhaust vent. Any filament with a softening / glass transition temp of >100\u00b0C should be fine.

Failure to do this may result in your trays sagging, and spilling desiccant into the bottom of your dryer, which has the potential to cause a fire. Proceed at your own risk!!

I used ASA for the print in the pictures. which has a softening temp of ~105\u00b0C. ABS would be a good choice too. So would PC.

Do not use PLA (softens at 60-65\u00b0C), or PETG (softens at 85\u00b0C). Temps can vary with specific filament manufacturers and formulations, check with the manufacturer if unsure.

There are 3 parts:

A base - with legs that fit onto the rollers and provide some air space under the first tray.
A pin - you need 4 of these to fit into the base.
A tray or trays - up to 5 of these will fit in the dryer.

The pins have two different diameters on them. The larger diameter should press fit into the holes in the base. The smaller diameter is a free fit with the holes in the bottom of the trays, making it easier to put together and take apart. You may need to scale the pins slightly to get a good fit in the base.

Each tray is 120 x 77 x 20 (excluding the up-stands) and will comfortably take up to 100g (3.5oz) of 3-5mm desiccant.

I printed these a little slower than usual, to make sure all the holes came out well:

0.2mm layer height
3 walls
75mm/s outer and inner wall speed
25mm/s bridge external wall speed
50mm/s internal bridge speed (not sure that is relevant though!)

For the tray, I recommend using a height range modifier from 0 to 1mm to reduce the outer wall speed a little lower than above, to make sure you get clean holes on the bottom.

Hopefully the print orientations are obvious. You may need a brim for the pins, depending on how well things stick to your plate.

Happy drying!

","category":{"id":"40","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"40","name":"Accessories","nameEn":"Accessories","description":"Add cool improvements to your 3D printer - drybox, filament buffer, or extruder visualizer. These smart ideas will make your printer even better!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-03-02T11:26:38.490906+00:00","firstPublish":"2025-03-02T11:26:38.468822+00:00","datePublished":"2025-03-02T11:26:38.472377+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"A modular set of up to 5 stacking trays for drying 3-5mm desiccant in your dryer.","likesCount":135,"makesCount":5,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":514,"displayCount":2706,"filesCount":3,"privateCollectionsCount":165,"publicCollectionsCount":87,"pdfFilePath":"media/prints/1210714/pdfs/1210714-desiccant-drying-trays-for-the-creality-space-pi-filament-dryer-55827b1e-ffff-427c-bb98-185a2ca38ea7.pdf","commentCount":20,"userGcodeCount":0,"remixCount":3,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"4178938","filePath":"media/prints/1210714/images/9107178_eb0f86d7-6b4c-4804-8e73-b0e86dea2fd2_a55a3ab9-e35b-45cc-b641-74a300998f27/pxl_20250302_110233649.jpg","rotation":0,"imageHash":"VwgKFoL3dXWBhnWVZViWp6d3aFKACAQ=","imageWidth":2517,"imageHeight":2268,"__typename":"PrintImageType"},"images":[{"id":"4178938","filePath":"media/prints/1210714/images/9107178_eb0f86d7-6b4c-4804-8e73-b0e86dea2fd2_a55a3ab9-e35b-45cc-b641-74a300998f27/pxl_20250302_110233649.jpg","rotation":0,"imageHash":"VwgKFoL3dXWBhnWVZViWp6d3aFKACAQ=","imageWidth":2517,"imageHeight":2268,"__typename":"PrintImageType"},{"id":"4178937","filePath":"media/prints/1210714/images/9107180_e8a6f892-55f5-466f-a32a-8eed44b66467_0a6b2d6f-0f2c-428f-8968-99d364dd947c/pxl_20250302_110223512.jpg","rotation":0,"imageHash":"WwgGHwTkZWeAhXWHZReXhbd3qAmHqXAI","imageWidth":2164,"imageHeight":2164,"__typename":"PrintImageType"},{"id":"4178940","filePath":"media/prints/1210714/images/9107176_1d959bd6-c42a-46dd-9bcc-a4ee8da84519_f33eff96-4f13-4330-9ad8-84105c436207/pxl_20250302_1100477842.jpg","rotation":0,"imageHash":"3UkGJwTApnipZXiclyemmHl3ifVodp8K","imageWidth":2267,"imageHeight":2268,"__typename":"PrintImageType"},{"id":"4178939","filePath":"media/prints/1210714/images/9107177_e4692688-c65f-46fc-b173-5064452dd651_0fdb14bd-a90a-49e0-8583-e8b41bf528a9/pxl_20250302_104307959.jpg","rotation":0,"imageHash":"nRgKHwT1pniXd4iOhYZ3t2h3eI/o5ZgP","imageWidth":2267,"imageHeight":2268,"__typename":"PrintImageType"},{"id":"4178943","filePath":"media/prints/1210714/images/9107182_af9510a4-9c59-4065-97f5-2159fd4777ae_17f87378-0e66-423a-96e9-97dd1325d7e3/pxl_20250302_1100244122.jpg","rotation":0,"imageHash":"3jkGHYLhl/eEaIh+hqdoiQw8w/BD","imageWidth":3023,"imageHeight":2268,"__typename":"PrintImageType"},{"id":"4178942","filePath":"media/prints/1210714/images/9107181_1fd4d083-d614-4969-ba99-4ba1bd77e7e8_889ba22c-0942-4b9e-adb6-8f19d359da1f/pxl_20250302_105702642.jpg","rotation":0,"imageHash":"HPgFFIQMtnhtqnaopotSP0z20w==","imageWidth":4032,"imageHeight":2268,"__typename":"PrintImageType"},{"id":"4178941","filePath":"media/prints/1210714/images/9107179_63d02ddc-3e6f-4851-89a2-aaa3055d61f3_4b395de3-8e79-4f0b-b425-96de84dde205/pxl_20250302_104753716.jpg","rotation":0,"imageHash":"YTkGFwLRZ4mXaJe/ZXmHOIWJaJr4lokP","imageWidth":1893,"imageHeight":1894,"__typename":"PrintImageType"}],"imagesCount":7,"tags":[{"name":"space","id":"308","__typename":"TagType"},{"name":"modular","id":"628","__typename":"TagType"},{"name":"creality","id":"2004","__typename":"TagType"},{"name":"pi","id":"2331","__typename":"TagType"},{"name":"dryer","id":"2622","__typename":"TagType"},{"name":"desiccant","id":"4015","__typename":"TagType"},{"name":"stacking","id":"5277","__typename":"TagType"},{"name":"trays","id":"18542","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"5047510","filePreviewPath":"media/prints/1210714/previews/939e6626aa302eadcc94681b82eb29bfa93145ea.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"2908832","handle":"Simon_2908832","verified":false,"dateVerified":null,"publicUsername":"Simon","avatarFilePath":"media/auth/avatars/47/477d1883-826c-4779-925b-b34e002e1698.jpg","badgesProfileLevel":{"profileLevel":11,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
