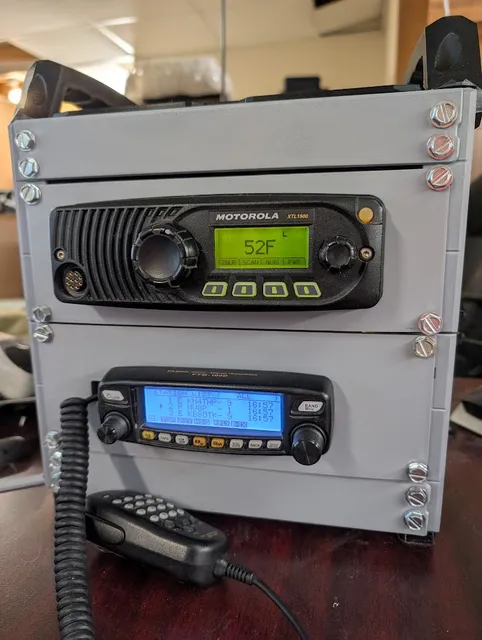

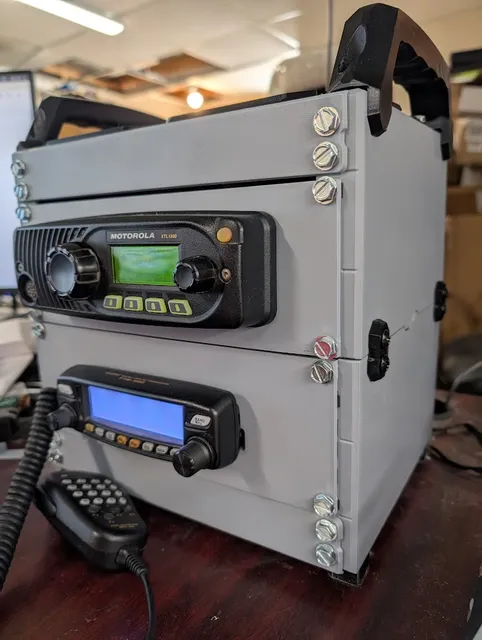

{"data":{"make":{"id":"2578140","created":"2025-04-25T17:09:58.983036+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"749","name":"Prusa MK4S","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"296452","handle":"k8md_296452","verified":false,"dateVerified":null,"publicUsername":"k8md","avatarFilePath":"","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2438282","filePath":"media/comment_images/40/56facc-db09-4368-b97c-f62a5458f313/pxl_20250425_165809901mp.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"2438283","filePath":"media/comment_images/27/5a4036-0323-4607-8a1a-31c99042830b/pxl_20250425_165801986.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"I printed this rack to hold two way radios. I will publish the radio face plates (rack shelves?) once I am happy with their design.\n\nWhen assembling, I suggest all screws are left loose. I tightened them all down as I assembled and the rack was really far out of square when I was finished. I set it on a flat surface and loosened them all up and then re-tightened and it's perfectly square now.\n\nI also suggest installing the cage nuts with the tabs going top<->bottom in the rack. I always installed them the other way and I blew out some of the square holes.","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"1225275","ratingAvg":"4.9104477612","ratingCount":67,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"1225275","slug":"modular-10-server-rack-mod10","name":"Modular 10\" Server Rack! - Mod10","authorship":"author","club":false,"excludeCommercialUsage":false,"price":"6.00","eduProject":null,"ratingAvg":"4.9104477612","myRating":null,"ratingCount":67,"description":"

Mod10 \u2013 The Modular 3D-Printed Mini Server Rack

Tired of overpriced, bulky server racks that don\u2019t fit your space? Mod10 is a fully 3D-printable, modular 10-inch server rack designed for small-scale networking setups, home labs, and compact office deployments. Whether you're running Raspberry Pi clusters, Ubiquiti networking gear, or custom DIY hardware, ModTen is built to keep your setup organized, accessible, and budget-friendly.

UPDATED 10/03/2025:

Added Keystone Crossmember - Optional Crossmember that also has Keystone receptacles!
Added \u201cOpen\u201d Side Panels that allow lots of airflow.
Added Single Piece Lid/Bottom panel. (Requires larger than 250mm build volume sadly.)
Cleaned up CAD & redid File Names for more clarity.

As seen in this video:

\ud83d\udd39 Features:

Modular Design \u2013 Expandable from 4U to 8U+ w/ added mid-sections
Fits Standard 10\u201d Rack Hardware \u2013 Works w/ keystone panels, blanking plates, switches, and custom mounts for 10\" Racks.
Measures 200mm from front flange to back flange.
Optimized for 3D Printing \u2013 NO Supports required, printable on common bed sizes (Prusa MK4, Bambu X1, etc.)
Sturdy & Customizable \u2013 Cage nut mounting for universal compatibility, plus optional fan mounts and handles
Compact & Space-Saving \u2013 Perfect for small offices, workshops, and mobile setups

\ud83d\udce6 What\u2019s Included in the Download?

Core Frame Files (Top/Bottom, Crossmembers, Connectors)
Expansion Pieces (Mid-sections for 6U & 8U builds)
Custom Panels (Blanking plates, vented lids, keystone jack plates)
Accessory Mounts (Handles, feet, fan mount)
STEP File \u2013 For easy remixing and customization in CAD

\ud83d\udccc Print Settings & Recommendations (STRONGLY Recommended):

Nozzle: 0.4mm
Layer Height: 0.2mm
Walls: 4 perimeters for strength
Top/Btm Layers: 6 for strength
Infill: 40% (Rectilinear, Gyroid, or Cubic recommended)
Material: ASA, PETG, or PLA+ (ASA recommended for best results)
Support-Free: All parts designed to print cleanly w/o supports

\ud83d\udee0 Hardware Required (Affiliate Links):

Rack Cage Nuts & Screws: https://amzn.to/3DFMf6n
Filament Used in This Project: https://tinyurl.com/PolymakerASA

These are the exact parts I used in the video, so you can be sure everything will fit properly!

\ud83d\udca1 The files will eventually be public, but supporting now helps me continue making awesome projects like this!

\u26a0 Notes & License

Personal use & non-commercial printing only. (Standard Digital License)
No Reposting of the original design.
Remixing encouraged! Just credit and link back to the original please
If you make one, tag me on Instagram/Twitter/TikTok/YouTube @MandicReally\u2014I\u2019d love to see your builds!
Find my Social Medias on my Link Tree!
