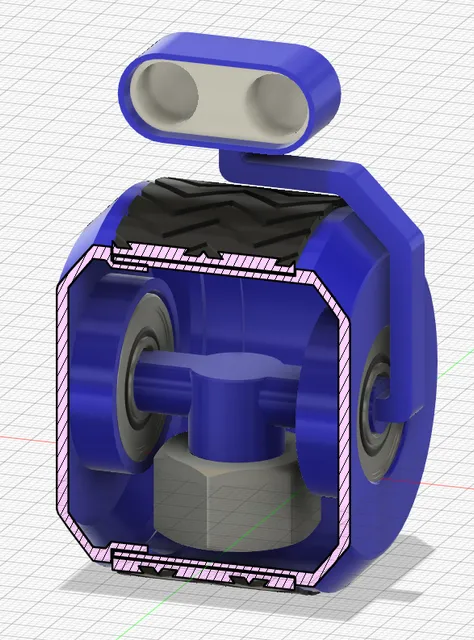

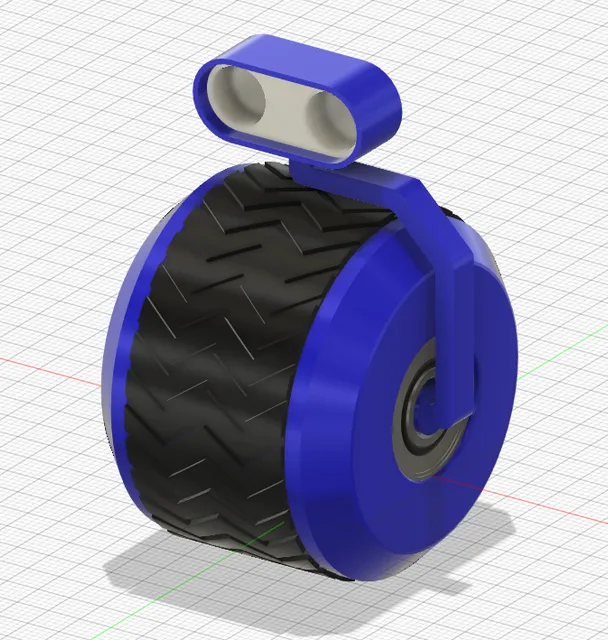

{"data":{"make":{"id":"2532100","created":"2025-04-03T17:22:36.902506+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"547","name":"Creality Ender 3 S1 Pro","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2617044","handle":"swholmstead","verified":false,"dateVerified":null,"publicUsername":"Stephen Holmstead","avatarFilePath":"media/auth/647ee09c-3fee-4dfa-8b66-870dec9a67f9.jpg","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2390156","filePath":"media/comment_images/32/47c57b-6947-41f1-a9a3-01dd9c90b829/img_3546.jpeg","rotation":0,"__typename":"CommentImageType"},{"id":"2390155","filePath":"media/comment_images/f9/2294e4-d2ca-4285-bf03-b109ba762781/balance-bot-cross-section.png","rotation":0,"__typename":"CommentImageType"},{"id":"2390154","filePath":"media/comment_images/37/33529e-306d-4b32-bc72-fd8aa4988e43/balance-bot.png","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"It was too difficult to get it to roll smoothly, so I added standard bearings and a counterweight. I also designed a TPU tire for better grip.\n\n\u200ahttps://www.printables.com/model/1253347-self-balancing-rolling-robot","rating":5,"likesCount":5,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"1194641","slug":"styr-01-the-self-stabilizing-rolling-robot","name":"STYR-01: The Self-Stabilizing Rolling Robot","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.7407407407","myRating":null,"ratingCount":135,"description":"

STYR-01 is a compact and charming rolling robot that fits in the palm of your hand. It features a passive stabilization system using an internal counterweight. Thanks to this mechanism, its head always remains upright while rolling, creating a dynamic and eye-catching effect. The design is inspired by the concept art of BB-8 (Star Wars) and WALL-E, blending an expressive look with a structure optimized for FDM 3D printing.

Important Instructions:

\ud83d\udee0 Assembly & Functionality

It is crucial to follow the instructions in the attached notes. If not followed correctly, the mechanism will not work.
The structure is designed to be assembled without glue, but you can use it to reinforce the pieces if desired.

\ud83c\udfa8 Customization & Dual-Color Printing

If you want to print the body in two colors, like in the images, you must change the filament at the mark included in the model.
If using a 0.2 mm layer height, the filament change should be done at layer 17.

\u2699 Optimizing Performance

To improve the mechanism\u2019s efficiency, it is recommended to lubricate the counterweight axle areas, reducing friction and ensuring smoother movement.

STYR-01 is perfect for robotics enthusiasts, 3D printing makers, and mechanical design lovers, offering a fun experience in both printing and operation. \ud83d\ude80

***Update of tolerances and small adjustments (v4 files)!!***

Thank you all for helping improve the model and for pointing out the issues in the earlier versions. Based on many of your comments, I've re-uploaded the files with modified overall tolerances and added an extra bottom and top layer to the SRYT-01_FACE file. I hope this update fixes the overly loose tolerances so that you no longer need to use glue\u2014although you\u2019re still welcome to use it if you want to secure the pieces further. I\u2019m hesitant to reduce the tolerances more, as that could make it difficult for some of you to fit the parts together.

In version 3 (3.mf files) there were errors due to the export process and the file type, which is why I have re-uploaded the files in STL (ASCII) format. When reviewing the old files, I noticed that they worked fine in Ultimaker Cura; however, in PrusaSlicer or OrcaSlicer issues did occur, and I\u2019m not sure why. Nonetheless, for version 4 I have verified in both slicers that everything functions correctly, so you should not encounter any problems.

In summary, the changes that have been made since version 1 are the following:

The tolerance of the parts has been reduced for a firmer fit.
A top and bottom layer has been added to the SRYT-01_FACE file.
Errors in the files have been corrected and it has been verified that they work well in various slicers.

I'm always open to new suggestions. Thanks again, everyone!
