{"data":{"make":{"id":"2520721","created":"2025-03-30T03:57:20.992605+00:00","edited":"2025-03-30T04:00:01.838616+00:00","deleted":null,"isMake":true,"printer":{"id":"532","name":"Prusa XL","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1864","handle":"Duane_1864","verified":false,"dateVerified":null,"publicUsername":"Duane","avatarFilePath":"media/auth/avatars/96/96eda071-cac9-4341-93a9-f6211c37bccb.png","badgesProfileLevel":{"profileLevel":19,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2377667","filePath":"media/comment_images/d4/81f5cc-69a1-4873-9a81-6045d68f40e2/m3-bolt-sorter.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"First, this design is friggin' awesome. It's the most fun I have had doing a build in a long time. Of the thousands of prints I've made in my 10 years of 3D printing, it might be my favorite. I like the function and the form.\n\nComments: I have run a couple of hundred bolts through it. It took a bit of getting used to, but I think I spent maybe half an hour getting used to the process and sorting them. 6mm bolts tend to not fall and roll all the way to the end and drop off. No big deal, I pick them up and put them in the bin. A bit of 3-in-one oil on the slider pin made it much smoother. I found that less parts in the bin are better as it picks them up too well and they stack up and I tend to get jams. I printed the handle in TPU and did the fuzzy skin as you did. Since the numbers on the tray weren't separate, I used a silver Sharpie to color them.\n\nSuggestions: I had to put a fair amount of force on the handle when using it and it shook apart several times and I had to snap it all back together. A screwed together option would be nice. Specifically, the rotator lid. I don't want to glue it as I need to take it out occasionally to get bolts out that fall down or I get a jam I have to fix. Also, a couple of screws/bolts to hold the base to the main plate would have helped a bit.\n\nI printed the black parts on my Qidi Plus 4, the Blue/White parts on my XL, and the purple/blue parts on the MK4.","rating":null,"likesCount":2,"liked":null,"membershipAgeMonths":0,"modelData":{"model":{"id":"1246643","ratingAvg":"4.6000000000","ratingCount":20,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":true,"id":"1246643","slug":"mechanical-m3-boltscrew-sorting-device","name":"Mechanical M3 Bolt/Screw Sorting Device","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.6000000000","myRating":null,"ratingCount":20,"description":"

Video about the Designing process, The functionality and the Assembly

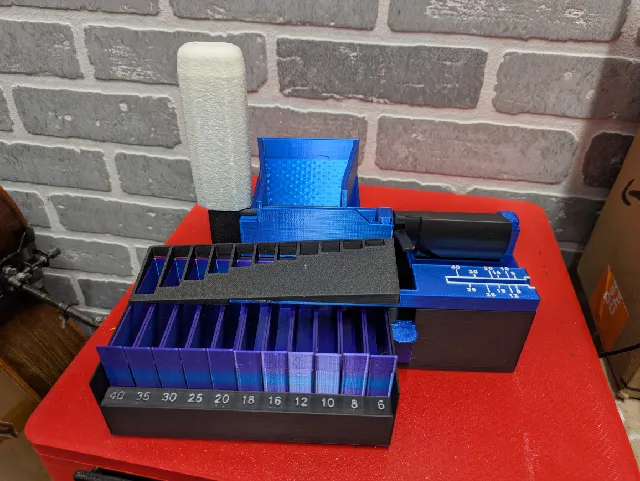

Mechanical Bolt Sorting Device for M3 bolts/Screws 6-40mm

End the struggle of manually sorting your cylinder head bolts

Fully 3D Printed
Operated by hand. No need for motors
No other parts needed (Just a drop of glue)
Printed with PLA
High reliability
Removable bins

Support my work by becoming a PATREON or Buy me a Coffee.

Supported Bolt Lengths:

M3x6
M3x8
M3x10
M3x12
M3x16
M3x18
M3x20
M3x25
M3x30
M3x35
M3x40

PARTLIST:

Base 1x
Clamp 1x
Container 11x
Handle 1x
LifterBig 1x
LifterPin 2x
LifterSmall 1x
MainPlate 1x
Rotator 1x
Rotatorlid 2x
Rotatorpin 2x
SliderBottom 1x
SliderTop 1x
Sorter 1x
Tray 1x

IMPORTANT:

Operate the device slow for a reliable outcome. Swinging the handle too fast will cause failures
Maker sure there is no elephant footing, brim or anything else on the rotator that can prevent the bolt from rolling out

FILAMENT I USED:

PLA+ from Elegoo (reflink)

Assembly:

","category":{"id":"49","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"49","name":"Tools","nameEn":"Tools","description":"Perfect tools and accessories for DIY enthusiasts or handicraftsman professionals. Table clamp, CNC machine parts, screw measuring tool, or multipurpose ruler.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-04-14T05:19:29.482232+00:00","firstPublish":"2025-03-28T21:17:22.817599+00:00","datePublished":"2025-04-14T05:19:29.465726+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"100% 3D printed M3 Sorting Device","likesCount":1290,"makesCount":22,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":2177,"displayCount":19825,"filesCount":31,"privateCollectionsCount":908,"publicCollectionsCount":652,"pdfFilePath":"media/prints/1246643/pdfs/1246643-mechanical-m3-boltscrew-sorting-device-9723dee0-948e-4d29-9ac1-968274e54b3d.pdf","commentCount":44,"userGcodeCount":0,"remixCount":2,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"4283381","filePath":"media/prints/6be52e5d-1532-4707-9234-8b9a89b14b6d/images/9355675_b87bbb53-bf1f-4df5-9d21-e5faa27e2a53_cd088aea-c212-4b40-86e6-dccf934ff52b/makerworldrender.png","rotation":0,"imageHash":"1ScSFYSHh3dwh4eJdmeoeAd7YKAH","imageWidth":1280,"imageHeight":960,"__typename":"PrintImageType"},"images":[{"id":"4283381","filePath":"media/prints/6be52e5d-1532-4707-9234-8b9a89b14b6d/images/9355675_b87bbb53-bf1f-4df5-9d21-e5faa27e2a53_cd088aea-c212-4b40-86e6-dccf934ff52b/makerworldrender.png","rotation":0,"imageHash":"1ScSFYSHh3dwh4eJdmeoeAd7YKAH","imageWidth":1280,"imageHeight":960,"__typename":"PrintImageType"},{"id":"4283407","filePath":"media/prints/1f4fc046-7b60-4c6c-ac2e-b1563f018ad3/images/9355702_c4480c8f-5e5a-4f5f-a278-48c66dcbd552_c1172d13-2d37-4c96-92d9-22b9f9f1df8c/boltsortinggif.gif","rotation":0,"imageHash":"WkgODoT5i4hcZndNdoaImIiXCseIcJo=","imageWidth":720,"imageHeight":576,"__typename":"PrintImageType"},{"id":"4283382","filePath":"media/prints/cd005116-811d-429f-bf0f-569fe00f9e62/images/9355678_5b2bb919-d670-4637-ad1f-a613d1eafaf3_5088b62e-1594-4f75-bbb9-3f15f93574a3/makerworldp2.jpg","rotation":0,"imageHash":"WHkWFYqYh3ePiHhrh4dnhzelgEUJ","imageWidth":1280,"imageHeight":960,"__typename":"PrintImageType"},{"id":"4283383","filePath":"media/prints/5e7095ac-3cb9-41ef-b28a-9bdbf0dc09dd/images/9355679_c4408ee2-896d-4662-8bf3-a7fbab414fa2_3551b8d7-45a2-420d-8b43-56f213789771/makerworldp3.jpg","rotation":0,"imageHash":"VokSFYiUtod/hYhahriHiM7d8Ns9","imageWidth":1280,"imageHeight":960,"__typename":"PrintImageType"},{"id":"4283384","filePath":"media/prints/4e2b6093-06ec-4db6-8310-c270b040bee3/images/9355677_31bbf893-47a5-46d9-abd0-0c81fcaa7ca2_b2c9c951-73e0-4e8b-903a-72148e72c275/thumbnailrender4.png","rotation":0,"imageHash":"1pgGFIytyaZeAUa4+Wibv6n5iw==","imageWidth":1280,"imageHeight":720,"__typename":"PrintImageType"}],"imagesCount":5,"tags":[{"name":"tool","id":"83","__typename":"TagType"},{"name":"mechanical","id":"836","__typename":"TagType"},{"name":"engineering","id":"1064","__typename":"TagType"},{"name":"screw","id":"2374","__typename":"TagType"},{"name":"sorting","id":"2517","__typename":"TagType"},{"name":"bolt","id":"2768","__typename":"TagType"},{"name":"machine","id":"3324","__typename":"TagType"},{"name":"device","id":"6077","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"5189565","filePreviewPath":"media/prints/ad32157b-f7d1-4aa5-a1bd-1bb94e909275/previews/43329b01c410beaf50fcd6b8cb0ffb9cc60da660.png","__typename":"STLType"},"license":{"id":"3","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","user":{"id":"2101810","handle":"EmGi","verified":false,"dateVerified":null,"publicUsername":"EmGi","avatarFilePath":"media/auth/avatars/2c/2c014702-7d37-4ed1-9e30-c359cf90cb15.png","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":true}},"unavailableModel":null,"replies":[{"id":"2520843","created":"2025-03-30T06:27:58.847516+00:00","edited":null,"deleted":null,"isMake":false,"printer":{"id":"685","name":"Anycubic Kobra 2 Pro","__typename":"PrinterTypeType"},"parent":{"id":"2520721","__typename":"PrintCommentType"},"author":{"id":"2101810","handle":"EmGi","verified":false,"dateVerified":null,"publicUsername":"EmGi","avatarFilePath":"media/auth/avatars/2c/2c014702-7d37-4ed1-9e30-c359cf90cb15.png","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[],"text":"Thank you for the kind words and the feedback!","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":0,"modelData":{"model":{"id":"1246643","ratingAvg":"4.6000000000","ratingCount":20,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType"}]}}}
