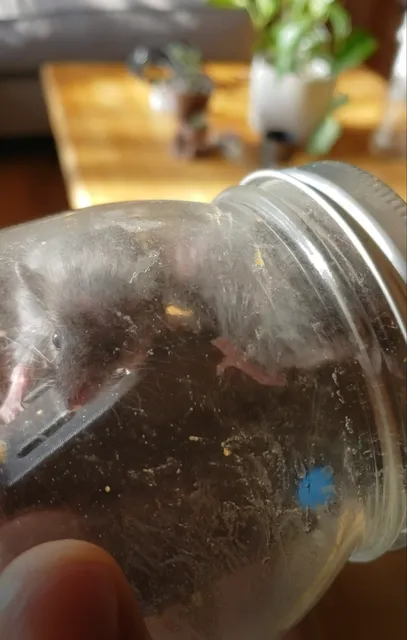

{"data":{"make":{"id":"245791","created":"2022-05-10T14:30:19.606057+00:00","edited":null,"deleted":null,"isMake":true,"printer":null,"parent":null,"author":{"id":"222208","handle":"DavidLee_222208","verified":false,"dateVerified":null,"publicUsername":"David Lee","avatarFilePath":"media/auth/avatars/89/894be708-e18f-4e0c-9d84-155c5bbe480b.jpg","badgesProfileLevel":{"profileLevel":8,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"152592","filePath":"media/comment_images/7f/293ad1-533e-49fd-89fb-e5fa53587558/screenshot-2022-05-10-092415.png","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"It's hard to see, but I caught 3 mice at once with this trap. I've caught 5 mice in 3 days with it included this triple catch.\n\nI've tried around 5 designs. This linked one https://www.thingiverse.com/thing:2911549 is my favorite because it is an easy to reload kill trap and has caught over 20 mice, but it cannot catch smaller species. That's where this mason jar design is great. This trap is perfect for smaller species and juvenile mice (like the 3 in the picture).","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"132237","ratingAvg":"4.3333333333","ratingCount":9,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"132237","slug":"multi-mouse-jar-trap-v3","name":"Multi-Mouse Jar Trap (v.3)","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.3333333333","myRating":null,"ratingCount":9,"description":"

OK, I think I've finally got it. This version uses a tilting ramp like the Victor Tin Cat mouse trap. As the mouse goes up the ramp, the ramp tilts down, admitting the mouse to the jar with the tasty bait. Once it steps off the ramp, though, the ramp tilts back up blocking its exit. I've posted two different versions: one that is used with a standard wide-mouth Mason jar and ring lid, and the other with a screw thread for use on 36 oz Adams Peanut Butter jars. (We have a lot of these jars.)

The tilting ramp has a little pocket that accepts three US pennies to act as a counterweight. Also, the ramp pivots on two short pieces of 1.75mm filament used as hinge pins. (Just position the ramp in place and poke short pieces of filament in the holes on either side, trimming them short so the mice can't gnaw on them.) Bait with a little peanut butter at the bottom of the jar.

Watch it in action:

Print Settings

Printer:

UDIO

Rafts:

Supports:

Resolution:

0.2mm

Infill:

20%

Filament:

Inland PLA

Category: Outdoor & Garden

","category":{"id":"53","path":[{"id":"3","name":"Household","nameEn":"Household","description":"Marvel at these impressive interior and exterior decors. Download print-in-place items, vases of various shapes, or geometrical lamps.","__typename":"CategoryType"},{"id":"53","name":"Outdoor & Garden","nameEn":"Outdoor & Garden","description":"Interested in gardening? Grow herbs with ingenious planters or print avocado seed floaters. Breathe life into your garden with bird feeders and windmills.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-06-03T21:48:32.281427+00:00","firstPublish":"2022-02-11T04:43:04.275471+00:00","datePublished":"2023-06-03T21:48:32.264095+00:00","dateCreatedThingiverse":"2021-04-11T22:16:23+00:00","nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"OK, I think I've finally got it. This version uses a tilting ramp like the Victor Tin Cat mouse trap. As the mouse\u2026","likesCount":113,"makesCount":11,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":611,"displayCount":3616,"filesCount":4,"privateCollectionsCount":69,"publicCollectionsCount":58,"pdfFilePath":"media/prints/132237/pdfs/132237-multi-mouse-jar-trap-v3-9c4a586c-9072-4150-8fb5-cfc992686a8d.pdf","commentCount":15,"userGcodeCount":0,"remixCount":3,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"645043","filePath":"media/prints/132237/images/1265724_9fcebc1c-35ac-426a-9288-ae0bc33012ac/large_display_jt3_1_132237.jpg","rotation":0,"imageHash":"2jkKJYRsVKpziHdQqUiHdvRwKgyY","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},"images":[{"id":"645043","filePath":"media/prints/132237/images/1265724_9fcebc1c-35ac-426a-9288-ae0bc33012ac/large_display_jt3_1_132237.jpg","rotation":0,"imageHash":"2jkKJYRsVKpziHdQqUiHdvRwKgyY","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},{"id":"645042","filePath":"media/prints/132237/images/1265723_6a6f5db0-af90-483f-9eae-b70996cd29f2/large_display_jt3_6_132237.jpg","rotation":0,"imageHash":"GQgSBYCvmImId3dSmWiHiSOZMIIJ","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},{"id":"645044","filePath":"media/prints/132237/images/1265726_b473d13f-0169-4664-8926-12516c97abd7/large_display_jt3_4_132237.jpg","rotation":0,"imageHash":"GToKLYQKo2qMdodhrHZ2dvFXLT/V","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},{"id":"645045","filePath":"media/prints/132237/images/1265727_1295756d-12cf-4943-b616-4de09f4ee818/large_display_jt3_3_132237.jpg","rotation":0,"imageHash":"XRkGPYYciV8qcldxuWh3gvl7qn+o","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},{"id":"645046","filePath":"media/prints/132237/images/1265725_cbd00406-8fbc-4193-9fb4-cbc51e270892/large_display_jt3_2_132237.jpg","rotation":0,"imageHash":"XBkKJYSdeWZ0eYiAiTeHeLSQSgqp","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},{"id":"645047","filePath":"media/prints/132237/images/1265728_57973cb7-dc2a-486b-8765-1e8393e14668/large_display_jt3_5_132237.jpg","rotation":0,"imageHash":"8PcJDYD3hmqFdniOdEeXePeKjp/o","imageWidth":736,"imageHeight":552,"__typename":"PrintImageType"},{"id":"645048","filePath":"media/prints/132237/images/1265729_bd091ca8-fbce-424c-a5b8-2c0d5ab3fb7f/large_display_jartrap3_132237.png","rotation":0,"imageHash":"aecJJYbnWYaPdniKdVmHifeKe5/I","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"645049","filePath":"media/prints/132237/images/1265730_d96052c6-c132-46f5-b977-0d74820a8320/large_display_jartrap3_mason_132237.png","rotation":0,"imageHash":"aucJJYb2OqWPd4iLdHl3iPd5e4/H","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"645050","filePath":"media/prints/132237/images/1265731_e8e3d677-03dd-49d1-bd32-72caa18e6339/large_display_jartrap3-ramp_132237.png","rotation":0,"imageHash":"JtcJJYbYdnZ/lneLdWh4hvtrvb/W","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"}],"imagesCount":9,"tags":[{"name":"thingiverse","id":"6174","__typename":"TagType"},{"name":"mousetrap","id":"7643","__typename":"TagType"}],"thingiverseLink":"https://www.thingiverse.com/thing:4825108","filesType":null,"previewFile":{"id":"545386","filePreviewPath":"media/prints/132237/stls/1265732_0ed76b02-6c69-4a98-9bee-f45e0b1a899c/jartrap3-ramp_preview.png","__typename":"STLType"},"license":{"id":"2","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"307237","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://www.thingiverse.com/thing:4825108","urlAuthor":"LoboCNC","urlImage":"https://cdn.thingiverse.com/assets/b9/a1/6b/76/62/featured_preview_jt3_6.jpg","urlTitle":"Multi-Mouse Jar Trap (v.3)","urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":null,"__typename":"PrintType","user":{"id":"215531","handle":"LoboCNC","verified":true,"dateVerified":"2022-12-20T11:32:59.246558+00:00","publicUsername":"LoboCNC","avatarFilePath":"media/auth/avatars/83/83fa4edf-8c71-4707-be87-9ed0c3e0b0ed.jpg","badgesProfileLevel":{"profileLevel":21,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[{"id":"245793","created":"2022-05-10T14:31:11.133552+00:00","edited":null,"deleted":null,"isMake":false,"printer":null,"parent":{"id":"245791","__typename":"PrintCommentType"},"author":{"id":"222208","handle":"DavidLee_222208","verified":false,"dateVerified":null,"publicUsername":"David Lee","avatarFilePath":"media/auth/avatars/89/894be708-e18f-4e0c-9d84-155c5bbe480b.jpg","badgesProfileLevel":{"profileLevel":8,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[{"id":"222208","handle":"DavidLee_222208","__typename":"MentionListAssociationType"}],"text":"##user-222208## I used paper clips instead of filament for the axles, and I use peanut butter for bait.","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"132237","ratingAvg":"4.3333333333","ratingCount":9,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType"}]}}}

Multi-Mouse Jar Trap (v.3)
