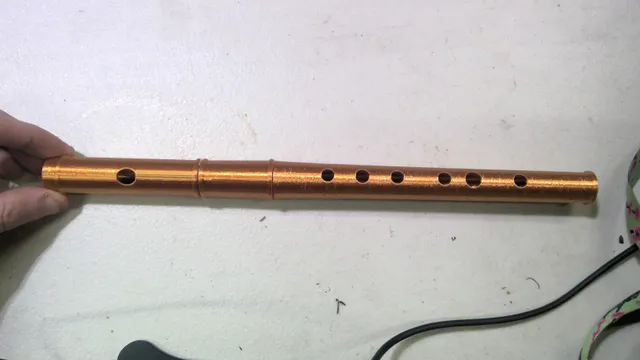

{"data":{"make":{"id":"2400502","created":"2025-02-08T01:51:10.330062+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"650","name":"Sovol SV06 Plus","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2715352","handle":"plumbo_2715352","verified":false,"dateVerified":null,"publicUsername":"Plumbo","avatarFilePath":"media/auth/avatars/4f/4f7cb5e6-b99d-4372-8857-d8e74050d601.png","badgesProfileLevel":{"profileLevel":9,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2248424","filePath":"media/comment_images/37/62e3c5-c762-4915-8d38-b98f30dd0d60/win_20250207_20_48_28_pro.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"I had closed up the resonator on this one before printing just out of preference. It plays very easily, but unfortunately a little out of tune in the higher octave. Not sure if it's something that can be fixed by filing the inside of the headstock to make it more conical, but I'm going to give it a tray and see if that fixes it!\n\nOther than that, the lower octave is very easy to get a sound out of and plays in tune throughout the octave. \n\nGlad to have this amazing flute from Axianov in a smaller size! Thanks for sharing Neale!!","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"1176813","ratingAvg":"5.0000000000","ratingCount":4,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"1176813","slug":"axianov-irish-piccolo","name":"Axianov Irish Piccolo","authorship":"reupload","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":4,"description":"

This piccolo was given away by @axianoff_2745170 as a free promotion when the Axianov Irish Flute was first released. Thanks to work from @Roman_2878361 and Anna Bryusova, these original STL files are now available to download!

Skip forward to 10:00 to see and hear the piccolo.

Printing

Print everything in the alignment of the STL files. Be careful to check for seams before printing! It is important to keep seams away from tone holes. Rear alignment worked well for me.

Print in PLA at 100% infill to most closely mimic the density of wood. I have one with 50% infill and it works fine, but more infill should in theory result in a better resonance, and may feel better to hold.

Use supports on the build plate for tone holes in the main body. Be sure to place a brim around the head.

Assembly

Wind with 0.55mm waxed thread, adding additional bits of thread for a secure joint. There are many guides online for thread-winding a flute joint.

Support the Modeler

You can donate to @axianoff at https://boosty.to/axianoff/donate

","category":{"id":"95","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"95","name":"Music","nameEn":"Music","description":"It all started with a knob for a DJ console. 3D printed instruments are all the rage now. Flute, violin, violoncello, trumpet, or holders for them.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-02-04T04:11:02.804565+00:00","firstPublish":"2025-02-03T20:57:17.810323+00:00","datePublished":"2025-02-04T04:11:02.785341+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"A piccolo version of the Axianov Irish flute","likesCount":66,"makesCount":5,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":369,"displayCount":1380,"filesCount":3,"privateCollectionsCount":35,"publicCollectionsCount":29,"pdfFilePath":"media/prints/1176813/pdfs/1176813-axianov-irish-piccolo-02e776cb-3cd7-4d34-bc87-16e617ca7262.pdf","commentCount":7,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"4068805","filePath":"media/prints/1176813/images/8855738_da528402-140b-4f55-b6e1-bfd9379b2f50_c2197cf2-50c5-4d7c-bfcb-a852bde25f02/pxl_20250131_144557259.jpg","rotation":180,"imageHash":"IAgWAYCoh4d5h/h4V3qPMfc=","imageWidth":800,"imageHeight":168,"__typename":"PrintImageType"},"images":[{"id":"4068805","filePath":"media/prints/1176813/images/8855738_da528402-140b-4f55-b6e1-bfd9379b2f50_c2197cf2-50c5-4d7c-bfcb-a852bde25f02/pxl_20250131_144557259.jpg","rotation":180,"imageHash":"IAgWAYCoh4d5h/h4V3qPMfc=","imageWidth":800,"imageHeight":168,"__typename":"PrintImageType"},{"id":"4068800","filePath":"media/prints/1176813/images/8855731_ba5d0b25-a9e0-4311-95bc-e3a8c1f3b20c_5016e00d-7b97-460e-9639-68127027acd7/piccolo_v141.png","rotation":0,"imageHash":"6fcFC4D6Qn6GaZdn+oWpX5g=","imageWidth":1536,"imageHeight":684,"__typename":"PrintImageType"},{"id":"4068799","filePath":"media/prints/1176813/images/8855732_08fd52c9-0980-467b-b9d1-0979a5647ac6_97395d96-01fc-43d8-84af-c1cdfa3937b8/piccolo_v14.png","rotation":0,"imageHash":"6vcFC4D4J6mKZYl3+IqIr4g=","imageWidth":1536,"imageHeight":684,"__typename":"PrintImageType"}],"imagesCount":3,"tags":[{"name":"flute","id":"85","__typename":"TagType"},{"name":"piccolo","id":"42806","__typename":"TagType"},{"name":"irish","id":"57665","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"4903865","filePreviewPath":"media/prints/1176813/previews/76db373911af9aac0a51a64f6db834264b646999.png","__typename":"STLType"},"license":{"id":"2","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"526597","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://drive.google.com/drive/folders/1au8AsJh5dnVq5kbzimsUZkqmPskE6NHq","urlAuthor":null,"urlImage":null,"urlTitle":"\u0438\u0440\u043b \u043f\u0438\u043a\u043a\u043e\u043b\u043e by Axianoff - Google Drive","urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","user":{"id":"241243","handle":"neale","verified":false,"dateVerified":null,"publicUsername":"neale","avatarFilePath":"media/auth/avatars/fc/fc8a85c8-bc67-46c9-80ef-5d0070f19147.png","badgesProfileLevel":{"profileLevel":17,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[{"id":"2401995","created":"2025-02-08T17:29:13.821934+00:00","edited":null,"deleted":null,"isMake":false,"printer":{"id":"620","name":"Prusa MK4","__typename":"PrinterTypeType"},"parent":{"id":"2400502","__typename":"PrintCommentType"},"author":{"id":"241243","handle":"neale","verified":false,"dateVerified":null,"publicUsername":"neale","avatarFilePath":"media/auth/avatars/fc/fc8a85c8-bc67-46c9-80ef-5d0070f19147.png","badgesProfileLevel":{"profileLevel":17,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[{"id":"2715352","handle":"plumbo_2715352","__typename":"MentionListAssociationType"}],"text":"##user-2715352## looks great in shiny brass!","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"1176813","ratingAvg":"5.0000000000","ratingCount":4,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType"},{"id":"2410007","created":"2025-02-11T14:10:09.397636+00:00","edited":null,"deleted":null,"isMake":false,"printer":null,"parent":{"id":"2400502","__typename":"PrintCommentType"},"author":{"id":"2745170","handle":"axianoff_2745170","verified":false,"dateVerified":null,"publicUsername":"axianoff","avatarFilePath":"","badgesProfileLevel":{"profileLevel":1,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[{"id":"2715352","handle":"plumbo_2715352","__typename":"MentionListAssociationType"}],"text":"##user-2715352## Read the notes about the flute holes setup in the FoMRHI. Partial undercuts can be used to adjust one octave without affecting another.","rating":null,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"1176813","ratingAvg":"5.0000000000","ratingCount":4,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType"}]}}}
