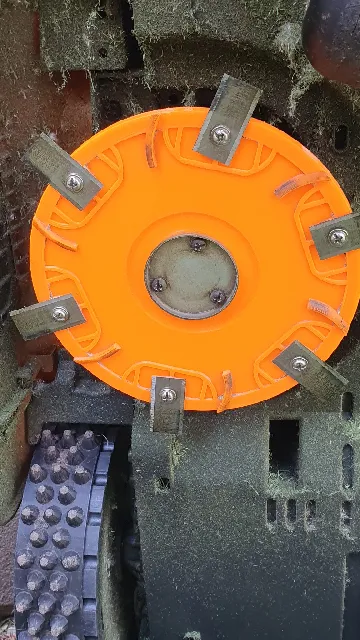

{"data":{"make":{"id":"238395","created":"2022-05-04T13:16:50.845886+00:00","edited":null,"deleted":null,"isMake":true,"printer":null,"parent":null,"author":{"id":"256192","handle":"Trouble_256192","verified":false,"dateVerified":null,"publicUsername":"Trouble","avatarFilePath":"","badgesProfileLevel":{"profileLevel":7,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"146368","filePath":"media/comment_images/c2/f839c6-4389-4e8a-bd0b-c088162e2b15/worx-disc.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"It runs 1 cm higher than the original as the disk itself is flat, while the original has a blowout of this size","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"161282","ratingAvg":"4.5000000000","ratingCount":6,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"161282","slug":"worx-landroid-customizable-cutting-disc","name":"Worx Landroid Customizable Cutting Disc","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.5000000000","myRating":null,"ratingCount":6,"description":"

Open in Fusion 360 and you will find parameters under the modification menu. See screenshot.

You can change the diameter, the thickness of the disc, the number of blades, etc.

I used CNC-Kitchen short m4 thread insert. Don't forget to increase wall thickness to at least the recommended 2.1mm.

Printed in both PLA and PETG, others should work too. Printed with supports for holding up inside screw holes.

I have not tried printing the original size of 146mm but it should work too.
I have not tried printing the 1500L version of 200mm but I do not see any reason why it shouldn't work. If someone can confirm they work I'll make an update.
I Have not yet tried the 7 blades 160mm version. I printed a mock-up to test the dimensions.

Updates:
2025: I reuploaded the fusion360 project, a bug prevented some sizes to work, also included hex nut But this is UNTESTED!

2024: I reuploaded the fusion360 project with working parametric changes.
2023: I discovered a mistake in the project file and the rendered files. Updated so changing parameters should work better now. Uploading new STL files too.

","category":{"id":"53","path":[{"id":"3","name":"Household","nameEn":"Household","description":"Marvel at these impressive interior and exterior decors. Download print-in-place items, vases of various shapes, or geometrical lamps.","__typename":"CategoryType"},{"id":"53","name":"Outdoor & Garden","nameEn":"Outdoor & Garden","description":"Interested in gardening? Grow herbs with ingenious planters or print avocado seed floaters. Breathe life into your garden with bird feeders and windmills.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-02-17T20:22:02.230606+00:00","firstPublish":"2022-04-03T17:03:57.510178+00:00","datePublished":"2025-02-17T20:22:02.197026+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Customizable cutting disc for Worx Landroid both from original 146mm up to 200mm+. 3-8 blades","likesCount":122,"makesCount":8,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":1158,"displayCount":6844,"filesCount":16,"privateCollectionsCount":117,"publicCollectionsCount":92,"pdfFilePath":"media/prints/161282/pdfs/161282-worx-landroid-customizable-cutting-disc-8e59a99c-5983-42c2-ae36-1d216cfe7747.pdf","commentCount":50,"userGcodeCount":0,"remixCount":2,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"757344","filePath":"media/prints/161282/images/1503794_eefafb00-01bf-4cc2-87d6-b7c5cea67c40/img_20220403_180712673.jpg","rotation":0,"imageHash":"U3kKNZAdVId4d4hgiVh3hwdlcnAn","imageWidth":4080,"imageHeight":3072,"__typename":"PrintImageType"},"images":[{"id":"757344","filePath":"media/prints/161282/images/1503794_eefafb00-01bf-4cc2-87d6-b7c5cea67c40/img_20220403_180712673.jpg","rotation":0,"imageHash":"U3kKNZAdVId4d4hgiVh3hwdlcnAn","imageWidth":4080,"imageHeight":3072,"__typename":"PrintImageType"},{"id":"757343","filePath":"media/prints/161282/images/1503793_5504bca3-ab79-4aee-a352-2ff1b83ac562/img_20220403_180852968_hdr.jpg","rotation":0,"imageHash":"WsoKNZICRoZrZamFeJV3hjCKB6R4","imageWidth":1600,"imageHeight":1200,"__typename":"PrintImageType"},{"id":"757345","filePath":"media/prints/161282/images/1503786_8db6583c-febf-4b9a-802c-6ecf848b23aa/img_20220403_180829181.jpg","rotation":0,"imageHash":"1zgOJYg/c3mId4h2iZh4dwhUhWBW","imageWidth":4080,"imageHeight":3072,"__typename":"PrintImageType"},{"id":"757341","filePath":"media/prints/161282/images/1503776_3708ba6a-e76c-448f-bbee-1218f4c2ad02/fusion-parameters.png","rotation":0,"imageHash":"+/cFBYB1Z3aAiHhHhmmGaWIgNAZD","imageWidth":733,"imageHeight":568,"__typename":"PrintImageType"},{"id":"757342","filePath":"media/prints/161282/images/1503775_726111f4-3bdf-4877-a020-c6d9f445fab8/img_20220403_180455091.jpg","rotation":0,"imageHash":"VUkKLYYLZHiJeIlhiXp2ZRZzUEIH","imageWidth":4080,"imageHeight":3072,"__typename":"PrintImageType"}],"imagesCount":5,"tags":[{"name":"worx","id":"11686","__typename":"TagType"},{"name":"landroid","id":"30435","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"660743","filePreviewPath":"media/prints/161282/stls/1505804_e2f45985-73ce-40a5-ba45-efb341ff9b82/worx-cutting-disc-v3_preview.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","user":{"id":"220372","handle":"Damme_220372","verified":false,"dateVerified":null,"publicUsername":"Damme","avatarFilePath":"media/auth/avatars/e0/e0a8a297-e6bf-4300-ac29-9547922e05e0.gif","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[{"id":"238810","created":"2022-05-04T18:10:57.736696+00:00","edited":"2022-05-04T18:15:32.067506+00:00","deleted":null,"isMake":false,"printer":null,"parent":{"id":"238395","__typename":"PrintCommentType"},"author":{"id":"220372","handle":"Damme_220372","verified":false,"dateVerified":null,"publicUsername":"Damme","avatarFilePath":"media/auth/avatars/e0/e0a8a297-e6bf-4300-ac29-9547922e05e0.gif","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[{"id":"256192","handle":"Trouble_256192","__typename":"MentionListAssociationType"}],"text":"##user-256192## Did you print the spacer also? or was my math off maybe :) I don't go after the height since I just tune until I'm happy.","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"161282","ratingAvg":"4.5000000000","ratingCount":6,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType"},{"id":"238847","created":"2022-05-04T18:39:06.630181+00:00","edited":null,"deleted":null,"isMake":false,"printer":null,"parent":{"id":"238395","__typename":"PrintCommentType"},"author":{"id":"256192","handle":"Trouble_256192","verified":false,"dateVerified":null,"publicUsername":"Trouble","avatarFilePath":"","badgesProfileLevel":{"profileLevel":7,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[{"id":"220372","handle":"Damme_220372","__typename":"MentionListAssociationType"}],"text":"##user-220372## My bad, I did not notice the spacer ... It must be perfect with it, thank you!","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"161282","ratingAvg":"4.5000000000","ratingCount":6,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType"}]}}}
