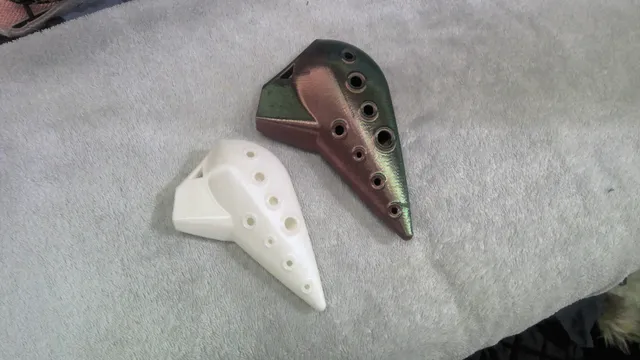

{"data":{"make":{"id":"2382812","created":"2025-02-01T16:15:42.965721+00:00","edited":"2025-02-01T16:16:44.959314+00:00","deleted":null,"isMake":true,"printer":{"id":"650","name":"Sovol SV06 Plus","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2715352","handle":"plumbo_2715352","verified":false,"dateVerified":null,"publicUsername":"Plumbo","avatarFilePath":"media/auth/avatars/4f/4f7cb5e6-b99d-4372-8857-d8e74050d601.png","badgesProfileLevel":{"profileLevel":9,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2228868","filePath":"media/comment_images/36/fefec9-9588-402b-a345-e68e7af514cd/win_20250201_11_16_27_pro.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"I've printed most of the free ocarina models out there, and this is definitely the best one I've found. Plays easily and in tune, has a wonderful tone, and sizes up / down very nicely. I'd recommend this as a must-print for anyone with a new 3d printer, or anyone at all interested in wind instrument design. \n\nOn top of that, E.C.3D is super friendly, talented, and knowledgeable, and was very helpful with all the questions I had about how these are designed. (Thank you again!!!)\n\nI've made probably 5 of these as gifts for friends and family, and they're always a hit. Printing at 2mm layer height, 100% infill, have used Normal PLA, Matte, and Silk, and found all of them work, with the Matte having a surprisingly different (woodier) tone.","rating":null,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"412936","ratingAvg":"4.9285714286","ratingCount":14,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"412936","slug":"10-hole-ocarina-v0n3-c5-f6","name":"10 Hole Ocarina V0N3 C5 - F6","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9285714286","myRating":null,"ratingCount":14,"description":"

I will publish new Ocarinas only on MakerWorld.

https://makerworld.com/en/@E.CAN3

This ocarina is designed to be easy printed and to be small enough to fit on my VORON0.

It is supposed to be printed at the mouthpiece without the need of support.

The internal design helps to reduce airy high notes( Better sound, no Acute Bend).

The internal design is inspired by an idea from Robert Hickman - Ocarina volume bypass.

It is tuned: C5 up to F6

If you like it or have any problems with this ocarina, please leave a comment.

Print Settings

Printer Brand:

VoronDesign

Printer:

Voron 0

Rafts:

I use Brim

Supports:

Resolution:

0.2

Infill:

20%

Filament: Sunlu PLA+

Notes:

0.4 mm nozzle
0.8mm wall thickness

4 Top and Bottom layers

Wall Ordering: Outside To Inside

Walls before Infill.

Bigger or smaller nozzles may change the tune.

Any other Wall Ordering may change the size of the airway and the soundhole resulting in a to small Airway and/or soundhole.

Try to avoid stringing! It is hard to remove.

The soundhole and the airway have to be printed clean. Blobs or other errors in this area can mess everything up.

I printed it with 80mm/s in about 1h and 40 minutes on a VORON0
