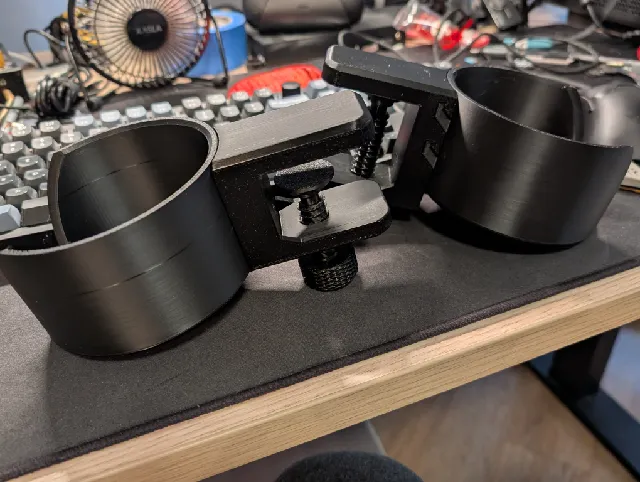

{"data":{"make":{"id":"2370683","created":"2025-01-27T23:14:07.363718+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"711","name":"Bambu Lab A1","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2391618","handle":"JeremyKillor_2391618","verified":false,"dateVerified":null,"publicUsername":"Jeremy Killoran","avatarFilePath":"media/auth/9cff547f-7533-41de-b0c5-33142c648ea4.jpg","badgesProfileLevel":{"profileLevel":9,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2216043","filePath":"media/comment_images/30/64d093-2dd2-4d3b-ad23-fc1c64048153/pxl_20250116_192025477.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Well thought out - thank you!","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"88860","slug":"cup-holder-clamp-3-no-supports","name":"Cup Holder Clamp 3 (NO SUPPORTS)","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9375000000","myRating":null,"ratingCount":16,"description":"

Edit: 20 Jan 2023 - Added taller cup holder
Edit: 10 Dec 2022 Added a longer screw 20mm longer than original screw
Edit:3/25/2022 - Added a clamp with max desk thickness of 60mm

Edit: 1/14/22 added larger clamp opening for a max desk thickness of 45mm.

This is the latest version of the desk clamp cup holder. Previous versions below. This one DOES NOT require any supports of any kind. You can clamp it to your desk, and slide/rotate the cup holder onto the clamp. This newer design allows for a much stronger clamp due to the new orientation of the layer lines. There are a few test pieces for those who desire to print them before actually printing the entire thing for filament savings to check your fit. The tolerances are quite generous from .2mm .35mm. The pieces are all oriented correctly already. Max desk thickness is 30mm.

Printing Tips:

The clamp piece should be printed sideways for a much stronger clamp in regard to layer line direction and is recommended to print at 2mm layer height or smaller for the screw hole overhang. Ensure adequate cooling for the screw hole. I don't recommend using and supports in that screw hole since it could obstruct the smoothness of the screw operation.

I recommend using at least 3 walls/shells/perimeters for the clamp, and at least 35% infill. For the cup, recommend at 3 walls, and 15-20% infill should work fine.

If you have any questions, feel free to let me know. Posting any makes would be appreciated.

First Version: https://www.thingiverse.com/thing:4742627

Second Version: https://www.thingiverse.com/thing:5147623
