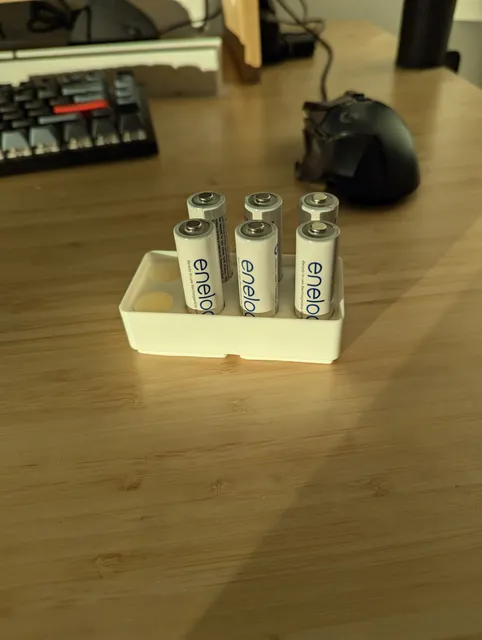

{"data":{"make":{"id":"2356151","created":"2025-01-22T14:25:29.196714+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"495","name":"Elegoo Neptune 3 Pro","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2479499","handle":"flyingtoaste_2479499","verified":false,"dateVerified":null,"publicUsername":"flyingtoaster0","avatarFilePath":"","badgesProfileLevel":{"profileLevel":7,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2198404","filePath":"media/comment_images/5b/b089a7-f3f3-485b-bf3c-db831405f299/pxl_20250122_131713696.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Exactly what I needed! I used the .scad file to give them a little more clearance. Perfect model.\n\nThanks!","rating":null,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"212451","slug":"gridfinity-aa-battery-containers","name":"Gridfinity AA Battery Containers","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.3870967742","myRating":null,"ratingCount":31,"description":"

I have a bunch of Panasonic Eneloop AA batteries and I've learned that they're slightly wider than a standard AA battery. As a result, I figured I'd go ahead and design my own #gridfinity container. I was able to modify Jamie's OpenSCAD Gridfinity Model and clumsily tweak it to hold my AA batteries tightly enough .

I tried it with a few other standard AA batteries that I have around the house and it works well for them, but depending on their diameter, and depending on the differences between our 3D-printers' calibrations they may fit a bit tighter or looser for you.

I designed this intentionally to be on the tight side. I don't want my batteries coming loose when I pull the bin out of the drawer.

This is a parameterized design which can be customized to meet your own needs:

Add additional sets (3) of AAA batteries.
Adjust the size of the battery holes.
Add or Remove holes for magnets.

All customizations

Download and install OpenSCAD
Download and unzip All Model Files
Run OpenSCAD and open the gridfinity_battery_aa.scad file.

Adjusting the hole size to fit your batteries:

Measure your batteries with a caliper and update the battery_diameter variable (default is 14.5mm)

Adding magnet holes

Change the magnet_holes value to true. (default is false)

Export the STL

Save the changes to the .SCAD file
Render in OpenSCAD (Design > Render)
Export updated the STL (Design > Export)

","category":{"id":"50","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"50","name":"Organizers","nameEn":"Organizers","description":"Tidy up your tools and small parts and keep track of them. Print plastic storage cases, modular organizers, cable spools, drawer system, racks and more.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-04-11T21:18:46.187752+00:00","firstPublish":"2022-05-23T22:36:15.645111+00:00","datePublished":"2024-04-11T21:18:46.155124+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"summary":"A collection of #gridfinity containers (1x1 and 2x1) to hold AA batteries.","likesCount":160,"makesCount":42,"liked":null,"printDuration":"8.92","numPieces":4,"weight":"95.00","nozzleDiameters":["0.40"],"usedMaterial":null,"layerHeights":["0.20"],"mmu":false,"materials":[{"id":"1","name":"PLA","__typename":"MaterialTypeType"}],"dateFeatured":null,"downloadCount":2012,"displayCount":6614,"filesCount":10,"privateCollectionsCount":186,"publicCollectionsCount":243,"pdfFilePath":"media/prints/212451/pdfs/212451-gridfinity-aa-battery-containers-f9137aed-4244-421a-94c0-00abae76ed85.pdf","commentCount":71,"userGcodeCount":0,"remixCount":10,"canBeRated":false,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"image":{"id":"962308","filePath":"media/prints/212451/images/1945986_49370b91-e115-45e6-930c-e81a389b3d40/img_0473.jpg","rotation":0,"imageHash":"1yYGdwhKRqhQlXhgrSrqpkdneQd4t4AM","imageWidth":2614,"imageHeight":2687,"__typename":"PrintImageType"},"images":[{"id":"962308","filePath":"media/prints/212451/images/1945986_49370b91-e115-45e6-930c-e81a389b3d40/img_0473.jpg","rotation":0,"imageHash":"1yYGdwhKRqhQlXhgrSrqpkdneQd4t4AM","imageWidth":2614,"imageHeight":2687,"__typename":"PrintImageType"},{"id":"988177","filePath":"media/prints/212451/images/1999815_5c2a63a6-b6ad-4c35-8cae-ec9a14bcf4d9/img_0582.jpg","rotation":0,"imageHash":"lycGfwpJt4hglniDimbKlod1dghnuIAI","imageWidth":3021,"imageHeight":3021,"__typename":"PrintImageType"},{"id":"962306","filePath":"media/prints/212451/images/1945980_7b6bfbd0-9c60-49f1-ae87-b3b9782ad89b/img_0474.jpg","rotation":0,"imageHash":"lhYKhwiYiHdweIh5hpeYqHh4dQmIx4AP","imageWidth":2691,"imageHeight":2691,"__typename":"PrintImageType"},{"id":"988176","filePath":"media/prints/212451/images/1999816_c08901ef-4fe2-4b4c-bb29-d7bb6f8cab58/img_0583.jpg","rotation":0,"imageHash":"WAYKVwa5h4hwh3h1hneI54eLeQxn94QM","imageWidth":3021,"imageHeight":3021,"__typename":"PrintImageType"},{"id":"962303","filePath":"media/prints/212451/images/1945978_6b65ec54-4182-4898-93d7-4e5bca0da8ea/img_0453.jpg","rotation":0,"imageHash":"VBgKFwKWqKdghXd5mVWZh3l4Vx335WAP","imageWidth":1440,"imageHeight":1440,"__typename":"PrintImageType"},{"id":"962304","filePath":"media/prints/212451/images/1945977_7f4e4f1a-97c5-4dde-abef-448260ad3f7d/img_0472.jpg","rotation":0,"imageHash":"GQgKJwSt1PiViItjqVqHeKeUi2/Y+IYM","imageWidth":2463,"imageHeight":2465,"__typename":"PrintImageType"}],"tags":[{"name":"battery","id":"1973","__typename":"TagType"},{"name":"aabattery","id":"7821","__typename":"TagType"},{"name":"eneloop","id":"15775","__typename":"TagType"},{"name":"gridfinity","id":"76163","__typename":"TagType"},{"name":"gridfinitybin","id":"126705","__typename":"TagType"}],"thingiverseLink":null,"filesType":"GCODE","previewFile":{"id":"3548076","filePreviewPath":"media/prints/212451/previews/9a7dfc1f5e3d5a2c5226014329b8920d7a48d1fa.png","__typename":"STLType"},"license":{"id":"7","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"404110","modelId":"174346","modelName":"Gridfinity OpenSCAD Model","modelAuthor":{"id":"243795","handle":"Jamie","verified":false,"publicUsername":"Jamie","__typename":"UserType"},"model":{"id":"174346","name":"Gridfinity OpenSCAD Model","slug":"gridfinity-openscad-model","datePublished":"2022-11-30T23:42:16.268955+00:00","image":{"id":"807073","filePath":"media/prints/174346/images/1637711_4f4f978a-e11c-43fe-8e64-dfbf715d7859/gridfinity_basic_cup.png","rotation":0,"imageHash":"LRoOLYL4l5dYp4d+hnaKixmKoJEJ","imageWidth":768,"imageHeight":537,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"7","name":"Creative Commons \u2014 Public Domain","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Updated the Gridfinity OpenSCAD Model to create Gridfinity Bins that could be used to store AA batteries.

","__typename":"PrintType","user":{"id":"10068","handle":"briancmoses","verified":false,"dateVerified":null,"publicUsername":"briancmoses","avatarFilePath":"media/auth/avatars/73/736394e8-4b0d-40ee-b17b-f9a8fd0224ed.jpg","badgesProfileLevel":{"profileLevel":23,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[{"id":"2356259","created":"2025-01-22T15:21:46.512548+00:00","edited":null,"deleted":null,"isMake":false,"printer":null,"parent":{"id":"2356151","__typename":"PrintCommentType"},"author":{"id":"10068","handle":"briancmoses","verified":false,"dateVerified":null,"publicUsername":"briancmoses","avatarFilePath":"media/auth/avatars/73/736394e8-4b0d-40ee-b17b-f9a8fd0224ed.jpg","badgesProfileLevel":{"profileLevel":23,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[],"mentions":[],"text":"Looks fantastic! I'm glad the source came in handy so you could tweak it to your exact needs!","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType"}]}}}
