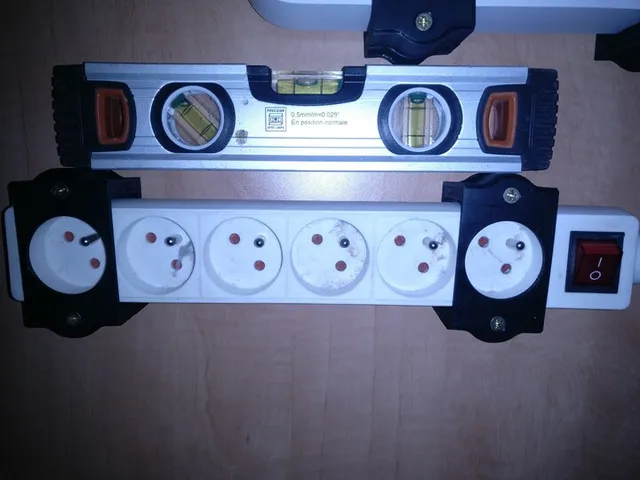

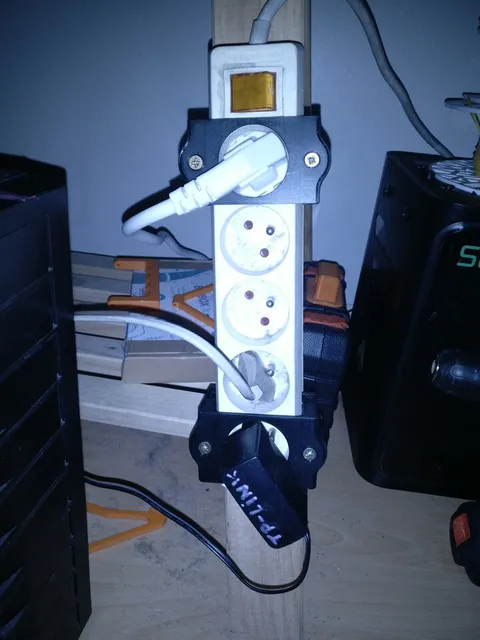

{"data":{"make":{"id":"2317607","created":"2025-01-07T18:15:13.417909+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"620","name":"Prusa MK4","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"198756","handle":"PapaYankee","verified":false,"dateVerified":null,"publicUsername":"PapaYankee","avatarFilePath":"media/auth/avatars/64/64a67ef9-b42c-4ecd-8764-b88bb7e2b00b.jpg","badgesProfileLevel":{"profileLevel":20,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2156777","filePath":"media/comment_images/bd/8b9808-7ee1-47ba-851e-0e77353cac9f/fixation-nourrice-1.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"2156776","filePath":"media/comment_images/f3/20b172-b3f7-446f-83f0-a2a0a39319be/fixation-nourrice-2.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Simple and efficient. A great design. I also remixed it for a double-width power strip (\u200ahttps://www.printables.com/model/1138963-robust-power-double-width-mount)","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"633207","ratingAvg":"5.0000000000","ratingCount":3,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"633207","slug":"robust-power-strip-mount","name":"Robust Power Strip Mount","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":3,"description":"

Robust power strip mount.

Advantages:

Firm clamping mechanism - no wiggling.
Mount with screws or cable ties on walls, panels, etc..
Robust design for heavy use (e.g. in a workshop)

Designs:

variable number of outlets: bracket_single.stl
3-outlet power strip: bracket_triple.stl (Note: the separation distance between the outlets is 4mm)

Compatible power strips: tested for EU plug power strips only, e.g. Ikea Koppla and equivalent cheap power strips from a hardware store.

width: max. 55mm
height: 39-45mm

If you need this mount for a different size of power strips, please feel free to contact me! I am happy to add e.g. US and UK versions.

Additional Material needed:

Wood Screws diameter 4-4.5mm, length 35-45mm

Changelog:

2020_02_03: Added versions without flange.

Print Settings

Printer Brand:

Anycubic

Printer:

All-metal Mega

Rafts:

Supports:

Resolution:

0.2

Infill:

25%

Filament: basicfil PETG red

Category: Organization
