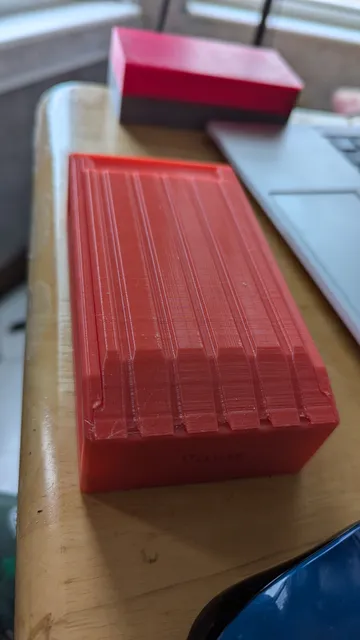

{"data":{"make":{"id":"2314544","created":"2025-01-06T16:58:16.728153+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"54040","handle":"Mupshot","verified":false,"dateVerified":null,"publicUsername":"Mupshot","avatarFilePath":"media/auth/avatars/10/103260c9-c1fc-4025-ad06-9c5e7b02b9e5.jpg","badgesProfileLevel":{"profileLevel":18,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2153501","filePath":"media/comment_images/4d/bd457b-0127-40e1-a617-e17c4e1e8e0b/1000001724.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"2153502","filePath":"media/comment_images/14/3d859f-71b0-4e36-bb2d-f3e334a5b492/1000001722.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"2153503","filePath":"media/comment_images/2d/efbfba-95a5-4d02-8ff7-2b086bc35aec/1000001723.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"I found this related model suggestion when I was reviewing my models. I like how sturdy it is. But it's heavy and bulky otherwise. But when I showed my wife how it functions, she was impressed, as was I. Printed in petg","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"1006538","slug":"9mm-ammunition-storage-case","name":"9mm Ammunition Storage Case","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.6000000000","myRating":null,"ratingCount":5,"description":"

The two original Print files, \u201c9mm lid 1.1\u201d Max\" and \u201c9mm case 1.1\u201d Max\" Will ONLY fit rounds that are at or less than 1.1 inches. (Hollow points some ball ammunition)

The two new print files \u201c9mm Top 1.169 Max\u201d and \u201c9mm Case 1.169 Max\u201d should allow ANY standered 9mm round to fit without lid clearance issues. If your rounds are longer than 1.169 inches you probably have bigger issues than them not fitting in this case.

Print files can be printed on the same plate but if you are having surface quality issues I suggest printing separately.

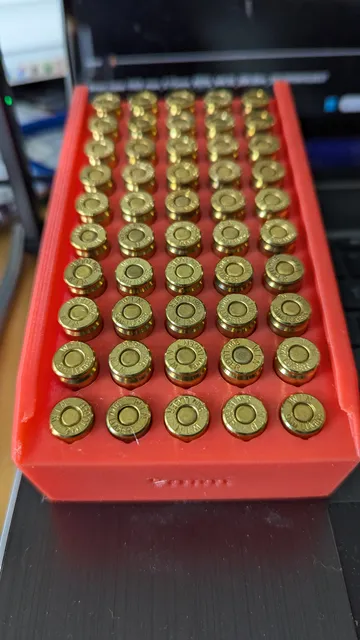

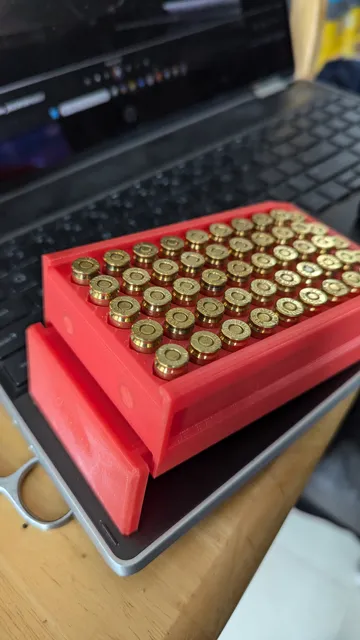

Magnets (8x2mm) can be incorporated into the lid and case during printing. They give a satisfying \"click\" when the box is slid shut and do a good job keeping it closed. When the lid is removed it is inserted into the slot in the base of the case to push the rounds up for access.

My print settings: (Your mileage may vary)

0 .4mm nozzle
0.12 layer thickness
Matte PLA
Print both the case and lid vertically, no supports should be required.
I suggest disabling \u201cslow down for overhangs\u201d settings unless your pressure advance and flow rate settings are really zeroed in.
As satisfying as they are, magnets are not 100% necessary for this print and can be skipped if desired. The case will print fine without them.

Magnet Install:

The magnets are installed into the case during the printing process.
When slicing locate the last print layer before the magnet holes are caped (will depend on your layer thickness) and add a pause at that layer.

For Bambu studio and Orca slicer, this can be done by right-clicking the plus sign (+) on the layer slider on the right side of the preview screen and selecting \u201cAdd pause\u201d

Once the print has paused at the designated layer, drop the magnets in and resume the print.
- Pay close attention to the polarity of the magnets when installing them in the top and case! I suggest testing and marking the side of the magnet you want face down/up.
- Also verify that the magnet wont pop out and stick to your print head\u2026 advisably before you start printing\u2026

If you have made it this far down\u2026

As I\u2019m currently working towards an engineering degree, time for extensive model testing and refinement is a bit scarce. As a result, some aspects of the design might not be fully optimized, and occasional oversights can happen. For that reason, this model is and will remain available as a free download. I will continue to make improvements when possible and any feedback on the model is invaluable and always appreciated.

If you feel the design and final print have met your expectations, a \u201ccoffee\u201d donation would be an appreciated gesture. You can contribute via the link here if you\u2019re so inclined. https://buymeacoffee.com/overton_prints

","category":{"id":"50","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"50","name":"Organizers","nameEn":"Organizers","description":"Tidy up your tools and small parts and keep track of them. Print plastic storage cases, modular organizers, cable spools, drawer system, racks and more.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-11-10T00:24:38.165994+00:00","firstPublish":"2024-09-14T22:43:53.324894+00:00","datePublished":"2024-11-10T00:24:38.148206+00:00","dateCreatedThingiverse":null,"nsfw":false,"summary":"Storage for 50 rounds of 9mm. \nPrint incorporated magnets for lid retention.\nRounds slide up via slot in base.","likesCount":501,"makesCount":6,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":664,"displayCount":6698,"filesCount":4,"privateCollectionsCount":346,"publicCollectionsCount":201,"pdfFilePath":"media/prints/1006538/pdfs/1006538-9mm-ammunition-storage-case-c8d0a2b5-15e0-4e71-901a-54d27536a4eb.pdf","commentCount":29,"userGcodeCount":0,"remixCount":1,"canBeRated":false,"printer":null,"image":{"id":"3549664","filePath":"media/prints/1006538/images/7662714_4684fd29-a3c1-4171-9aa6-ab607d8df76e_83e1216f-3052-4b04-b565-f037fdf1420d/20240914_164131r.jpg","rotation":0,"imageHash":"qRgOHYL4iHdol4ebZahYifpbjc/G","imageWidth":1829,"imageHeight":1372,"__typename":"PrintImageType"},"images":[{"id":"3549664","filePath":"media/prints/1006538/images/7662714_4684fd29-a3c1-4171-9aa6-ab607d8df76e_83e1216f-3052-4b04-b565-f037fdf1420d/20240914_164131r.jpg","rotation":0,"imageHash":"qRgOHYL4iHdol4ebZahYifpbjc/G","imageWidth":1829,"imageHeight":1372,"__typename":"PrintImageType"},{"id":"3549665","filePath":"media/prints/1006538/images/7662716_b356f8d2-c4c9-4de2-9f40-3c5599c9c4ec_325dd31b-4510-4ab6-9442-8066790d47c3/20240914_163207r.jpg","rotation":0,"imageHash":"XggGFQI0ll93Zr2HhnWXN8dof3z2","imageWidth":1336,"imageHeight":1783,"__typename":"PrintImageType"},{"id":"3549667","filePath":"media/prints/1006538/images/7662717_eb978399-7073-47a0-a07a-506563640f3d_40a9709f-6cd7-41a2-9ccb-b69678297e4e/20240914_163738r.jpg","rotation":0,"imageHash":"bRgGFwL2mImthHefdlWGp2d1h0/N8+gK","imageWidth":1738,"imageHeight":1738,"__typename":"PrintImageType"},{"id":"3549669","filePath":"media/prints/1006538/images/7662718_73fad5c8-5a58-43b6-a138-50fd71235eba_6e6b1d74-8086-4c3a-8154-e181159e5c99/20240914_163912r.jpg","rotation":0,"imageHash":"qxgKHYLFipmZaIefhXd3maaBXwf3","imageWidth":1889,"imageHeight":1416,"__typename":"PrintImageType"},{"id":"3549663","filePath":"media/prints/1006538/images/7662719_99483386-d213-4a91-93f7-60c0843abe04_604393fd-12a1-4934-87a1-fee2ec95d512/20240914_164031r.jpg","rotation":0,"imageHash":"aAgKJISXl5q1WXd/dTeXpI9Z+g==","imageWidth":2138,"imageHeight":1203,"__typename":"PrintImageType"},{"id":"3549668","filePath":"media/prints/1006538/images/7662720_5b57cd50-0fe0-439b-b477-ffa38558d414_8cfb3bc3-f091-4acc-b62f-c1f080f2e67f/20240914_164055r.jpg","rotation":0,"imageHash":"pxgGLQT9eW14JlloWY4Dl/aJW5+Z","imageWidth":1402,"imageHeight":1869,"__typename":"PrintImageType"},{"id":"3549666","filePath":"media/prints/1006538/images/7662715_1ee4911a-8f6f-4a01-be9e-36df096f8d80_7046866a-70bd-464c-8a23-e069035d3890/20240914_164210r.jpg","rotation":0,"imageHash":"aggOFIL2aXh1lniKdYf2dElfqQ==","imageWidth":2237,"imageHeight":1259,"__typename":"PrintImageType"}],"tags":[{"name":"box","id":"65","__typename":"TagType"},{"name":"organizer","id":"66","__typename":"TagType"},{"name":"case","id":"233","__typename":"TagType"},{"name":"ammo","id":"1002","__typename":"TagType"},{"name":"storage","id":"1916","__typename":"TagType"},{"name":"ammunition","id":"8759","__typename":"TagType"},{"name":"9mm","id":"8763","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"4215079","filePreviewPath":"media/prints/1006538/previews/398d76c1c5c601753398fce276bde90aa1849fb8.png","__typename":"STLType"},"license":{"id":"3","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"2243171","handle":"JOverton_2243171","verified":false,"dateVerified":null,"publicUsername":"J.Overton","avatarFilePath":"media/auth/avatars/22/2241fa36-73e9-412e-bd07-0aecbc84d2a1.jpg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

9mm Ammunition Storage Case
