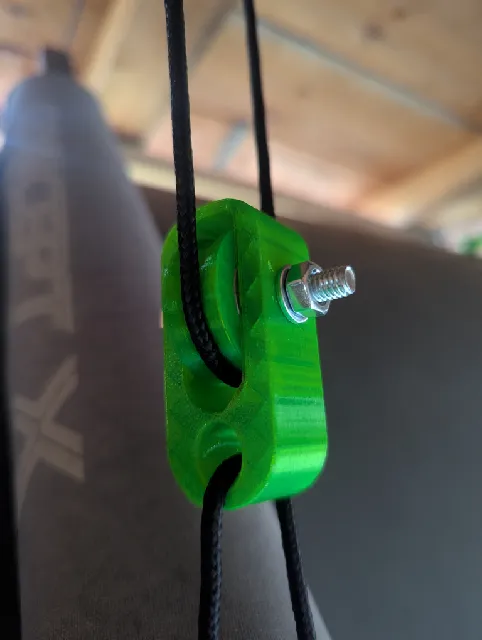

{"data":{"make":{"id":"2292736","created":"2024-12-30T19:33:21.411110+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"863161","handle":"CanCarloDortb_863161","verified":false,"dateVerified":null,"publicUsername":"Can-Carlo D\u00f6rtbudak","avatarFilePath":"media/auth/bf1d1f2f-3643-44f5-b9bc-664e247f7e18.jpg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2128739","filePath":"media/comment_images/40/aa78d4-5530-4577-9d28-3463955242c0/pxl_20241214_121205498.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Perfekte Umlenkrolle! In Prusa PETG gedruckt verrichtet sie ihre Dienste im Schuppen.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"967315","slug":"pulley-small-umlenkrolle-klein","name":"Pulley small | Umlenkrolle (klein)","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":2,"description":"

I printed all parts with 6 perimeters and a layer height of 0.4mm and without support.

For assembly, two 608 ZZ ball bearings, an M6 x 35 screw, two suitable washers (preferably ISO 7093) and an M6 nut are required.

The main dimensions and a section can be seen in the following views.

If you have any further questions, please get in touch.

Gedruckt hab ich alle Teile mit 6 Perimeter und eine Layerh\u00f6he von 0,4mm und ohne Support.

F\u00fcr den Zusammenbau werden zwei Kugellager 608 ZZ, eine M6 x 35 Schraube ,zwei passende Unterlegscheiben (vorzugsweise ISO 7093) und eine M6 Mutter ben\u00f6tigt.

Die Hauptma\u00dfe und ein Schnitt sind in den folgenden Ansichten zu sehen.

Bei weiteren Fragen melde dich gerne.

Links to the products (affiliate links) / Links zu den Produkten (Affiliate-Links):

ball bearing / Kugellager 608 ZZ - https://amzn.to/3M1cepq

Screw / Schraube M6 x 35 - https://amzn.to/3WX4mf2

Washer / Unterlegscheibe - 6mm - https://amzn.to/3SJ4Tyy

Nut / Mutter M6 - https://amzn.to/4fDG7K8
