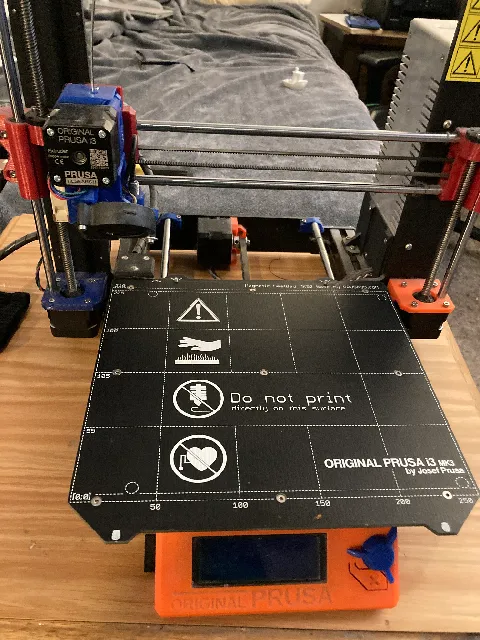

{"data":{"make":{"id":"2186349","created":"2024-11-15T00:27:05.148796+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"1","name":"Prusa MK3/S/S+","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2587535","handle":"Bryan_2587535","verified":false,"dateVerified":null,"publicUsername":"Bryan","avatarFilePath":"media/auth/avatars/1a/1adba13f-8323-4988-80f9-43bbdd157ef0.jpg","badgesProfileLevel":{"profileLevel":5,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2013410","filePath":"media/comment_images/74/90a7ca-d4ea-4437-9e04-d9277781bd72/img_06201.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"One of the Z mounts broke during our move from alaska to washington. It's nice to be able to just print spare parts.","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"57217","slug":"i3-mk3s-printable-parts","name":"i3 MK3S+ printable parts","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9469387755","myRating":null,"ratingCount":490,"description":"

All printable parts for your Original Prusa i3 MK3S+
Sorted by kit assembly manual chapters. You can use the file list and folder structure here to prepare parts in the same order as you will need them according to the guide.

Attention, y-rod-holder is present 4 times in the printer. If you plan to print the whole kit, print this part 4x. Look for a number in the brackets in the file description.

Print instructions

PrusaSlicer's default PETG 0.2mm presets.

For fan-shroud part, we recommend Prusament ASA / PC-Blend with default settings and 5mm brim if necessary.
The fan-shroud STL file includes an inner support rim that needs to be removed after printing. It can be easily removed with needle-nose pliers, a knife, or flush cutters together with the brim. Otherwise, it will block most of the air from coming out. See the corresponding assembly manual chapter to see what the part should look like after removing the inner support.
ASA, PC Blend, PA or even ABS, as well as other high-temperature materials are only suitable for experienced users, and being from different manufacturers, its properties may vary greatly.
PLA or PET-G is a no-go for fan-shroud because of its low temperature resistance.

We recommend using black filament to print all MK3S+ extruder parts. If you want different colour, you can use it, but the FS-lever part should be definitely dark (black) and the other parts surrounding the IR-Sensor as well. In case you use any lighter colour for the FS-lever it might not trigger the sensor.

","category":{"id":"134","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"134","name":"Prusa Parts & Upgrades","nameEn":"Prusa Parts & Upgrades","description":"Explore upgrades, parts and modifications! Enhance your Prusa 3D printer with spool holders, camera mounts, LCD covers, fan shrouds, and more, including the Lack enclosure \u2013 all designed to optimize your Prusa CORE One, MK4, XL, MINI, MK3S+, SL1S, HT90 and more.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-11-13T15:06:25.525869+00:00","firstPublish":"2021-03-11T08:12:15+00:00","datePublished":"2023-11-13T15:06:25.500552+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"summary":"Original Prusa i3 MK3S+ printable parts","likesCount":4554,"makesCount":537,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":108461,"displayCount":269708,"filesCount":39,"privateCollectionsCount":2918,"publicCollectionsCount":2486,"pdfFilePath":"media/prints/57217/pdfs/57217-i3-mk3s-printable-parts-756d3987-3f80-440b-8a09-6de843f5b5ed.pdf","commentCount":819,"userGcodeCount":1,"remixCount":280,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"269690","filePath":"media/prints/57217/images/567879_64d27817-fbdf-4dd8-b69b-57ef2669cf33/mk3s_iso.png","rotation":0,"imageHash":"lDiCBIAzpjeyC9aFsXf4fYV/gHmHeXeHBw==","imageWidth":4722,"imageHeight":3541,"__typename":"PrintImageType"},"images":[{"id":"269690","filePath":"media/prints/57217/images/567879_64d27817-fbdf-4dd8-b69b-57ef2669cf33/mk3s_iso.png","rotation":0,"imageHash":"lDiCBIAzpjeyC9aFsXf4fYV/gHmHeXeHBw==","imageWidth":4722,"imageHeight":3541,"__typename":"PrintImageType"}],"tags":[{"name":"prusa","id":"2","__typename":"TagType"},{"name":"i3","id":"627","__typename":"TagType"},{"name":"originalprusai3mk3","id":"854","__typename":"TagType"},{"name":"mk3s","id":"1023","__typename":"TagType"},{"name":"prusamk3s","id":"3111","__typename":"TagType"},{"name":"parts","id":"3452","__typename":"TagType"},{"name":"prusai3mk3s","id":"4081","__typename":"TagType"},{"name":"originalprusai3mk3s","id":"16934","__typename":"TagType"},{"name":"mk3splus","id":"32271","__typename":"TagType"},{"name":"printableparts","id":"113715","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"242995","filePreviewPath":"media/prints/57217/stls/567910_7d4a0a14-6b55-4493-80d8-96dbf84d1f8f/y-belt-idler_preview.png","__typename":"STLType"},"license":{"id":"9","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"16","handle":"Prusa3D","verified":true,"dateVerified":"2022-12-12T15:15:09.536367+00:00","publicUsername":"Prusa Research","avatarFilePath":"media/auth/avatars/f0/f001c3dd-d57c-462e-980c-97f3d9cea5dd.jpg","badgesProfileLevel":{"profileLevel":21,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
