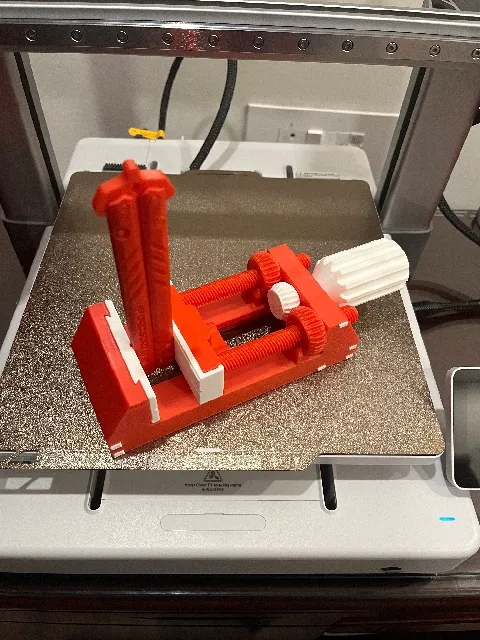

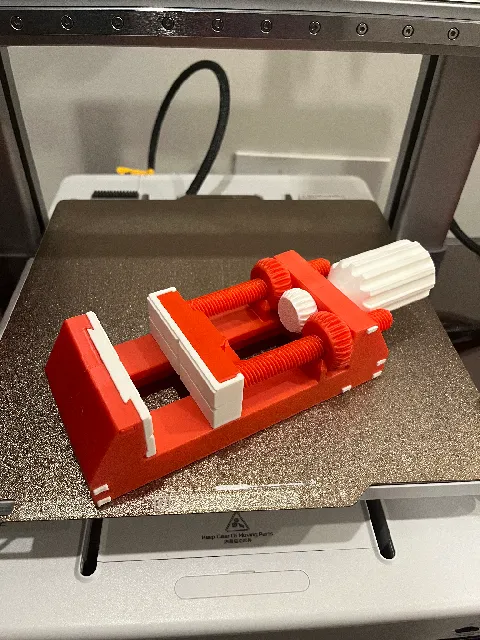

{"data":{"make":{"id":"2176254","created":"2024-11-10T12:58:42.847418+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"711","name":"Bambu Lab A1","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"508886","handle":"FilFinesse_508886","verified":false,"dateVerified":null,"publicUsername":"Filament Finesse","avatarFilePath":"media/auth/avatars/09/09aaefbe-fd7f-4320-93a0-ff8d0d7f6f68.png","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"2002209","filePath":"media/comment_images/fb/f469cb-5e81-46e3-8857-fc62606f4b02/img_0699.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"2002215","filePath":"media/comment_images/e2/ceb08e-87c3-4181-89d1-d21e8ee5e2b6/img_0698.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Printed 0.2mm\n10% Infill Grid\n\nPrinted all parts within 5.5 hours\nWorks perfectly\nUsed a little bit of grease on the screws but it's not required.\n\nOverall great print! Holds items well!","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"51074","ratingAvg":"4.9274725275","ratingCount":455,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"51074","slug":"fast-operation-vise","name":"Fast-Operation Vise","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9274725275","myRating":null,"ratingCount":455,"description":"

UPDATE 2022-11-02:

A number of people have reported that the clips are a little too thick to insert without a lot of force or sanding. I added a version of the clip that is 0.6mm thinner. It is named ThinnerClip.stl. You may wish to print one of each first to determine which works best for you.
There are a few remixes with a longer handle floating around. I created one and added it with the name longer_vise_handle.stl. You can print either the standard one (vise_handle.stl) or the new one. You don't need both.

UPDATE 2022-08-04: Based on feedback, I reuploaded mlt_sliding_jaw.stl so that it will load into the slicer in its proper print orientation by default. It is exactly the same part - just reoriented.

I really like this vise by TheGoofy and use it frequently. I would prefer that it open/close more quickly so I designed this remix. The only change is multi-start threads on the rods and gears.

On the original design a single rotation of the knob moves the jaws about 1.3mm. In the new version, a single rotation moves about 5.4mm. I used a 4-start thread with a very similar overall pitch, so roughly 4x on the speed is what I was shooting for. You can see it in action here:

Other than the two updated parts, all of the other components are unchanged. I included all the original STL files, but replaced the STLs for the two parts I redesigned. I also included the Fusion 360 file with the redesigned parts.

There are also several variants that you may print in place of the standard parts:

There is a longer version of the handle (longer_vise_handle.stl)
There is a thinner version of the clips (ThinnerClip.stl)

Print instructions

Rafts: No
Resolution: 0.15mm and 0.2mm
Filament: Prusament PLA

Post-Printing

Please look at the notes on the original design to see notes from the creator. Here is a link to his great video on how the vise was designed. It also shows how to print/assemble it starting at 6:51.

You can also see an exploded view of the model here:

","category":{"id":"49","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"49","name":"Tools","nameEn":"Tools","description":"Perfect tools and accessories for DIY enthusiasts or handicraftsman professionals. Table clamp, CNC machine parts, screw measuring tool, or multipurpose ruler.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-03-25T00:06:59.557547+00:00","firstPublish":"2021-04-11T21:21:54.526185+00:00","datePublished":"2023-03-25T00:06:59.540592+00:00","dateCreatedThingiverse":"2020-08-07T15:35:13+00:00","nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Remix of design by TheGoofy: https://www.thingiverse.com/thing:2064269","likesCount":13411,"makesCount":641,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":26288,"displayCount":127599,"filesCount":11,"privateCollectionsCount":9649,"publicCollectionsCount":7200,"pdfFilePath":"media/prints/51074/pdfs/51074-fast-operation-vise-05d88343-df37-49d1-a199-f0718a825a1e.pdf","commentCount":1468,"userGcodeCount":1,"remixCount":15,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"240668","filePath":"media/prints/51074/images/504613_fb9c5c4a-f8b9-479a-854b-f7d4dc5190e0/large_display_fe9ce83f-9f7b-4412-ac63-8156248415.jpeg","rotation":0,"imageHash":"oygSDYS5l4h5h3ePhWZ3dsCLMasH","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},"images":[{"id":"240668","filePath":"media/prints/51074/images/504613_fb9c5c4a-f8b9-479a-854b-f7d4dc5190e0/large_display_fe9ce83f-9f7b-4412-ac63-8156248415.jpeg","rotation":0,"imageHash":"oygSDYS5l4h5h3ePhWZ3dsCLMasH","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"}],"imagesCount":1,"tags":[{"name":"thingiverse","id":"6174","__typename":"TagType"}],"thingiverseLink":"https://www.thingiverse.com/thing:4563901","filesType":null,"previewFile":{"id":"215801","filePreviewPath":"media/prints/51074/stls/504616_fb4ddb14-c2e9-4fe7-a35b-2cfe3e6cf71e/mlt_main_gear_preview.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"243783","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://www.thingiverse.com/thing:2064269","urlAuthor":"TheGoofy","urlImage":"https://cdn.thingiverse.com/renders/e9/ac/86/03/b1/d1f6d69580892de74b8970b7a3041535_preview_featured.jpg","urlTitle":"Yet ANOTHER Machine Vise","urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":null,"__typename":"PrintType","user":{"id":"3181","handle":"bitsplusatoms","verified":false,"dateVerified":null,"publicUsername":"bitsplusatoms","avatarFilePath":"media/auth/avatars/6a/6ab96c17-765a-4dcf-8972-c9b2aaae68d8.jpg","badgesProfileLevel":{"profileLevel":17,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}
