While searching for ways to organize all my loose silicone wire for small electrical projects I came across Amarpal's great spool holder for Striveday branded wire (https://www.printables.com/model/335655-wire-spool-holder-striveday). This worked for some of my wire, but I had plenty of sizes without spools and most of the designs available for wire spools aren't easy to print or aren't designed with smaller gauge wires in mind.

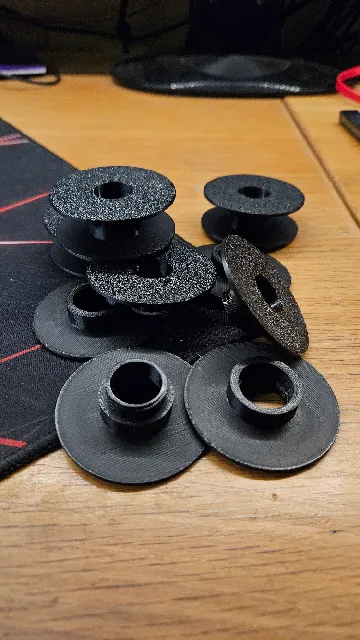

I designed this to match as closely as possible the dimensions of the Striveday spools with a 55m outer diameter and a 25mm inner diameter. Ease of printing was a priority, so the spool prints in two pieces and threads together. I also added a small hole to aid in spooling (works well with 16ga wire and smaller). A full spool will print on a standard bedslinger in around an hour and use 13g of filament.

Material: PLA+

Nozzle: 0.4mm

Layer Height: 0.2mm

Supports: None

Adhesion: None

Walls: 2

Infill: 15%

Want to add a way to label your wires in Amarpal's file? Check out my other design here:

https://www.printables.com/model/902641-nameplate-for-striveday-spool-holder
