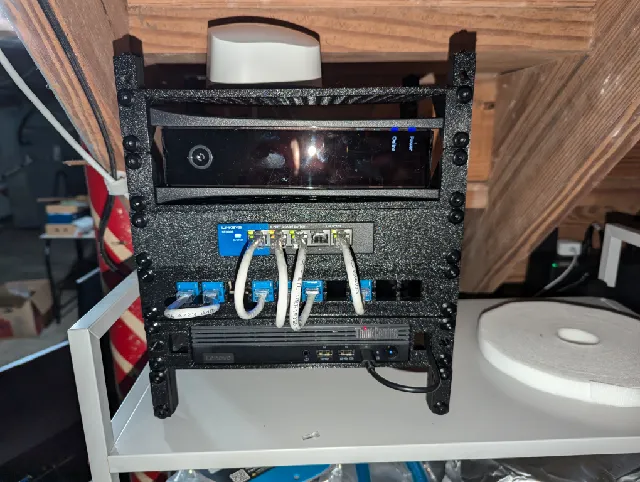

{"data":{"make":{"id":"2124477","created":"2024-10-18T00:10:04.335292+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"671","name":"Elegoo Neptune 4 Pro","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"674058","handle":"manalow88_674058","verified":false,"dateVerified":null,"publicUsername":"manalow88","avatarFilePath":"media/auth/avatars/97/9775b526-3744-4f5b-858e-819f46230379.jpg","badgesProfileLevel":{"profileLevel":11,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1944870","filePath":"media/comment_images/77/927a16-2f7f-4266-8708-bc7f59bc3164/pxl_20241017_235626058.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Love this. I had to design a new patch panel but this worked amazing.","rating":5,"likesCount":2,"liked":null,"membershipAgeMonths":0,"modelData":{"model":{"id":"427461","ratingAvg":"4.8947368421","ratingCount":38,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"427461","slug":"10-inch-server-rack","name":"10 inch server rack","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8947368421","myRating":null,"ratingCount":38,"description":"

This is printed 10 inch server rack designed for printer with plate 250 mm x 200 mm (Prusa MK3), but some parts (rails) need the bigger one (Prusa XL).

Rack has standard sizes, see https://en.wikipedia.org/wiki/19-inch_rack

Rails can be stacked on top of each other. You don't need lines or heads, but each rail starts and ends with half U.

Shelves can be oriented up or down, but filled shelves are perforated (reinforced) from one side, so be careful about that.

There are two groups of shelves:

with and without front-end panel
with and without supports, which you can do in slicer if you want

I use standard M6x16 screw with M6 nuts.

All parts are printed from PLA, instead of rack_joion which i print from PETG. All parts with default PrusaSlicer infill 15%.

Edit 26. Jan 2025

Added inbus panel

Edit 13. Aug 2024

Added rack_hook

Edit 3. Nov 2024

Added rack_rail_join to accessories
Added new folder strong shelves
