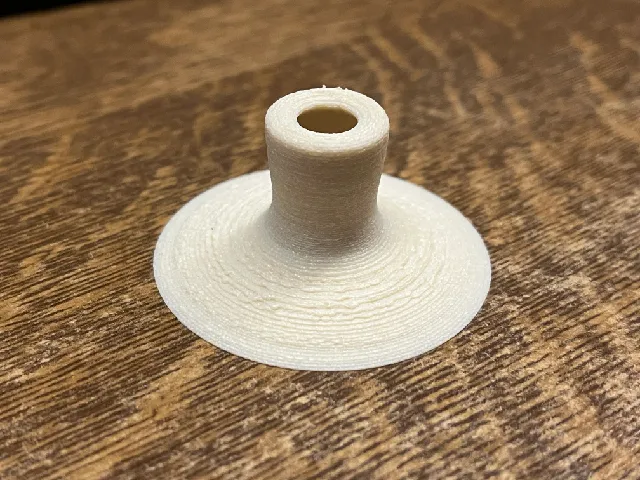

{"data":{"make":{"id":"2120328","created":"2024-10-15T21:56:41.584502+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"652","name":"Bambu Lab P1S","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2451459","handle":"PatrikKristi_2451459","verified":false,"dateVerified":null,"publicUsername":"Patrik Kristian","avatarFilePath":"media/auth/2a6b0dfa-559d-46ba-91b8-88e107b0f315.jpg","badgesProfileLevel":{"profileLevel":9,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1940509","filePath":"media/comment_images/cb/0da218-29e8-4148-9a9d-0cac480ec402/img_9006.jpeg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Finally had excuse to try Spectrum ASA Kevlarit is neat model, i wonder how long it will hold edge","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":0,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"277302","slug":"thin-layers-scraper-tinyergonomic","name":"\ud83d\udfe0 Thin layers scraper (tiny+ergonomic)","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8790123457","myRating":null,"ratingCount":810,"description":"

UPDATE 3.1.2023:

added V2 version with different inner shaping \u2192 same external size & characteristics, quicker print

Info:

\ud83d\udfe0 round edge \u2192 longer edge \u2192 scraper lasts longer then other spatula types scrapers
- if it is less sharp on one side, you can just use the other side
\ud83e\udd17 ergonomic pleasant holding
\ud83d\udcaa easier pressing against the plate (comparing to spatula type scapers)
- with spatula it is hard to press on one segment of the edge, with round shape it is easy
\ud83e\udd11 much smaller filament consumption (comparing to spatula type scrapers)
\ud83c\udf69 with hole, so it can be hanged

\u2705 With this you will remove every thin layer super-easily!

Quick review in a video from JanTec:

TIP: If the handle part is too low for you \u2192 you can try TALL edition of this model: https://www.printables.com/model/341401-round-scraper-tall-edition

Print info:

material:
- PLA or anything hard (but people are using PETG as well)
layers:
- a lot of people just use 0.2mm and are happy with it
- but you can use variable layer height for finer results (down to 0.07mm where needed -bottom and top part) \u2192 see 3mf/gcode example
TIP: use skirt of 1 layer height for immediate test :)

\u2757 How to remove it from the plate after printing:

metal removable plate:
- just take the plate away from printer and bend it - model will be removed by itself
glass plate (non removable):
- well you may have little problem, people are solving it by putting some tool in the hole in the print (like a wrench) and by some force they pull it off

Inspiration:

i was using for a long time this rounded scraper from BaGoon
- I was happy with it, because given shape is by far the best for removing any thin layer of printed object
- BUT it was uncomfortable to hold it, sometimes even painful (too small sharp holds)

Happy scraping!
