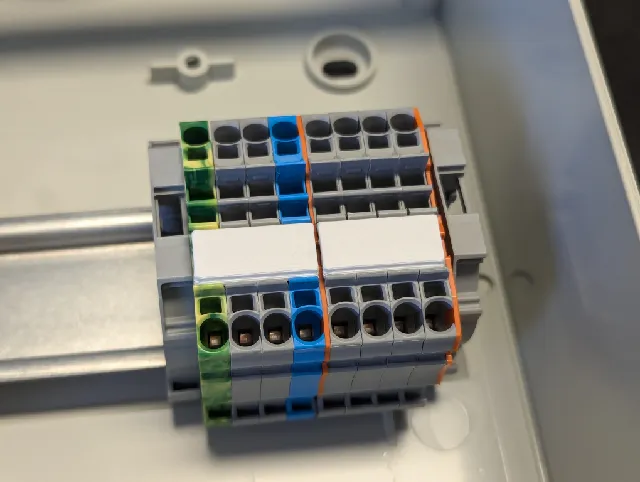

{"data":{"make":{"id":"2116718","created":"2024-10-14T09:28:57.662456+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"721","name":"Prusa MK3.5 & MMU3","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2266","handle":"zeroflow","verified":false,"dateVerified":null,"publicUsername":"zeroflow","avatarFilePath":"media/auth/avatars/07/0739996e-1fe4-4a81-abb2-2aed403409fb.jpg","badgesProfileLevel":{"profileLevel":19,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1936538","filePath":"media/comment_images/7b/be7e7a-f5c1-41c4-ae00-abda67840a94/1000034862.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Printed in white PLA, 0,4mm Nozzles, 0,15mm layers, face down.\n\nWorks great.","rating":5,"likesCount":1,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"456832","ratingAvg":"5.0000000000","ratingCount":2,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"456832","slug":"wago-2009-115-terminal-block-markings-wmb","name":"WAGO 2009-115, terminal block markings, WMB","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":2,"description":"

Recently I was in need to mark my WAGO terminal blocks, but I didn't want to buy WAGO's markers because it requires a special printer and can be bought only as a quite large coil.

This is not the exact copy of WAGO's WMB marking as the original is flexible and can be stretched or contracted to be used in 5.2 and 5.0 mm terminal blocks.

With my system, you have to print an entire chunk of markers. For example, if you want to mark 4 terminal 5.2 mm blocks, you have to print file Marker_4x5.2.stl.

Right now there are only markers for 5.2 mm blocks. But there is also a STEP file so you can create your own dimensions.

I've used PETG for printing and a 0.1mm layer for better detail and layer adhesion. If you try something else and it still works, share your experience in the comment.
