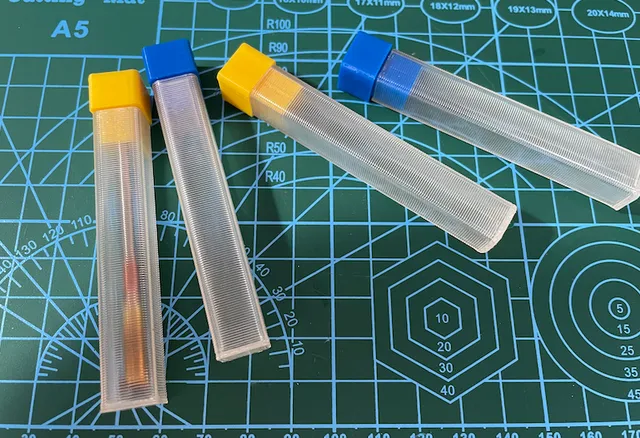

{"data":{"make":{"id":"2116032","created":"2024-10-14T00:09:58.714798+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"749","name":"Prusa MK4S","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"222895","handle":"GeoffB_222895","verified":false,"dateVerified":null,"publicUsername":"GeoffB","avatarFilePath":"media/auth/avatars/57/573e18a9-e973-47e8-8d50-086e4079296f.gif","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1935824","filePath":"media/comment_images/d9/b211e9-19b7-453e-a199-826d71902a09/scr-20241014-jhnu.png","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Nice job! Printed mine in eSun Clear PLA with a 0.8mm nozzle and 0.55 layer height as you suggested. Caps are in eSun PETG, 0.6 nozzle and 0.2mm height.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"893016","ratingAvg":"4.8333333333","ratingCount":6,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"893016","slug":"nextruder-nozzle-case-other-thicknesses","name":"Nextruder Nozzle Case (other thicknesses)","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8333333333","myRating":null,"ratingCount":6,"description":"

While playing with the excellent Nextruder Nozzle Case from Little Mike trying to get the best-looking clear container, I found that a 0.6mm nozzle using the 0.40mm DRAFT mode (non-Input Shaper profile) in vase mode (single-wall) gave the best results while being sturdy enough. I have not tried with a 0.8mm nozzle, but made an STL for that as well.

This is a redesign of the case with a 0.6mm or 0.8mm wall, but keeping the inside shape to fit the original caps or the other available caps.

The 0.6mm-wall file is meant to be printed with a 0.6mm nozzle, if possible in vase mode. Best results with the non-IS 0.40mm DRAFT profile on a Prusa XL.

The 0.8mm-wall file is meant to be printed with a 0.8mm nozzle, if possible in vase mode. Best results with the non-IS 0.55mm DRAFT profile on a Prusa XL.

The photo shows a make with the 0.6mm file using Prusament Clear PETG (left) vs the original (right).

Note: Based on comments, the fitment with original caps seems to vary. For caps that may fit better, several of the makes have links to cap models.

","category":{"id":"134","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"134","name":"Prusa Parts & Upgrades","nameEn":"Prusa Parts & Upgrades","description":"Explore upgrades, parts and modifications! Enhance your Prusa 3D printer with spool holders, camera mounts, LCD covers, fan shrouds, and more, including the Lack enclosure \u2013 all designed to optimize your Prusa CORE One, MK4, XL, MINI, MK3S+, SL1S, HT90 and more.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-06-11T07:43:52.779850+00:00","firstPublish":"2024-05-26T23:20:52.621516+00:00","datePublished":"2025-06-11T07:43:52.751468+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Nextruder Nozzle Case (derivative) with other wall thicknesses","likesCount":9,"makesCount":6,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":31,"displayCount":241,"filesCount":2,"privateCollectionsCount":11,"publicCollectionsCount":8,"pdfFilePath":"media/prints/893016/pdfs/893016-nextruder-nozzle-case-other-thicknesses-469f93e6-7628-4b42-8eab-b87e26fe7ee9.pdf","commentCount":6,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"3179029","filePath":"media/prints/893016/images/6835461_e880bfe6-73e2-47d0-a049-e788a30ebdda_63885bf6-eaeb-4bc3-8216-3ebf577ccef1/20240526_153415_modified.jpg","rotation":0,"imageHash":"dxgGDwL1aUiHeYeJdoh4yEh5aeB3Bn4H","imageWidth":3000,"imageHeight":3000,"__typename":"PrintImageType"},"images":[{"id":"3179029","filePath":"media/prints/893016/images/6835461_e880bfe6-73e2-47d0-a049-e788a30ebdda_63885bf6-eaeb-4bc3-8216-3ebf577ccef1/20240526_153415_modified.jpg","rotation":0,"imageHash":"dxgGDwL1aUiHeYeJdoh4yEh5aeB3Bn4H","imageWidth":3000,"imageHeight":3000,"__typename":"PrintImageType"}],"imagesCount":1,"tags":[{"name":"case","id":"233","__typename":"TagType"},{"name":"nozzle","id":"1014","__typename":"TagType"},{"name":"nextruder","id":"79644","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"3757884","filePreviewPath":"media/prints/893016/previews/21fd43c599175d5e8e752d377893f3146ff701d6.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"474164","modelId":"745155","modelName":"Nextruder Nozzle Case","modelAuthor":{"id":"488","handle":"LittleMike_488","verified":false,"publicUsername":"Little Mike","__typename":"UserType"},"model":{"id":"745155","name":"Nextruder Nozzle Case","slug":"nextruder-nozzle-case","datePublished":"2024-01-31T01:38:04.228639+00:00","image":{"id":"2718975","filePath":"media/prints/745155/images/5817527_590bf723-60e9-4bc0-b77d-679adbd3b756_a605dd31-5552-470d-89e2-999e221cb39d/pxl_20240130_134205269mp.jpg","rotation":0,"imageHash":"UggOFQRmaJB2d5inh3dmZzlwlwN2","imageWidth":3072,"imageHeight":4080,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"1","name":"Creative Commons \u2014 Attribution","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Different wall thickness.

","__typename":"PrintType","user":{"id":"10257","handle":"LaurentsLab","verified":false,"dateVerified":null,"publicUsername":"Laurent's Lab","avatarFilePath":"media/auth/avatars/53/53ad4676-ce3c-4b0d-89d4-15902277abe1.png","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

Nextruder Nozzle Case (other thicknesses)

Nextruder Nozzle Case (other thicknesses)

Comments
