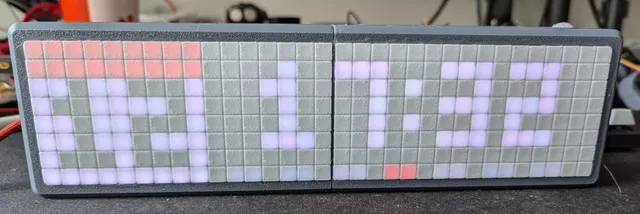

{"data":{"make":{"id":"2052571","created":"2024-09-14T06:25:05.425295+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"652","name":"Bambu Lab P1S","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1333970","handle":"Smili_1333970","verified":false,"dateVerified":null,"publicUsername":"Smili","avatarFilePath":"","badgesProfileLevel":{"profileLevel":5,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1866204","filePath":"media/comment_images/0c/32fcf5-fea1-420a-8d5d-790b0eaf877a/1000056762.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Build with cheap 8x8 ws2812 led panels from AliExpress and printed in eSun gray and white petg.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"784556","ratingAvg":"5.0000000000","ratingCount":1,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"784556","slug":"awtrix-2-4x-ws2812-8x8-led-panel-fully-printable","name":"AWTRIX 2 - 4x WS2812 8x8 LED Panel Fully Printable","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":1,"description":"

Hi,

so I had some of these 8x8 LED Matrix panels laying around here and wanted to do something with it. I found the awesome matrix project from blueforcer which is open source.

I wanted to use these 8x8 panels from CJMCU. Due to the pandemic I couldn't shop for acrylic or other stuff during the holidays, so I designed this fully printable housing for it. I also included a LDR I had laying in my parts cabinet and a mounting option for a BME280 module for temperature, pressure and humidity measurement.

After some very small modification to the LED layout in the code it worked out of the box.

If you want to print it the same way, you have to print the diffusor part in white and the front in any color you like in place. It's designed to be ONE PART, so filament change is needed.

For best results, make sure to print the \"pixel framing part first, than change to white and fill out the pixels with it and the second layer. Afterwards the rest can be printed in one last big step.

Tolerances are chosen, so the left and right parts can be pushed together as close as possible to have the smallest gab possible. Some sanding can help to get the smallest possible gap.

Good luck, if you have question, don't hesitate to ask
