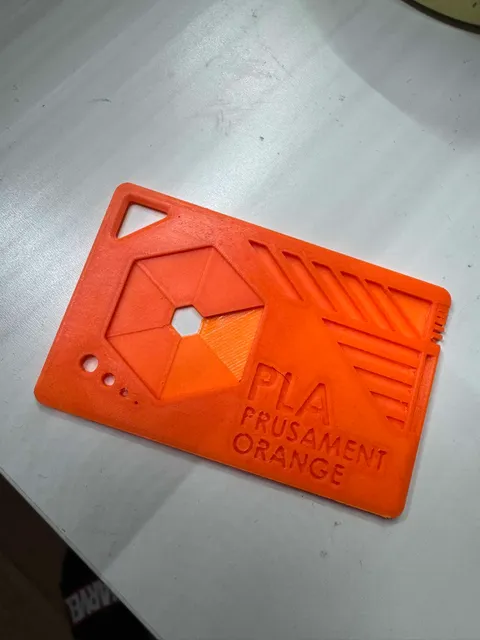

This filament swatch is made to test a printer and materials capabilities with a 0.4 mm nozzle at a 0.2 mm layer height. (100% Infill)

Size: 84 x 53 x 2,8 mm

Bridge test - 5, 10, 15 and 20 mm

Spacing test - 0.2, 0.4, 0.6, 0.8, 1.0 and 1.5 mm

Wall test - 1 to 5 perimeters (with 0,4 mm nozzle)

Transparency test - 1, 2, (3), 4, (5), 6, 8, 10 and 14 layers (with 0,2 mm layer height)

In addition to main tests there are numerous areas where some printers and materials will perform differently depending on their capabilities and the slicer settings.

Extra features:

Filament sample holder
Key ring hole
Key string attachment hole
1 to 4 mm holes
