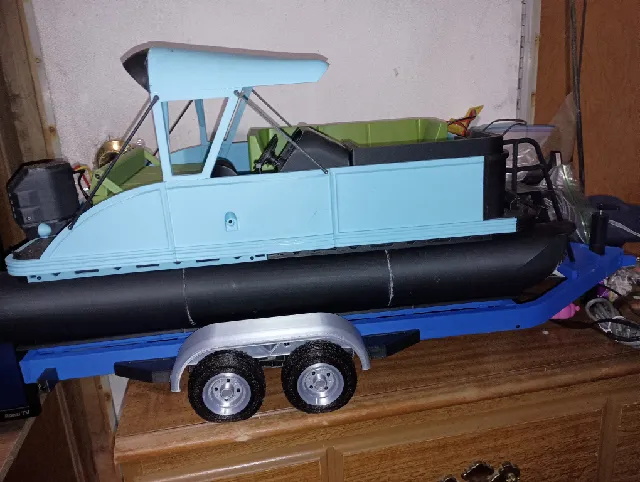

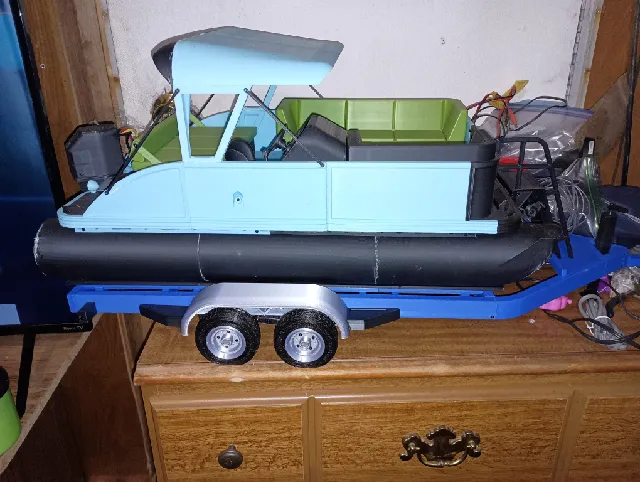

{"data":{"make":{"id":"2049313","created":"2024-09-12T13:42:23.532039+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"700","name":"Creality Ender 3 V3 KE","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1052390","handle":"jester109_1052390","verified":false,"dateVerified":null,"publicUsername":"jester109","avatarFilePath":"media/auth/avatars/38/388680fe-c361-4378-8f82-94ded5a1b73c.jpg","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1863081","filePath":"media/comment_images/7d/03a9e4-0b57-4e29-bd28-13beefbdbf86/img_20240908_192000695.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1863080","filePath":"media/comment_images/bc/8766db-9ca4-4138-a064-40ee923c9611/img_20240908_192016467.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Great model and great instructions the only thing I did different was I printed the tires in TPU and I think they came out great.","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":0,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"862459","slug":"big-chill-pontoon-boat-trailer-18-scale-by-black-c","name":"Big Chill Pontoon Boat Trailer 1:8 Scale by Black Crow","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":5,"description":"

1:8 Scale tandem axle trailer for Big Chill Pontoon Boat

Big Chill pontoon boat here: https://www.printables.com/model/797773-big-chill-rc-pontoon-boat-by-black-crow

________________________________________________________________________________________________________________

Trailer has functional tongue jack and boat winch. The axles articulate and conform to uneven ground. Uses 1/8inch bungee strap for tie downs. This is an improved version of the car trailer modified for Big Chill.

----------------------------------------------------------------------------------------------------------------

Print Bed minimum: 210 x 210 x 210

Supports:

No supports needed EVER! Supports are built into the Model. (Because of the built in supports and fine detailed areas a 0.4 nozzle or Adaptive slicer must be used)

Printer Settings:

0.4 nozzle

.2 layer Hight (no bigger)

Infill Axles and wheels 50-80% Everything else 20%

Filament:

Models are designed around the use of a strong PLA. For best results use Prusa PLA, Inland Plus, CC3D Max, ( Hatchbox PLA does not test well with my models)

Glue:

This model does not use glue for structural support. Glue is used to hold in license plate, brake lights and other fine detail work. Screws are used to hold model together.

________________________________________________________________________________________________________________

Hardware

Links are US Amazon Affiliates

Tires - 1:14 scale truck tires 30mm wide https://amzn.to/4ax19qP

Bearings - 10 - 10mm x 15mm x 4mm https://amzn.to/4cPEnfx

Bungee Cord: 1/8inch by 1 meter or 3 feet ( I think people are going to find many home uses for these bungee straps so extra might come in handy) https://amzn.to/43V13Xs

String #18 Braided is best https://amzn.to/4apUDBt

M3 eye bolt- 2 https://amzn.to/3TViAui 1 for the trailer 1 for hitch ( you can use your hitch instead)

Screws: (screws are regular machine thread)

4mm 4
6mm 58
8mm 18
10mm 55
12mm 10
16mm 13
20mm 8

Eye bolt 2
Rod 100mm
Nuts 6
Nylock Nuts 10

6mm 1
8mm 25
10mm 12
12mm 8
20mm 22
25mm 2
