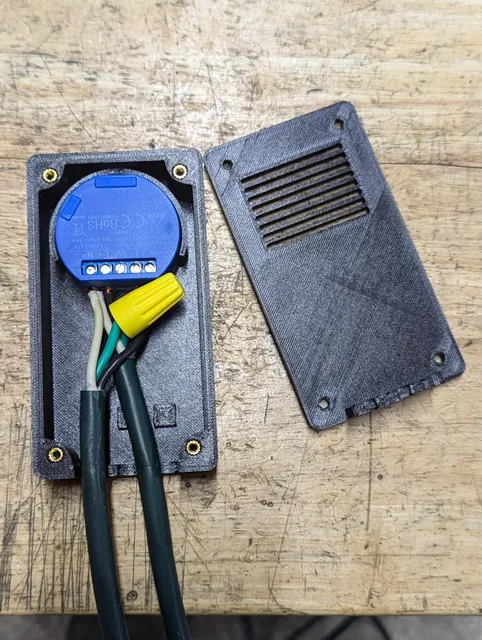

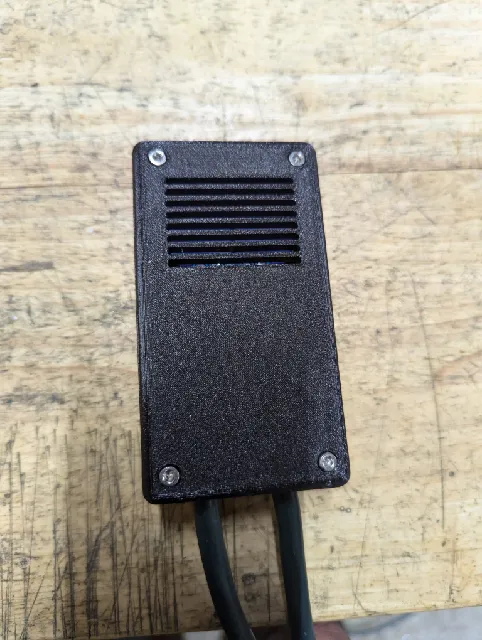

{"data":{"make":{"id":"2029404","created":"2024-09-03T01:56:28.863913+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"7","name":"Other","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"138452","handle":"Brentj84","verified":false,"dateVerified":null,"publicUsername":"Brentj84","avatarFilePath":"media/auth/avatars/22/224b703a-b49f-4bec-980e-a2260875cf9c.png","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1844562","filePath":"media/comment_images/3a/21cd62-0cc6-474f-a5ea-b855d37f3105/1000000889.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1844561","filePath":"media/comment_images/07/f6222e-4db0-4a62-9084-dae32c93824a/1000000887.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Material: Atomic PETG-CF\nPrinter: RatRig V-Core 3 300\nSlicer: SuperSlicer\nNozzle: 0.4mm\nSlice Height: 0.2mm\nSupports: None\n\nPrinted great and works well! Plenty of room to wire the Shelly and even enough room for old school wire nuts!\n\nI added threaded brass heat inserts, but that's optional. I printed as-is and drilled the holes out for the inserts.\n\nNow I have a \"Smart\" extention cord! Thanks for the great model!","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"185455","ratingAvg":"5.0000000000","ratingCount":3,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"185455","slug":"shelly-1-3-wire-box","name":"Shelly 1 3-wire Box","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":3,"description":"\n\n\n

As I'm running and switching my Shelly 1 from 24V (output of the Ruida controller on my laser cutter to control the extractor fan and 'run on a bit' after the laser's finished manufacturing smoke) I needed three cable entries; two mains and one 24V power and switch,

Whilst doing the tweak, I also took the liberty of stretching the box by 10mm to provide a bit more room for a choc-bloc.

Sadly, it looks like Autodesk no longer permit public downloads of projects from a360.co so I've included the f3d file here for anyone that wants to tweak it further.

Credit to Irgusite for the original design and putting up the Fusion 360 project so it's easy to remix.
