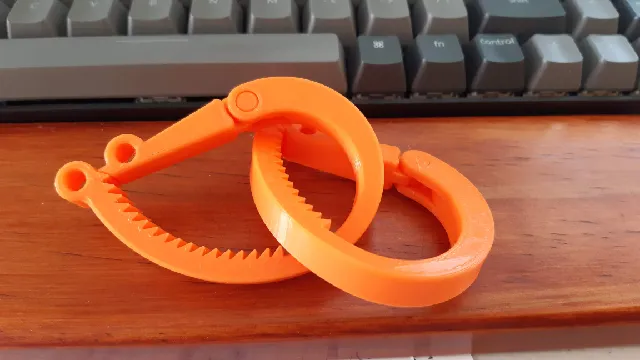

{"data":{"make":{"id":"19871","created":"2020-04-18T02:26:35.372592+00:00","edited":null,"deleted":null,"isMake":true,"printer":null,"parent":null,"author":{"id":"32949","handle":"pappito_32949","verified":false,"dateVerified":null,"publicUsername":"pappito","avatarFilePath":"media/auth/avatars/4e/4ea62e64-493e-4aa8-ad85-a0402733d262.jpg","badgesProfileLevel":{"profileLevel":8,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"3740","filePath":"media/comment_images/ee/9a5ab7-e3c0-4f3a-ab96-2a5b2648fdee/20200418_142426.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Great design, very useful gadget, fun to print. Hinge can be stubborn sometimes but with a bit of motivation it works perfectly","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"19378","ratingAvg":"4.9238410596","ratingCount":302,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"19378","slug":"ratchets","name":"Ratchets","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9238410596","myRating":null,"ratingCount":302,"description":"

Just a nice ratchet for holding your misc. cables together.

This is my second ratchet design iteration. The previous ones required some assembly and M3 nut & bolt but in this one the single STL file contains both parts preassembled so you don't need to join them after the print.
I left 0.3 mm gaps between the parts and printed from PLA with 0.2 mm layer height, without any support. The result is so fantastic I'll continue use this pre-assembled methodology in my future designs!
I printed it on my Prusa i3 MK2 which did not get the multi-extruder upgrade yet but to bow before the father of my wonderful printer I rendered an image where the lock mechanism is Prusa-orange :)

Link to the Fusion 360 design in case you want to tweak on it: http://a360.co/2sGiw2C

Update #20200524: I have uploaded a 25 and a 40 mm version with dull teeth.

Update #20210117: base on user request I have uploaded a 32 mm dull teeth version.

Update #20220926: don't forget to check out the spring loaded DIN rail mount version: https://www.printables.com/model/283611-spring-loaded-din-rail-ratchet-fat-chicken-edition

Update #20230202: I have uploaded 20-25-30-40 mm dull teeth versions with 0.4 mm layer gaps in the hinge.
