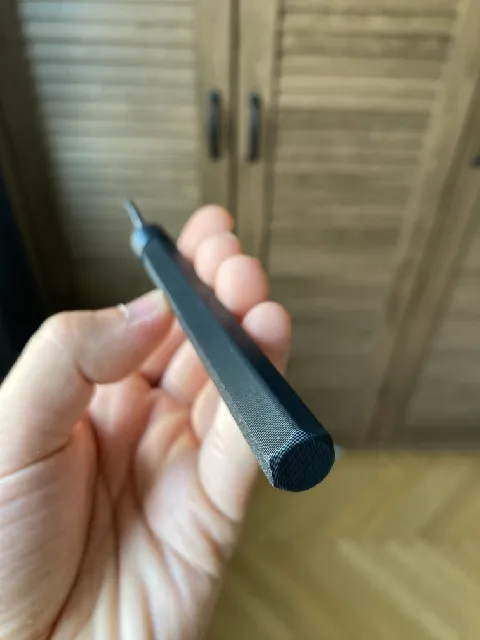

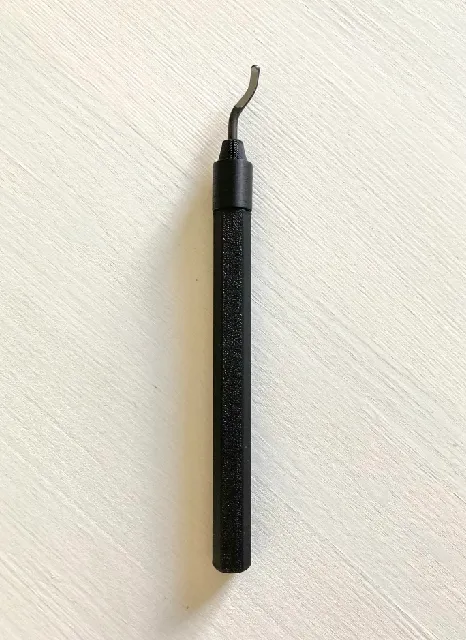

{"data":{"make":{"id":"1944833","created":"2024-07-25T14:38:22.433533+00:00","edited":"2024-07-25T14:41:27.754362+00:00","deleted":null,"isMake":true,"printer":{"id":"292","name":"Creality Ender 3 V2","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1148845","handle":"adms","verified":false,"dateVerified":null,"publicUsername":"adms","avatarFilePath":"media/auth/avatars/f4/f4927896-3957-4119-9488-29c35af0f1f0.png","badgesProfileLevel":{"profileLevel":11,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1765481","filePath":"media/comment_images/7b/6b581a-9717-4d84-adfc-ffda04e009b7/img_5196.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1765480","filePath":"media/comment_images/90/efa8cf-c171-4a73-b0fe-1bbd68f2949b/img_5195.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1765487","filePath":"media/comment_images/2c/702dc7-c8c0-4d3b-8fd0-0f75f21caefe/img_5197.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"I printed the 100% version. Snaps in perfectly, but I needed to twist the cup and the metal tip a few times to loosen up the courseness.","rating":null,"likesCount":1,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"403370","slug":"deburring-tool-handle","name":"Deburring tool handle","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.8214285714","myRating":null,"ratingCount":28,"description":"

A simple holder for 3.2mm deburring blades.

The handle is one piece. The tip is split by a small slot, so the blade can be pushed in and will snap in place. The ring keeps the two halves together.

Update 4 aug 24:
On the handle, I removed part of the thread on the top and bottom: it is not required and cleans up easier.
Model files contain the new version, print files were not updated.

Printing:

The handle is printed flat, with support under the threaded section.
The ring is printed standing up: concentric fill, top and bottom.
I printed in PETG, 0.2 layer, 0.4 nozzle and 0.45 extrusion width (default PrusaSlicer setting 0.20mm quality)
3 perimeters wall, 20% cubic infill (2 perimeters and 15% seems to be strong enough too).
If the ring is too tight, scale it a bit larger in X and Y direction in the slicer, e.g. try 101 or 102%. I also added some scaled print files for MK3S.

Assembly:

The slot in the handle is only 0.2mm wide. Depending on the accuracy of your printer you may need a knife to open the slot up.
The deburring blade should push in and snap into place. You may need to open the slot a bit (e.g. with your thumbnail or a screwdiver) to push the blade in and get the blade out again.

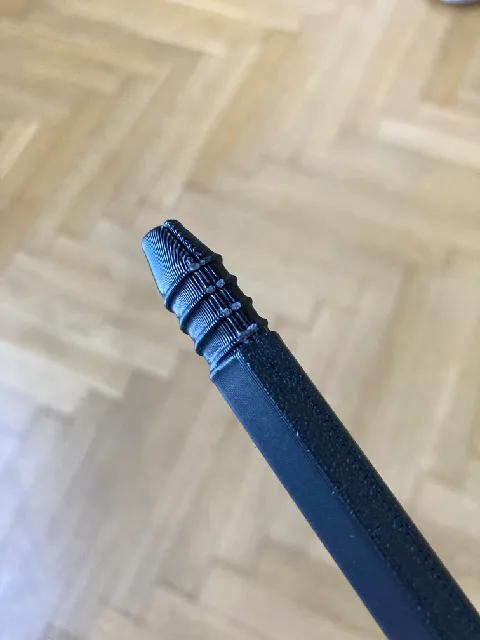

The thread is pretty coarse and has some play, but it may take a few times until it runs smoothly. Clean up the supports and thread on the handle with a knife.

Let me know how the model works for you: any feedback or suggestion for improvement is welcome!
