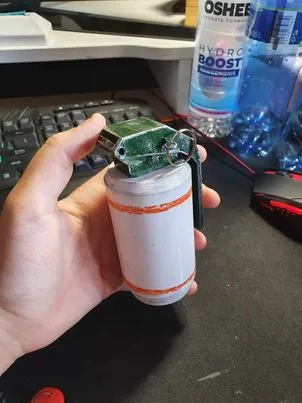

{"data":{"make":{"id":"1936309","created":"2024-07-21T11:48:46.696135+00:00","edited":"2024-07-21T11:49:45.350934+00:00","deleted":null,"isMake":true,"printer":{"id":"132","name":"Flashforge Adventurer 3","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"869738","handle":"BefsztykWSosi_869738","verified":false,"dateVerified":null,"publicUsername":"Befsztyk W Sosie","avatarFilePath":"media/auth/avatars/ae/aea0182d-6b51-4cc8-9d0a-0e143e072c82.jpg","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1757704","filePath":"media/comment_images/f5/de6892-b7b4-4573-ae16-3cbce83e3c33/450890880_7933705740016848_7149766359841962245_n.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Painted it to match the CSGO smoke granade. Came out great! I used a paperclip to make the pin.","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"439144","ratingAvg":"4.5000000000","ratingCount":4,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"439144","slug":"dummy-grenade","name":"Dummy Grenade","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.5000000000","myRating":null,"ratingCount":4,"description":"

I made a dummy grenade that has an articulated spoon using a stock BIC pen spring.

Great during for example airsoft and training purposes to give you that extra split second to enter a room.

There are 2 types of body's for the grenade, type 1 is just a solid one, type 2 has a slightly smaller main body which has room for a template.

Included is also a template which you can use to put your or your teams name on there for identification purposes.

And for those curious, my label reads \"Model 1.33.7 - Distraction Device\".

Don't have a printer yourself? Contact me on my Etsy store and I'll be happy to print it for you: \nhttps://www.etsy.com/shop/XDr4g0nX3DPrinting

Print Settings

Printer:

Gemstock - Azurite

Rafts: \n

Doesn't Matter

Supports:

Yes

Resolution: \n

0.15mm layer height

Infill:

30%-50%

Notes:

Print the spoon sideways with support otherwise is will very quickly break.

\nPost-Printing\n=============\n

Assembly

When cleaning the parts, remove all supports from the spoon and use 2x M3 screws and a BIC pen spring.
\nI found that using glue to attach the spring on the fuse is best to keep everything together.\n

I made the pin out of a steel pin bent around a keyring.
