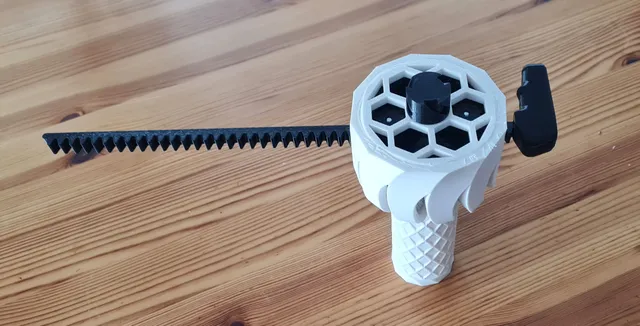

{"data":{"make":{"id":"1927517","created":"2024-07-16T19:19:07.820034+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"711","name":"Bambu Lab A1","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"291568","handle":"BesserEsser_291568","verified":false,"dateVerified":null,"publicUsername":"THS Arts and Crafts","avatarFilePath":"media/auth/avatars/18/18319b96-c0b4-46dd-9a15-a45b26b957f9.jpg","badgesProfileLevel":{"profileLevel":13,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1749890","filePath":"media/comment_images/b5/abd617-2f37-4a56-b66a-a4f70780b09b/20240707_144154.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Tolles Teil, Danke","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"membershipTier":null,"__typename":"PrintCommentType","model":{"id":"436375","slug":"torospin-turbo","name":"ToroSpin TURBO","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9811320755","myRating":null,"ratingCount":53,"description":"

Basic info:

Toroidal propeller launcher with double planetary gearbox.

Gearbox:

Non-printable parts: You just need one type of screw for assembly.
Gear ratio 1:12 with smooth move.

Printing:

No supports!
Layers height are 0,15-0,2mm.
Recommended material for gears is PETG, see below to BOM.

BOM:

Printed parts/Purchased parts
Item	File	Qty	Description
1	1.stl	8	PETG
2	2.stl	1	PETG
3	3-Ring-up.stl	1	PETG
4	4-Ring-down.stl	1	PETG
5	5.stl	1	PETG
6	6.stl	1	PETG
7	7.stl	1	PETG
8	8.stl	1	PLA
9	9.stl	1	PETG
10	10.stl	1	PLA
11	11.stl	1	PLA
12	12.stl	1	PETG
13	13.stl, 13Low.stl	1	PETG (1)
14	14.stl	1	PETG
15	Tor_170.stl, Tor_200.stl	1	Propeller (2)
-	Tor_base.step	-	to create remixes
16	Screw M3x16	11	Countersunk screw (DIN 7991)

13Low.stl is for printer bed size under 250x210mm.
170mm or 200mm toroidal propeller.

Assembly:

STEP 1:

Note: Screw (red) in detail A shouldn't be too tight!

STEP 2:

STEP 3:

STEP 4:

STEP 5: Let's fly!!

Note: By downloading and using the model, you agree that it is provided \"as is,\" without any warranties. The authors of this model are not liable for any accidents, damages, or other issues that may arise from its use. Users are encouraged to exercise caution and use the model responsibly. The author disclaims any responsibility for any losses or damages incurred through the use of this product.
