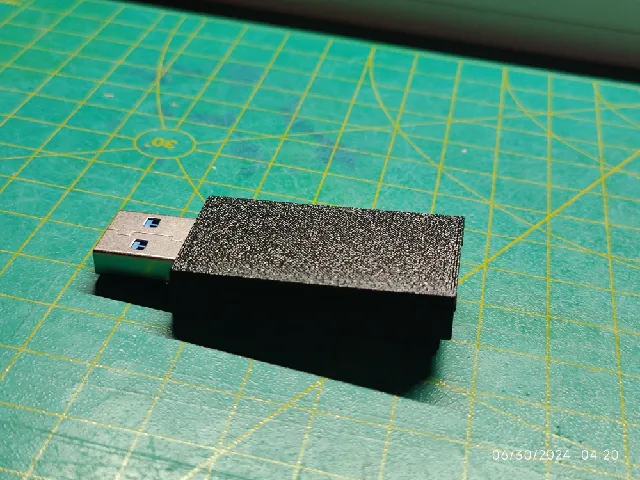

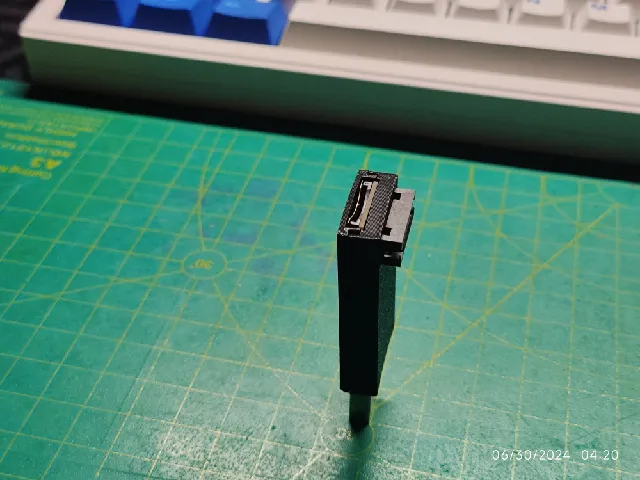

{"data":{"make":{"id":"1889760","created":"2024-06-29T21:33:46.961662+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"710","name":"Elegoo Neptune 4 Max","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2044064","handle":"SilencedFros_2044064","verified":false,"dateVerified":null,"publicUsername":"SilencedFrost","avatarFilePath":"media/auth/avatars/d7/d7a93a0b-97fb-41af-9549-9db0a6950152.jpg","badgesProfileLevel":{"profileLevel":16,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1714266","filePath":"media/comment_images/8d/33b681-5dd9-4a16-9c38-fa639fd3821c/1000030259.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1714265","filePath":"media/comment_images/f4/1c0853-0a5c-4c78-9cf8-d31b741b67f7/1000030261.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1714264","filePath":"media/comment_images/05/0a779a-4dbb-4d2b-a09a-856d94d93c50/1000030260.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Gotta love that chamfers instead of the fillet, exactly what I would do (actually planned to remix the original if I hadn't found this one) fits perfectly","rating":5,"likesCount":2,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"808060","ratingAvg":"4.9230769231","ratingCount":13,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"808060","slug":"mks-emmc-adapter-case-tighter-fit","name":"MKS EMMC Adapter Case (Tighter Fit)","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9230769231","myRating":null,"ratingCount":13,"description":"

This model has been recreated to allow for a tighter fit, eliminating the rattle and movement of the original.

The surface features were also changed to be a bit more printer friendly at this scale. No special print speed considerations should need to be taken.

Like the original there are 2 different versions of the top piece, with or without the LED window.

Print Settings:

4 Perimeters/walls
15% infill
0.2mm layer height
0.4mm line width
5 top and bottom layers
Parts are pre oriented in the correct position for printing
No supports needed

","category":{"id":"52","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"52","name":"Electronics","nameEn":"Electronics","description":"Keen on electronics devices and making your own gadgets? Use Raspberry Pi, Arduino, or GoPro and create new equipment using 3D print. Let's start!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-04-12T15:53:47.572333+00:00","firstPublish":"2024-03-16T22:09:16.489621+00:00","datePublished":"2024-04-12T15:53:47.542274+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"A case for the MKS EMMC Adapter V2.0","likesCount":48,"makesCount":15,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":453,"displayCount":1092,"filesCount":3,"privateCollectionsCount":54,"publicCollectionsCount":27,"pdfFilePath":"media/prints/808060/pdfs/808060-mks-emmc-adapter-case-tighter-fit-dcd40a82-1da1-4dec-b6bb-1f28da4eda0d.pdf","commentCount":17,"userGcodeCount":0,"remixCount":1,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"2914478","filePath":"media/prints/808060/images/6250496_81be9130-07ce-4ff5-83f8-a1ff3af7a912_3aac3436-e049-425b-96e8-6182b09cf2d6/20240316_170314.jpg","rotation":0,"imageHash":"6vcFDYD5GJh9Z4iKZHm3dfeMXgBJ","imageWidth":4000,"imageHeight":3000,"__typename":"PrintImageType"},"images":[{"id":"2914478","filePath":"media/prints/808060/images/6250496_81be9130-07ce-4ff5-83f8-a1ff3af7a912_3aac3436-e049-425b-96e8-6182b09cf2d6/20240316_170314.jpg","rotation":0,"imageHash":"6vcFDYD5GJh9Z4iKZHm3dfeMXgBJ","imageWidth":4000,"imageHeight":3000,"__typename":"PrintImageType"},{"id":"2914479","filePath":"media/prints/808060/images/6250495_1591b73a-69b4-48d5-8e70-7f97e225dcad_1a75b490-e3ee-4aa5-8143-391e883f5683/20240316_170326.jpg","rotation":0,"imageHash":"4QcGDYD6SXlfeYeIVYeZd/SIj2Ap","imageWidth":4000,"imageHeight":3000,"__typename":"PrintImageType"},{"id":"2914480","filePath":"media/prints/808060/images/6250494_1f86ff8c-8707-48e7-a10d-2d37ed5027fa_e7aadaa9-7408-47ed-b709-0ced1541713a/20240316_170148.jpg","rotation":0,"imageHash":"5gcKDYCZZnh/eYd2d5h4h/aHXgI3","imageWidth":4000,"imageHeight":3000,"__typename":"PrintImageType"}],"imagesCount":3,"tags":[{"name":"case","id":"233","__typename":"TagType"},{"name":"mks","id":"2391","__typename":"TagType"},{"name":"emmc","id":"121800","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"3429887","filePreviewPath":"media/prints/808060/previews/60ec94a39df25ef7d9aa14b477292e755c953d25.png","__typename":"STLType"},"license":{"id":"3","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"458542","modelId":"605112","modelName":"MKS emmc Adapter Case","modelAuthor":{"id":"204245","handle":"3DDuke_204245","verified":false,"publicUsername":"Pascal","__typename":"UserType"},"model":{"id":"605112","name":"MKS emmc Adapter Case","slug":"mks-emmc-adapter-case","datePublished":"2025-05-31T12:09:51.715064+00:00","image":{"id":"2279536","filePath":"media/prints/605112/images/4812633_21cab3cc-7568-4d1a-a624-27f16099e47a_879c442d-04dc-443c-bfee-113c032396b4/20231006_152809.jpg","rotation":0,"imageHash":"WQgGDYIHlHhzdnlhqkaoiOWATAu5","imageWidth":719,"imageHeight":469,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"3","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Recreated for a tighter fit with a more print friendly shape at this scale.

","easyprintProjects":[],"__typename":"PrintType","user":{"id":"1207348","handle":"TheMeanCanEH_1207348","verified":false,"dateVerified":null,"publicUsername":"TheMeanCanEHdian","avatarFilePath":"","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

MKS EMMC Adapter Case (Tighter Fit)

MKS EMMC Adapter Case (Tighter Fit)
