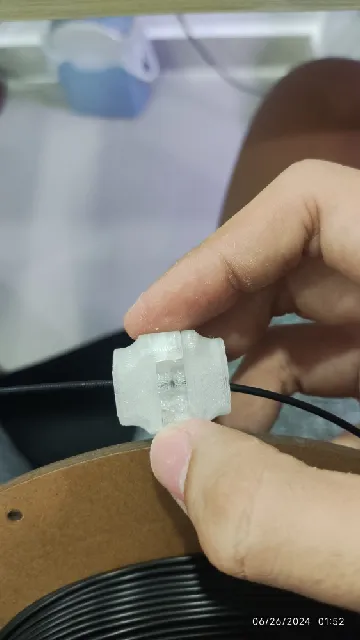

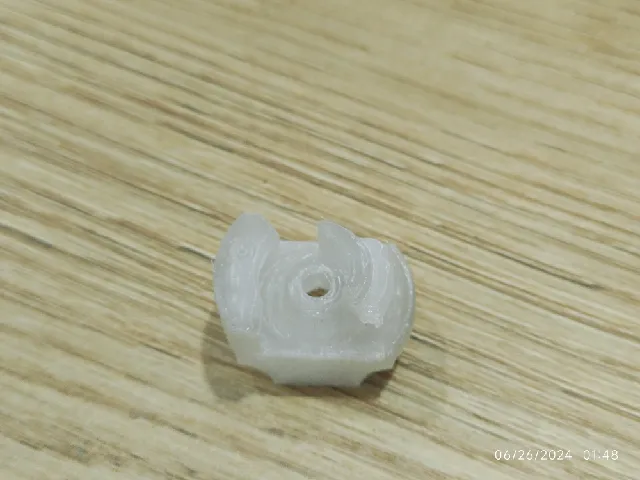

{"data":{"make":{"id":"1885967","created":"2024-06-27T21:45:32.676500+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"710","name":"Elegoo Neptune 4 Max","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2044064","handle":"SilencedFros_2044064","verified":false,"dateVerified":null,"publicUsername":"SilencedFrost","avatarFilePath":"media/auth/avatars/d7/d7a93a0b-97fb-41af-9549-9db0a6950152.jpg","badgesProfileLevel":{"profileLevel":16,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1710727","filePath":"media/comment_images/19/e07d88-8c0b-41d8-85a3-1b54232a9414/1000030067.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1710728","filePath":"media/comment_images/bd/dbe3cb-28b6-4618-b575-9905c9e5d9da/1000030066.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"v82, much better to use than v72, almost airtight now, threads made to fit pc4-m10 better, engaging is easier than before","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"891137","ratingAvg":"5.0000000000","ratingCount":13,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"891137","slug":"ubbi-universal-bidirectional-bowden-interconnect-a","name":"UBBI - Universal Bidirectional Bowden Interconnect - an overengineered PTFE tubing connector!","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":13,"description":"

Want a quick, firm, durable connection for your PTFE lines? For quick diagnostic, quick swapping, without afflicting much damage on the PTFE itself?

Want a universal connection that can act as an extender, terminal at the same time?

Want a near air-tight connection for little to no moisture?

You came to the right place, welcome to the UBBI

An open source design, which you can integrate anywhere freely, enhancing your ptfe game!

\ud83e\udd29 Do you like the design? You can help fund innovations like this!
Consider supporting me!
Much appreciation given to my supporters, and you get exclusive access to various CAD files!
Submit feature requests here!

Features:
- Supports both PC4-M10 and ECAS04 couplers
- Allows for 3mm max internal diameter PTFE tubing
- Only 1.6mm between tube ends, suitable for bowden setups, minimal drag
- One piece fits all, no female or male ends
- Prints with minimal supports
- Twist locking mechanism with audible snap
- 14mm wrench can be used to operate the piece

NOTE:
The first 3-4 snaps must be done with a wrench, to break in the mechanism before it gets soft enough to be used by hands!

For remixers: The UBBI made for remixing into other models is included in the .step file

All UBBI versions will be forward and backward compatible, all versions will click together! Beauty of continuity!

Avoid clear ptfe, natural ptfe is opaque, clear tubing is mixed and does not slide as smooth!

Recommended print settings:
- Nozzle diameter: 0.4mm
- Layer height: \u2264 0.2mm
- Reverse on odd: disabled
- Precise walls: enabled
- Wall order: i/o/i
- Tolerance requirement: 0.1mm
- Print orientation: as imported
- Supports: included with the model, enable support generation and change to manual placement, don't add anything

Recommended materials:
- PETG
- ABS/ASA

Installation requires:
- PC4-M10/ECAS04 (Remove silicone seal)
- 4mm OD PTFE tubing
*Note: 2mm ID for bowden system, 2.5mm ID for reverse bowden

Current official UBBI items:

Name	Description
UBBI	The main connector
Drybox access port	Access ports for printing right from inside the drybox
Elegoo filament runout adapter	Adapts UBBI to mount on to the filament runout sensor
UBBI frame mount(WIP)	Mount UBBI anywhere on 20x20 extrusions
Reverse bowden for LSfanmod	Reverse bowden adapter for LSfanmod's shroud design
Reverse bowden for Neptune 4	Reverse bowden adapter for any Neptune 4/Pro/Plus/Max stock shroud
Reverse bowden for Neptune 3	Reverse bowden adapter for any Neptune 3/Pro/Plus/Max stock shroud
Reverse bowden for SF 3x5015	Reverse bowden adapter for SF 3x5015 shroud
Optical runout sensor	Optical runout sensor

Current community-made UBBI items:

Name	Description
Sunlu S2 wedge	Normal sunlu s2 wedge for more airflow, but with UBBI integrated

Changelog:

Official release	Changes
v64	First official release
v66	Changes for attachments, removed manifold edges
v72	Tighter tolerances, Added anti sag for one circle Cleaned up edges where elephant's foot may get in the way Corrected thread pitch from 1.5mm to 1mm
v82	Improved tolerances Improved durability and strength Corrected thread to use tapered threads
v83 2nd July 2024	Corrected thread direction Tightened ptfe guide path
v87 19th July 2024	Added pre-made supports Piped internal corners for cleaner corners Chamfered edges for a softer feel on the hand Made filament hole bigger
v90 3rd August 2024	Optimized pre-made supports Added ECAS04 compatibility
v91 24th March 2025	Fixed extreme overhangs
