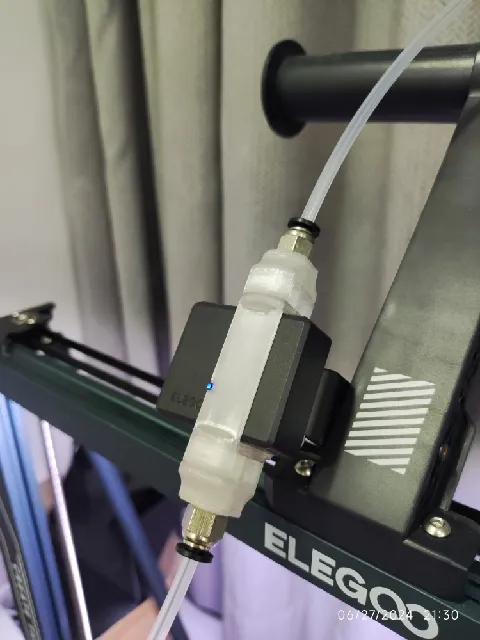

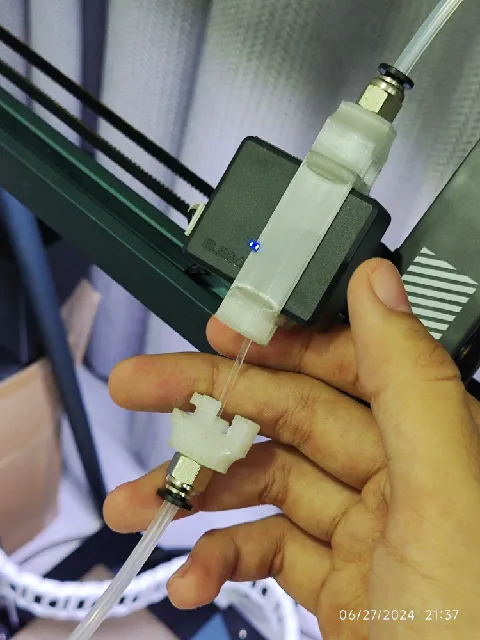

{"data":{"make":{"id":"1885965","created":"2024-06-27T21:42:42.665575+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"710","name":"Elegoo Neptune 4 Max","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2044064","handle":"SilencedFros_2044064","verified":false,"dateVerified":null,"publicUsername":"SilencedFrost","avatarFilePath":"media/auth/avatars/d7/d7a93a0b-97fb-41af-9549-9db0a6950152.jpg","badgesProfileLevel":{"profileLevel":16,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1710726","filePath":"media/comment_images/2f/eb466c-2299-4de9-ac14-db3b34df0bcb/1000030120.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1710725","filePath":"media/comment_images/9d/8be1b7-3040-43e0-9888-edfc7fc30f33/1000030118.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"This is v9, printed 27/6/2024, printed with clear petg but max volumetric speed so it's cloudy, uncovered length is decreased, added assembly guide, reduces the chance of binding by a large amount","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"893199","ratingAvg":"5.0000000000","ratingCount":7,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"893199","slug":"ubbi-mount-for-elegoo-neptune-filament-runout-sens","name":"UBBI mount for Elegoo neptune filament runout sensor","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":7,"description":"

UBBI mount adapter for Elegoo stock filament runout

\ud83e\udd29 Do you like the design? You can help fund innovations like this!
Consider supporting me!
Much appreciation given to my supporters, and you get exclusive access to various CAD files!
Submit feature requests here!

Features:
- Mounted with friction, seated in place with the slits and screw head holes, will stay firm
- Allows quick connection to bowden setup
- Prints with minimal support
- Twist locking mechanism with audible snap

NOTE:
The first 3-4 snaps must be done with a wrench, to break in the mechanism before it gets soft enough to be used by hands!

Recommended print settings:
- Nozzle diameter: 0.4mm
- Layer height: \u2264 0.2mm
- Reverse on odd: disabled
- Precise walls: enabled
- Wall order: i/o/i
- Tolerance requirement: 0.1mm
- Print orientation: as imported
- Supports: included with the model, enable support generation and change to manual placement, don't add anything

Recommended materials:
- PETG
- ABS/ASA

Changelog:

Official release	Changes
v1	First official release
v3	Updated to UBBI v72
v4	Added ribs at screw mounting hole for strength
v4.5	Added model for runout sensor that have 5.5mm poles (usually they are 4.45mm! Measure before print!)
v5	Implemented anti sag to pole slit, re-aligned screw hole.
v7	Updated to UBBI v82
v9	Adjusted pole location for 4.5mm pole version, added video installation guide
v10 19th July 2024	Updated to UBBI v87
v12 3rd August 2024	Updated to UBBI v90

","category":{"id":"2","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"2","name":"Other Printer Parts & Upgrades","nameEn":"Other Printer Parts & Upgrades","description":"Customize your 3D printer with hundreds of enhancements! Download spool holders, camera mounts, LCD covers, fan shrouds and even the Lack enclosure!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-01-28T20:59:18.826111+00:00","firstPublish":"2024-05-27T05:49:17.243965+00:00","datePublished":"2025-01-28T20:59:18.779743+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"adapter to use UBBI system with default Elegoo filament runout sensor","likesCount":70,"makesCount":8,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":452,"displayCount":2070,"filesCount":2,"privateCollectionsCount":59,"publicCollectionsCount":60,"pdfFilePath":"media/prints/893199/pdfs/893199-ubbi-mount-for-elegoo-neptune-filament-runout-sensor-db7e6870-cedc-4003-9471-c373b8799378.pdf","commentCount":12,"userGcodeCount":0,"remixCount":2,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"3854498","filePath":"media/prints/893199/images/8356540_9c24d401-da65-4702-b406-1ce455f3d613_b6705748-a642-4fec-aa5e-5b51a42e37a8/thumbnail.png","rotation":0,"imageHash":"3fcFDYK6dzich1efdHiIdfeJfZ/I","imageWidth":2048,"imageHeight":1536,"__typename":"PrintImageType"},"images":[{"id":"3854498","filePath":"media/prints/893199/images/8356540_9c24d401-da65-4702-b406-1ce455f3d613_b6705748-a642-4fec-aa5e-5b51a42e37a8/thumbnail.png","rotation":0,"imageHash":"3fcFDYK6dzich1efdHiIdfeJfZ/I","imageWidth":2048,"imageHeight":1536,"__typename":"PrintImageType"}],"imagesCount":1,"tags":[{"name":"adapter","id":"2276","__typename":"TagType"},{"name":"ptfe","id":"2596","__typename":"TagType"},{"name":"quick","id":"3084","__typename":"TagType"},{"name":"bowden","id":"3087","__typename":"TagType"},{"name":"connector","id":"3243","__typename":"TagType"},{"name":"release","id":"3710","__typename":"TagType"},{"name":"coupler","id":"4407","__typename":"TagType"},{"name":"filamentrunout","id":"4492","__typename":"TagType"},{"name":"reverse","id":"4576","__typename":"TagType"},{"name":"neptune","id":"6711","__typename":"TagType"},{"name":"reversebowden","id":"6839","__typename":"TagType"},{"name":"elegoo","id":"17581","__typename":"TagType"},{"name":"feedthrough","id":"24621","__typename":"TagType"},{"name":"ubbi","id":"222767","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"4041374","filePreviewPath":"media/prints/893199/previews/8e387606647aea06dc1b46bfb44d44e06761be3d.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"479504","modelId":"891137","modelName":"UBBI - Universal Bidirectional Bowden Interconnect - an overengineered PTFE tubing connector!","modelAuthor":{"id":"2044064","handle":"SilencedFros_2044064","verified":false,"publicUsername":"SilencedFrost","__typename":"UserType"},"model":{"id":"891137","name":"UBBI - Universal Bidirectional Bowden Interconnect - an overengineered PTFE tubing connector!","slug":"ubbi-universal-bidirectional-bowden-interconnect-a","datePublished":"2025-03-24T01:49:52.789924+00:00","image":{"id":"3628987","filePath":"media/prints/891137/images/7840259_5dcf3c20-1113-4e74-a65e-b3a5c649efbb_68084a46-c4b7-4413-9c3b-8a21c1a499d2/thumbnail.png","rotation":0,"imageHash":"3vcBDYIcWbh/uFW2jdk7SdiZj535","imageWidth":2048,"imageHeight":1536,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Adapter to fit on stock elegoo neptune filament runout sensor
