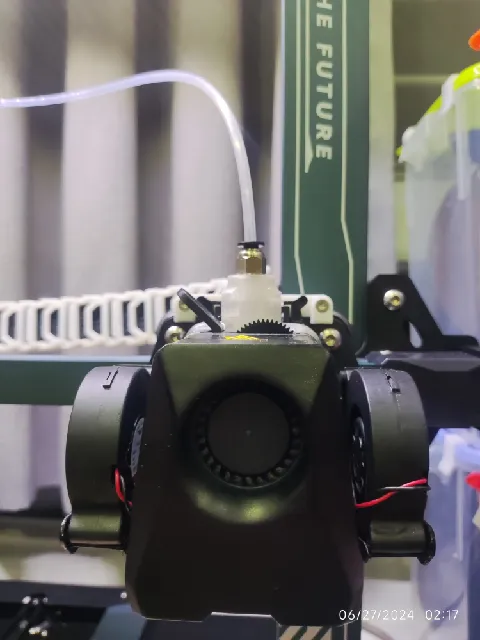

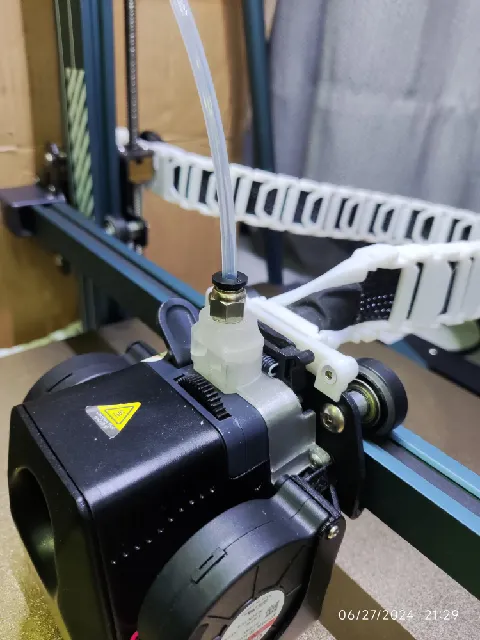

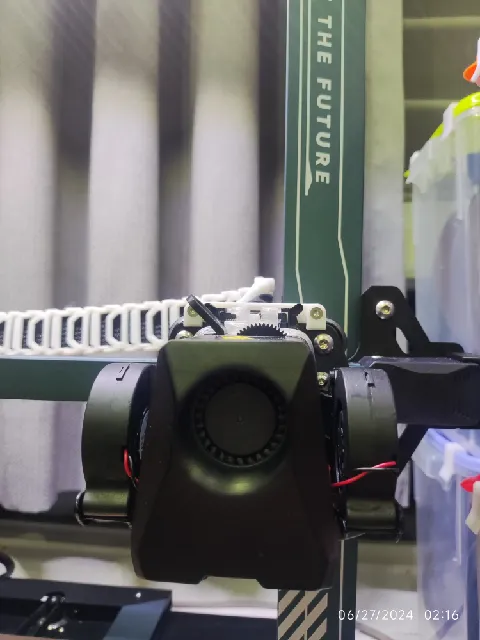

{"data":{"make":{"id":"1885953","created":"2024-06-27T21:39:53.159742+00:00","edited":"2024-06-27T21:40:34.113035+00:00","deleted":null,"isMake":true,"printer":{"id":"710","name":"Elegoo Neptune 4 Max","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"2044064","handle":"SilencedFros_2044064","verified":false,"dateVerified":null,"publicUsername":"SilencedFrost","avatarFilePath":"media/auth/avatars/d7/d7a93a0b-97fb-41af-9549-9db0a6950152.jpg","badgesProfileLevel":{"profileLevel":16,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1710717","filePath":"media/comment_images/b2/9d6810-ea53-40d9-b0e2-a0a84f93589b/1000030105.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1710716","filePath":"media/comment_images/b7/4381ce-d881-4805-803e-c197f6ac93fa/1000030106.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1710715","filePath":"media/comment_images/0f/d800cb-cd15-4320-8df5-9600064b8122/1000030117.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"This is the V24, printed with clear petg, but max volumetric speed so it's cloudy","rating":null,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"891669","ratingAvg":"5.0000000000","ratingCount":1,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"891669","slug":"reverse-bowden-addon-for-ls-fanmod-ubbi-head","name":"Reverse Bowden Addon for LS Fanmod - UBBI head","authorship":"remix","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":1,"description":"

To be used with UBBI system and Layer.Shifted's fan mod for reverse bowden systems

Features:
- Thickened to add more rigidity
- Twist locking mechanism with audible snap

\ud83e\udd29 Do you like the design? You can help fund innovations like this!
Consider supporting me!
Much appreciation given to my supporters, and you get exclusive access to various CAD files!
Submit feature requests here!

Recommended print settings:
- Nozzle diameter: 0.4mm
- Layer height: \u2264 0.2mm
- Reverse on odd: disabled
- Precise walls: enabled
- Wall order: i/o/i
- Tolerance requirement: 0.1mm
- Print orientation: as imported
- Supports: as shown in picture

Recommended materials:
- PETG
- ABS/ASA

Changelog:

Official release	Changes
V18	First official release
V20	Changed anti sag to the correct position
V22	Updated to UBBI v72
v23	Compatible with the latest Layer.Shifted's fan mod version 106 and above
v24 28th June 2024	Lowered the profile, less torsional stresses Updated to UBBI v82
v25 4th July 2024	Heightened the ubbi up by 1mm Updated to UBBI v83
v26 21st July 2024	Updated to UBBI v87
v27 3rd August 2024	Updated to UBBI v90

","category":{"id":"2","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"2","name":"Other Printer Parts & Upgrades","nameEn":"Other Printer Parts & Upgrades","description":"Customize your 3D printer with hundreds of enhancements! Download spool holders, camera mounts, LCD covers, fan shrouds and even the Lack enclosure!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-01-28T20:59:27.342915+00:00","firstPublish":"2024-05-25T19:31:49.393694+00:00","datePublished":"2025-01-28T20:59:27.311331+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Reverse Bowden Addon for LS Fanmod but fitted with UBBI head","likesCount":21,"makesCount":4,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":125,"displayCount":754,"filesCount":1,"privateCollectionsCount":19,"publicCollectionsCount":23,"pdfFilePath":"media/prints/891669/pdfs/891669-reverse-bowden-addon-for-ls-fanmod-ubbi-head-2c8c29ce-38b1-4293-b2bb-f12381a4ad7e.pdf","commentCount":4,"userGcodeCount":0,"remixCount":1,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"3633776","filePath":"media/prints/891669/images/7850820_a51548fa-efea-427f-89ee-4b96655f4d9a_9e2b080a-7f6d-49c8-8b3d-dc5f18cd3cc0/thumbnail.png","rotation":0,"imageHash":"3/cFDYAJ9VuGrUOZVqpodLpnr4z2","imageWidth":2048,"imageHeight":1536,"__typename":"PrintImageType"},"images":[{"id":"3633776","filePath":"media/prints/891669/images/7850820_a51548fa-efea-427f-89ee-4b96655f4d9a_9e2b080a-7f6d-49c8-8b3d-dc5f18cd3cc0/thumbnail.png","rotation":0,"imageHash":"3/cFDYAJ9VuGrUOZVqpodLpnr4z2","imageWidth":2048,"imageHeight":1536,"__typename":"PrintImageType"},{"id":"3179573","filePath":"media/prints/891669/images/6836742_a5ef250e-6d15-453f-8e14-2af0d07fcb3a_482345fb-b31e-4ebd-b5ce-be08953d1a7c/img_20240527_131911.jpg","rotation":0,"imageHash":"4fcNDYCjhYdviIeZdliIaHMcj8Py","imageWidth":4000,"imageHeight":3000,"__typename":"PrintImageType"},{"id":"3179563","filePath":"media/prints/891669/images/6836675_223e4d9e-9316-49e5-903c-5b1e89a8b482_900b613a-fdc5-4a60-bcea-bc1323a897e1/img_20240527_130755.jpg","rotation":0,"imageHash":"3/cJBYCjhIdfiYeMd1h5doMKn8Xw","imageWidth":4000,"imageHeight":3000,"__typename":"PrintImageType"}],"imagesCount":3,"tags":[{"name":"adapter","id":"2276","__typename":"TagType"},{"name":"ptfe","id":"2596","__typename":"TagType"},{"name":"quick","id":"3084","__typename":"TagType"},{"name":"bowden","id":"3087","__typename":"TagType"},{"name":"connector","id":"3243","__typename":"TagType"},{"name":"release","id":"3710","__typename":"TagType"},{"name":"coupler","id":"4407","__typename":"TagType"},{"name":"reverse","id":"4576","__typename":"TagType"},{"name":"pc4m10","id":"4897","__typename":"TagType"},{"name":"reversebowden","id":"6839","__typename":"TagType"},{"name":"feedthrough","id":"24621","__typename":"TagType"},{"name":"lsfanmod","id":"215771","__typename":"TagType"},{"name":"ubbi","id":"222767","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"4041283","filePreviewPath":"media/prints/891669/previews/e4ee78f57b8f6f52a828e44c5bcdff6fe9204030.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"473938","modelId":"861887","modelName":"Reverse Bowden Addon for LS Fanmod","modelAuthor":{"id":"1549027","handle":"Lamarc","verified":false,"publicUsername":"layer.shifted","__typename":"UserType"},"model":{"id":"861887","name":"Reverse Bowden Addon for LS Fanmod","slug":"reverse-bowden-addon-for-ls-fanmod","datePublished":"2024-09-16T18:52:16.038284+00:00","image":{"id":"3081870","filePath":"media/prints/861887/images/6620871_bbc5ff68-4d78-4f8a-8d0b-88d8e96d14d4_8236ebe6-e3b0-4047-81d0-c28c6b2f882e/ls_reversebowdenaddon_v03a.png","rotation":0,"imageHash":"YdeFA4AjZK+VS4rEgW9q+Aimc4p1ylg=","imageWidth":1280,"imageHeight":853,"__typename":"PrintImageType"},"club":false,"authorship":"remix","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"},{"id":"479505","modelId":"891137","modelName":"UBBI - Universal Bidirectional Bowden Interconnect - an overengineered PTFE tubing connector!","modelAuthor":{"id":"2044064","handle":"SilencedFros_2044064","verified":false,"publicUsername":"SilencedFrost","__typename":"UserType"},"model":{"id":"891137","name":"UBBI - Universal Bidirectional Bowden Interconnect - an overengineered PTFE tubing connector!","slug":"ubbi-universal-bidirectional-bowden-interconnect-a","datePublished":"2025-03-24T01:49:52.789924+00:00","image":{"id":"3628987","filePath":"media/prints/891137/images/7840259_5dcf3c20-1113-4e74-a65e-b3a5c649efbb_68084a46-c4b7-4413-9c3b-8a21c1a499d2/thumbnail.png","rotation":0,"imageHash":"3vcBDYIcWbh/uFW2jdk7SdiZj535","imageWidth":2048,"imageHeight":1536,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Thickened to give more strength, replaced original M10 head with UBBI head

","easyprintProjects":[],"__typename":"PrintType","user":{"id":"2044064","handle":"SilencedFros_2044064","verified":false,"dateVerified":null,"publicUsername":"SilencedFrost","avatarFilePath":"media/auth/avatars/d7/d7a93a0b-97fb-41af-9549-9db0a6950152.jpg","badgesProfileLevel":{"profileLevel":16,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

Reverse Bowden Addon for LS Fanmod - UBBI head

Reverse Bowden Addon for LS Fanmod - UBBI head
