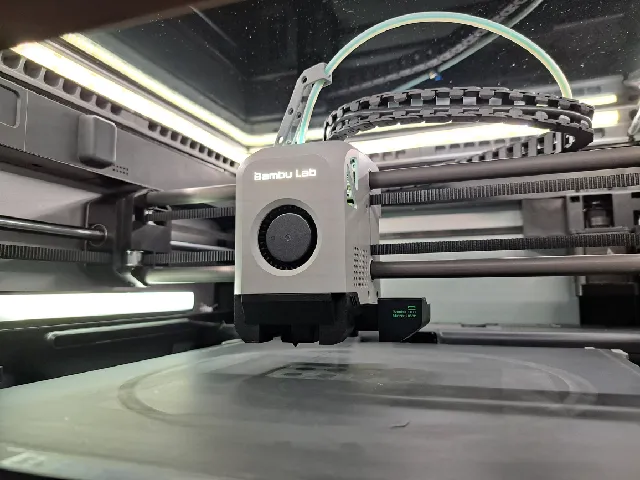

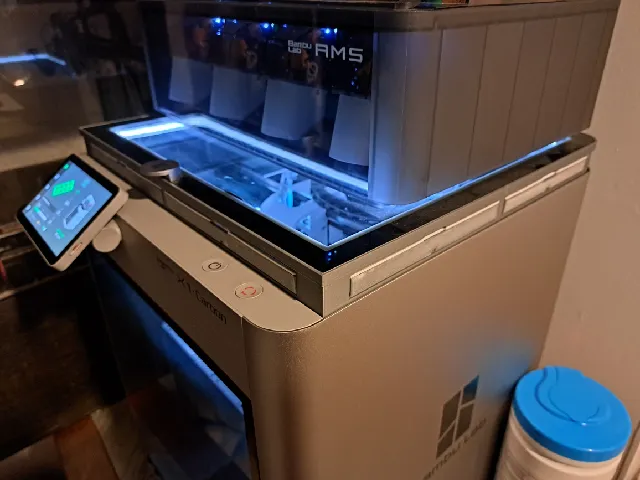

{"data":{"make":{"id":"1876121","created":"2024-06-23T07:52:17.385073+00:00","edited":"2024-06-23T07:53:09.054300+00:00","deleted":null,"isMake":true,"printer":{"id":"336","name":"Bambu Lab X1","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1248455","handle":"VoxelStudio_1248455","verified":false,"dateVerified":null,"publicUsername":"Voxel Studio","avatarFilePath":"media/auth/avatars/e9/e96c7e81-fae8-4419-8d7a-74b595920733.png","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1701818","filePath":"media/comment_images/6d/55b3eb-6337-4701-8d2d-91d6f2583a17/1000006401.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1701820","filePath":"media/comment_images/c7/048815-e85f-4bdb-b9ad-8d24b9dc0e01/1000006400.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1701819","filePath":"media/comment_images/91/d7ce96-1984-4e88-95d4-3326a0c79f7a/1000006402.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Really happy with this model, the placement of the LED strip is at just the right height and angle that it doesn't blow out the time-lapse camera but illuminates the plate and chamber to give much cleaner time-lapse footage. The extra height relieves the PTFE tube a little and it fits together easily with a little CA glue","rating":5,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"584504","ratingAvg":"4.9693877551","ratingCount":98,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"584504","slug":"dk-riser-for-bambu-lab-x1p1","name":"DK Riser for Bambu Lab X1/P1","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.9693877551","myRating":null,"ratingCount":98,"description":"

When I made / remixed my first Riser, it was out of personal necessity\u2026 because the built-in LED in BambuLab was not sufficient\u2026 and that low profile design turned out to be quite popular.

Since then, a couple of users Qiao112 and Dan Ljungstr\u00f6m encourage me to do the next version that also has a vent on it\u2026 they showed me a design from another designer\u2026 which is very good\u2026 but I personally like it to be not as tall\u2026

So through the rabbit hole I went\u2026 gone thru several design ideas\u2026 throw away most of them, starting over and over\u2026 until I came up with something that I personally like\u2026

So here it is\u2026 still similar to the first design, it has a TPU Bed/ Light Shield on top but I made several modification from the original design, recognizing issues that was inherent from the first design.

The first design, I angled the LED 60 degrees downward, the problem is, if we do not want to cut the LED strips and do some soldering at the corners, you have to bend the LED strips, it will be very hard to fit them nicely\u2026
so in the new desogn, I change the angle to 45 degrees (less bending at the corners) and as a bonus, less overhang\u2026
then I added a \u201ccave\u201d (for the lack of a better word) so we can accommodate the \u201cextra\u201d LED to \u201ccurl\u201d in there.

A few users remixed the previous design to make the top wall part (LED Trim some call it) thicker, worried that it might brake off\u2026 I personally have used this since I first made it, and never had any issues, but I will change the thickness to accommodate that too\u2026

This is probably a little more than a casual project, I will try to provide a clear guide\u2026

So let's get straight to how to put it together

I uploaded a 3mf file that already contains everything you need to print.

This is a 5 plates project: Plate 1 & 2 are the main body, plate 3 is the cover for the vent holes plus Pegs and Magnet Tool, and the last 2 are all the TPU

I printed Plate 1 thru 3 using IIIMax PetG Filament, and 4-5 using BambuLab TPU 95A Black
I choose to pick different color for the cover for accent more than anything else, you can choose the same color / materials.

========

Parts you need to buy for this project:
1. 6x2 mm round magnets AMAZON LINK.
NOTE: A user commented: Please use magnets Specs max N40, else it will be hard to open the door\u2026
2. COB LED Strips with Power Supply and Wireless Remote Amazon Link

I also added a couple of Magnet Tools to assist in installing the magnets. We know that magnets will attract if they have opposite polarity, and repels otherwise.
I intentionally print these in 2 different colors - 1 color like the body, and the other like the vent cover\u2026.

Glue each magnet to the tool, you should install the magnet opposite polarity so when you put them together head to head, they will stick to each other

The orange one you will use to install the magnet for the main body, and the beige one for the vent covers

==========

After you print all parts.. line up the main body upside down\u2026 and you can install the Pegs. Note that there are magnet notches on the pegs, they should be facing outward. You can put SuperGlue also for permanently secure all 4 parts.

===============================

Next Glue all 8 of the TPU guard to the Vent Doors. They are different sizes, so match the same ones, and there are 2 rounded guide to help you lined them up.

=================================================

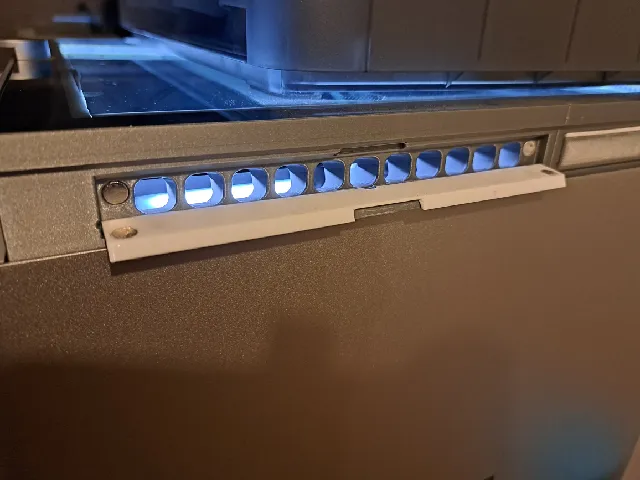

Next install the Vent Doors (8 pcs) to the main body. There are different Lengths of the Vent Doors should match the vent. Then should be inserted at 45 Degrees angle following the gutter. The best way I found is guide the left Hinge first, the middle while pushing 45 degrees, and the right one last\u2026 You should hear it clicked once they are in place.

==========

Next, Glue 16 Magnets to the main body, using the Magnet Tool with the same color as the body, this ensure the polarity of the magnets to be facing correctly.

Glue 16 Magnets to the (8) Vent Doors (with TPU) using the Magnet Tool with the same color as the Vent Door. Again this is to ensure the polarity of the magnets to be facing correctly.

=============================

Guide the LED Power Cable through the cable Guide. The TPU Plug was sized slightly wider so that it will be a tight fit and will stay in place.

Install the COB LED Strips\u2026 note that the LED Strip Sticker may not hold for a long time, you might want to consider gluing them.

Lastly install them on your Machine, and put the TPU Shield on top, and finally you can replace the top glass.

Below is the youtube video I made, I hope it will make it clearer how to put it together\u2026 towards the end of the video\u2026 there's a FLIR Video showing the thermal images

Note: if you are using the same COB LED that I use, please understand that it is very bright and generates heat! I only run it at 25% Power\u2026 (You can set from the remote control)

I sincerely hope you will find it useful. Thank You!

Update Sept 26 2023: I added STL files and also a 1 piece design if you have a printer with 400x400mm bed

Update Sept 29 2023: Fix the right peg and hole, I picked up the wrong Sketch when extruding, so the right peg is slightly smaller than the rest, but the right hole matched it\u2026 If you have downloaded it prior, just make sure you use the right peg, on the right peg hole. This new upload fixed them so all are uniform.

Update / Note Jan 27 2024: Please use the 3MF version because it is already oriented ready to print. I provided the Step files if you want to modify to match your needs.
