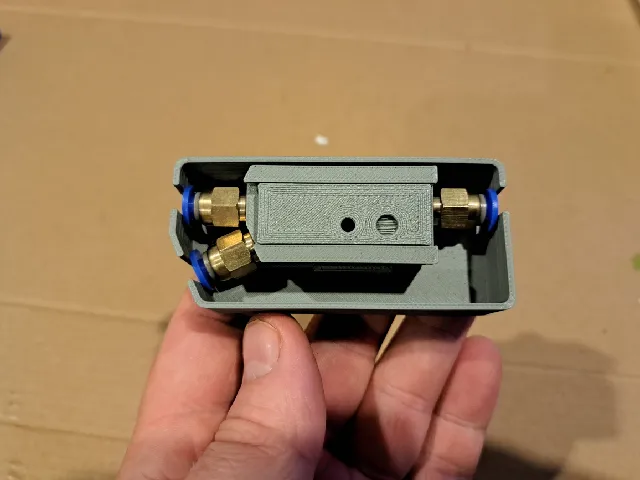

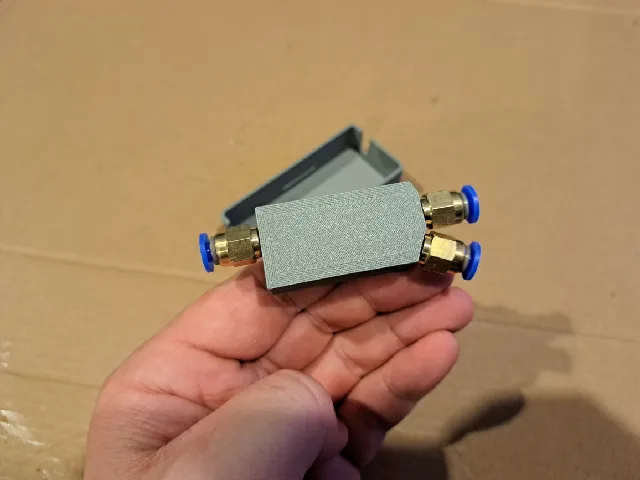

{"data":{"make":{"id":"1876106","created":"2024-06-23T07:43:53.774361+00:00","edited":null,"deleted":null,"isMake":true,"printer":{"id":"336","name":"Bambu Lab X1","__typename":"PrinterTypeType"},"parent":null,"author":{"id":"1248455","handle":"VoxelStudio_1248455","verified":false,"dateVerified":null,"publicUsername":"Voxel Studio","avatarFilePath":"media/auth/avatars/e9/e96c7e81-fae8-4419-8d7a-74b595920733.png","badgesProfileLevel":{"profileLevel":10,"__typename":"BadgesProfileLevelType"},"__typename":"UserType"},"images":[{"id":"1701803","filePath":"media/comment_images/84/182353-f780-4e5a-ba19-29f35a0c4a3e/1000006295.jpg","rotation":0,"__typename":"CommentImageType"},{"id":"1701802","filePath":"media/comment_images/63/f90ff9-8292-476e-9e79-f37fce0f1800/1000006300.jpg","rotation":0,"__typename":"CommentImageType"}],"mentions":[],"text":"Really like the clean look of this but after a few prints I've found that the filament catches quite frequently despite drilling out and chamfering the PC4-M6 conmectors","rating":4,"likesCount":0,"liked":null,"membershipAgeMonths":null,"modelData":{"model":{"id":"584189","ratingAvg":"4.6250000000","ratingCount":8,"__typename":"PrintType"},"__typename":"ModelDataType"},"membershipTier":null,"__typename":"PrintCommentType","model":{"eligibleForNomination":false,"id":"584189","slug":"clean-bowden-y-splitter","name":"Clean Bowden Y-Splitter","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"4.6250000000","myRating":null,"ratingCount":8,"description":"

Print with ABS or PETG. Use auto rotation, no support. Don't use too much force when screwing in the PC4-M6's.

Screw the small part to the printer (see picture), remove existing screw first.
Remove the coupler from the printer.
Screw in the PC4-M6's to the middle part (surfaces aligned, see picture).
Slide in the medium part from the right.
Fully push the left bowden tube into the medium part (see picture).
Fully push the other tubes into the medium part.
Attach the cover (click in).
Enjoy the clean design :-).

You must use \u201cUNLOAD\u201d when removing the external filament, not manual retract. This will give the filament a clean cut and it will not stuck in the splitter.

Remark: You can switch inputs if the filament doesn't travel smoothly enough.

","category":{"id":"136","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"136","name":"Bambu Lab Parts & Upgrades","nameEn":"Bambu Lab Parts & Upgrades","description":"Free parts and upgrades for your Bambu Lab 3D printer!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-09-21T05:45:58.623227+00:00","firstPublish":"2023-09-16T13:29:08.669099+00:00","datePublished":"2023-09-21T05:45:58.608367+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Same design as the AMS hub.","likesCount":90,"makesCount":9,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":730,"displayCount":6432,"filesCount":3,"privateCollectionsCount":117,"publicCollectionsCount":83,"pdfFilePath":"media/prints/584189/pdfs/584189-clean-bowden-y-splitter-b41da008-9fa0-444a-95fd-de436937fc38.pdf","commentCount":21,"userGcodeCount":0,"remixCount":1,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"2216836","filePath":"media/prints/584189/images/4676815_0ea20c3e-35dc-4a2f-8942-b0dee91048d0/20230918_105647.jpg","rotation":0,"imageHash":"nRgKDIA+c3Vwi4k0h4c/pPk0yw==","imageWidth":4000,"imageHeight":2252,"__typename":"PrintImageType"},"images":[{"id":"2216836","filePath":"media/prints/584189/images/4676815_0ea20c3e-35dc-4a2f-8942-b0dee91048d0/20230918_105647.jpg","rotation":0,"imageHash":"nRgKDIA+c3Vwi4k0h4c/pPk0yw==","imageWidth":4000,"imageHeight":2252,"__typename":"PrintImageType"},{"id":"2216837","filePath":"media/prints/584189/images/4676817_5e631f57-437e-4292-840d-e3ec27b4ce57/20230918_105526.jpg","rotation":0,"imageHash":"nCgODIJ9hpdwd3hliIrfoahPrA==","imageWidth":4000,"imageHeight":2252,"__typename":"PrintImageType"},{"id":"2216835","filePath":"media/prints/584189/images/4676816_9febb63a-d156-44ab-aa40-3b5f97c0c287/20230918_105615.jpg","rotation":0,"imageHash":"mxgODIKNdphgeHlmd5r/kJc/mw==","imageWidth":4000,"imageHeight":2252,"__typename":"PrintImageType"},{"id":"2216840","filePath":"media/prints/584189/images/4676818_c7a069f6-3e6e-437d-bcd2-96bc7e490d6f/20230918_105643.jpg","rotation":0,"imageHash":"nCgODIJ9hpZgeHhmhonssGlPuw==","imageWidth":4000,"imageHeight":2252,"__typename":"PrintImageType"},{"id":"2210562","filePath":"media/prints/584189/images/4660933_05134018-bf5b-41d7-94c3-adb288c8e40a/2023-09-16.png","rotation":0,"imageHash":"rPgRHQL4uIZ42GiXeHt2lxV4IFYI","imageWidth":968,"imageHeight":1330,"__typename":"PrintImageType"}],"imagesCount":5,"tags":[{"name":"bambulab","id":"95940","__typename":"TagType"},{"name":"bambulabx1carbonams","id":"95941","__typename":"TagType"},{"name":"bambulabx1ams","id":"95943","__typename":"TagType"},{"name":"bambulabams","id":"115510","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"2489305","filePreviewPath":"media/prints/584189/stls/4695018_ca97d92a-ae80-4504-b900-5bdfcc6ee0ee_82483bdd-a964-4bdd-9d86-85b4f1f4efd5/ams-splitter-3-v2_ams-splitter-3-v3_korper1_preview.png","__typename":"STLType"},"license":{"id":"2","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","user":{"id":"328906","handle":"ZzoyozZ_328906","verified":false,"dateVerified":null,"publicUsername":"ZzoyozZ","avatarFilePath":"media/auth/avatars/ff/ff58234f-3283-45b1-9fad-518bb7bf4f4f.jpg","badgesProfileLevel":{"profileLevel":12,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"canBeFollowed":true,"designer":false}},"unavailableModel":null,"replies":[]}}}

Clean Bowden Y-Splitter

Clean Bowden Y-Splitter
