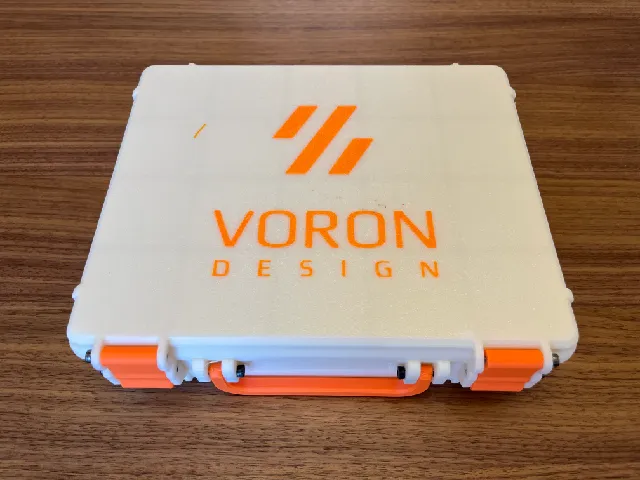

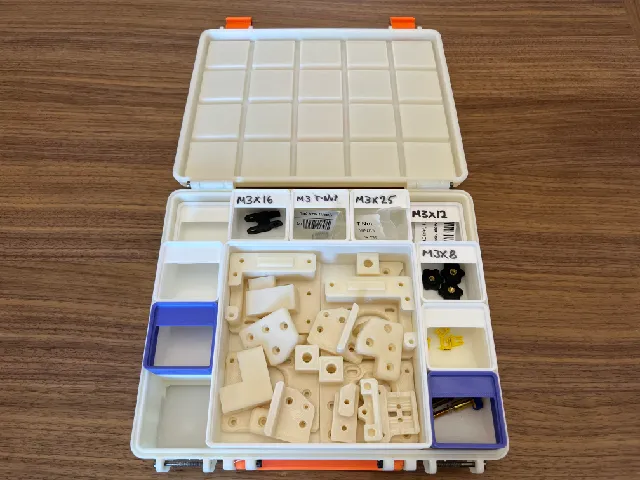

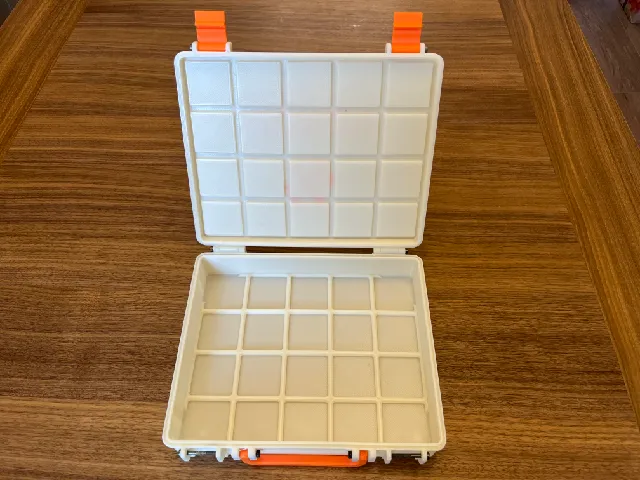

I really like the Gridfinity Case by Aiko since but the the model is extremely resource hungy - without any sacrifice in functionality or robustness i shaved down everything to yield about 33 % savings and added a list of other cool features to this gridfinity box.

Key Features

top and bottom Grid (no parts spilling out)
resource friendly, yet rugged
stands upright in 5 orientations
12 mm label slot in the front (9 mm for the 3 U version)

Size availability

My source file allows for various different sizes and shapes. For expierienced users in Fusion the file is fairly easy to handle, though due to limitations in Fusion (lacking conditions on features especially) changing certain parameters will break a few bits here and there. Especially edge cases need to be handled manually (especially the label slot or the handle for example). Therefore i won't release the source publicly for now.

The following variants are tested and exported in various heights ranging from 3U up to 21U in common factors.

3x2U
4x2U
4x3U
4x4U
5x5U
5x6U
6x4U
6x5U

And a few experimental files:

6x1U (only 6U, with and without handle for testing)

If you are interrested in other sizes, drop me a line (keep in mind, that sizes that are not compatible with Bambu Lab Printers or experimental are only available on the model page on Printables).

for your convinience i've included various logos if you want to store your printer accessories or tools in the box - if you miss a logo, just drop me a line

BOM

6x M3x30 screws
2x M3x16 or 2x M3x18 screws
PETG or ABS recommended, PLA is OK aswell
TPU (optional)

(affiliate Links)

Printing

I've included print Profiles for Bambu Lab Printers for all sizes that will fit on their machines. For other sizes, use the following rough guidelines (0,4 mm nozzle).

Lid and Base: flat on build plate, 3 walls 10 % infill
Latches: upright 3 walls, concentric top/bottom
Handle: flat on build plate; 4 walls, 25 % infill; concentric top/bottom
Seal: flexible Filament; flat on build plate; 3 walls concentric top/bottom

Logo on the lid

The logos in the lid are provided as a separate multipart file. To use them, follow these easy steps to make adjustments in your slicer software. This guide applies to PrusaSlicer, Bambu Studio, or OrcaSlicer:

Open the file in your slicer as \"a single object with multiple parts.\"
In the object tree, delete any logos you don\u2019t need, as well as the \u201cDummy (delete me)\u201d body. Only the lid and the logos you want to keep should remain.
Change the type of the logo from \u201cpart\u201d to \u201cmodifier.\u201d
Orient the part so that the top side with the logo is facing the build plate. The \"Auto Orient\" function should simplify this step.
Set the filament or color of the logo to your desired color.
Remember that the logos are 0.6 mm high. This design is optimized for a multiple of a 0.2 mm layer height. If you use a different layer height, you may need to rescale the logo body to match your preferred height.
If you don\u2019t have a multi-color-capable printer, you can change the logo type to \u201cnegative part.\u201d This way, the printer will omit the logo. Be aware that for logos with a larger surface area, this may require supports.

Assembly

longer screws in the hinges or latches (from the outside)
shorter for the handle (from the inside)

Changelog

2025-02-22 R3 v47:

added 6x1U experimental

2025-01-26 R3 v44:

added new size 4x4

2025-01-07 R3 v44:

added 2 new sizes 3x2 and 6x4

2024-12-08 R3 v44:

added new size 4x2

2024-11-03 R3 v38:

added 2 new sizes 5x5 and 6x5

2024-11-01 R3 v34:

lids with logos added (new logos, 2 different sizes)

2024-11-01 R3 v31:

added experimental 5x5 version in 5 and 6U

2024-10-30 R3 v26:

complete overhaul with fully parametric base file in the background
shaved off even more material and print time, prints now roughly 5 % faster (~ 15 minutes)
compatible with existing boxes - but be aware that the geometry slightly changed, your inner monk might be a bit triggered, if you combine an old lid with a new box or vice versa
virtually an size an variant possible
5x4 and 4x3 are added for now
if you miss a variant, drop me a line

2024-06-22 R1 v35:

added tool company logos: Bosch, DeWalt, Dremel, Makita, Milwaukee, Ryobi, Stanley & Stihl

2024-06-10 R1 v34:

added an Anycubic lid

2024-05-18 R1 v31:

added a 9U version

2024-05-18 R1 v33:

added a 12U version
slight geometry change to the label slot to make it easier to print (thx to Markurian for the input)
parts are fully compatible

","category":{"id":"50","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"50","name":"Organizers","nameEn":"Organizers","description":"Tidy up your tools and small parts and keep track of them. Print plastic storage cases, modular organizers, cable spools, drawer system, racks and more.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2025-04-20T12:29:04.038963+00:00","firstPublish":"2024-05-10T09:17:35.826707+00:00","datePublished":"2025-04-20T12:29:03.999024+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"summary":"A resource friendly and optimized rugged box for gridfinity bins","likesCount":1333,"makesCount":45,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":4040,"displayCount":20798,"filesCount":144,"privateCollectionsCount":1343,"publicCollectionsCount":1038,"pdfFilePath":"media/prints/873932/pdfs/873932-gridfinity-rugged-case-light-r3-100-sizes-336756a9-8ae5-484e-85bb-13654c68da5e.pdf","commentCount":137,"userGcodeCount":0,"remixCount":6,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"3703809","filePath":"media/prints/873932/images/8002776_d7ed6f82-2a4d-4059-8c90-30c8dc652996_353b2f3f-d3da-4fac-80ae-abeef8044594/titelbild.png","rotation":0,"imageHash":"b/gJDYLUVXR3hXl/dWeofAl3Mb/p","imageWidth":1920,"imageHeight":1440,"__typename":"PrintImageType"},"images":[{"id":"3703809","filePath":"media/prints/873932/images/8002776_d7ed6f82-2a4d-4059-8c90-30c8dc652996_353b2f3f-d3da-4fac-80ae-abeef8044594/titelbild.png","rotation":0,"imageHash":"b/gJDYLUVXR3hXl/dWeofAl3Mb/p","imageWidth":1920,"imageHeight":1440,"__typename":"PrintImageType"},{"id":"3262068","filePath":"media/prints/873932/images/7022031_bc855c33-34ff-4370-a4ff-78ac3833264b_e6bd439f-14a6-4cfe-aae5-e49dc4328ff1/titelbild.png","rotation":0,"imageHash":"M/gFDYKltIqUdWh4tAi5hRlmcK/G","imageWidth":1920,"imageHeight":1440,"__typename":"PrintImageType"},{"id":"3121014","filePath":"media/prints/873932/images/6708575_0ed24a0a-343b-44c2-9e27-20e2da1bd604_4eff0e5e-a832-4af1-921d-b4cebceef468/screenshot_12.png","rotation":0,"imageHash":"tdgRLIiXl5d4d3ePhodYh3CK9w==","imageWidth":2008,"imageHeight":1165,"__typename":"PrintImageType"},{"id":"3121020","filePath":"media/prints/873932/images/6708566_db475cd2-7219-4307-9216-65c6150c94e3_b5737b23-b4ed-4458-8c76-bf38046406f5/screenshot_11.png","rotation":0,"imageHash":"tNgRLIiXmJh3iIh/hohYh4B69w==","imageWidth":1944,"imageHeight":1165,"__typename":"PrintImageType"},{"id":"3121008","filePath":"media/prints/873932/images/6708577_2c70261d-c36d-4e76-bef2-5f51ad7e6159_3ed923b2-9114-4e31-afa4-7f4152a04106/screenshot_8.png","rotation":0,"imageHash":"OQgKBYDZiIh3h3h/doaYdyuFAOiX","imageWidth":1395,"imageHeight":1045,"__typename":"PrintImageType"},{"id":"3123002","filePath":"media/prints/873932/images/6712679_375d2e74-386f-4289-8465-b9f4c798883e_101bdcc1-50bb-4b9d-a95a-1c555417dbbc/screenshot_23.png","rotation":0,"imageHash":"OwgKDYD3WWaHeId6hoiIigd4dHA4","imageWidth":1401,"imageHeight":1051,"__typename":"PrintImageType"},{"id":"3121009","filePath":"media/prints/873932/images/6708576_9f0711a6-cbbc-4d55-946e-9af8d2a59fb3_74cdd50c-752c-4d19-8c78-91ca9035a691/screenshot_14.png","rotation":0,"imageHash":"efgJFIKHmJh2h4iPd4p3eYB39w==","imageWidth":1918,"imageHeight":1168,"__typename":"PrintImageType"},{"id":"3121019","filePath":"media/prints/873932/images/6708565_b0ab81ef-46ea-4b8c-94d0-3f6caff7ce52_daae876d-b2ac-4496-8c4a-9aa5aa0b4847/screenshot_15.png","rotation":0,"imageHash":"sOgNFYL1yoiIeIidZnZ3iQ12Aaz4","imageWidth":1477,"imageHeight":1146,"__typename":"PrintImageType"},{"id":"3717974","filePath":"media/prints/873932/images/8032340_7ed2e849-7392-4b04-a3ba-8d46e38c2004_554e181d-3368-485d-87f0-73096e7d7413/screenshot_1.png","rotation":0,"imageHash":"OwgGDYD3WXh2mHiNc5l4iAmJggcm","imageWidth":1465,"imageHeight":1107,"__typename":"PrintImageType"},{"id":"3717976","filePath":"media/prints/873932/images/8032342_0772ef72-2fe9-41d2-8a6f-a7f2e5198e93_570b004a-256f-451a-b729-c3440db994d0/screenshot_2.png","rotation":0,"imageHash":"d/gFDYL32JiLdneMh0aHjQh2cvdo","imageWidth":1401,"imageHeight":975,"__typename":"PrintImageType"},{"id":"3121018","filePath":"media/prints/873932/images/6708569_6295fd32-935a-4980-a9af-3df1df78244a_24d51c9f-1b89-4e86-b8a2-58650b751ed7/screenshot_3.png","rotation":0,"imageHash":"LfgVDYLah3d1iHhvhqaIhwZ8lD+4","imageWidth":1424,"imageHeight":1047,"__typename":"PrintImageType"},{"id":"3121007","filePath":"media/prints/873932/images/6708578_4c7b0843-4f29-415d-8231-7252574c2dcb_35fbb512-7353-4783-843b-ab0f9e4617e6/screenshot_6.png","rotation":0,"imageHash":"LPgVDYLqh4d1iHhvdaaIiAh5cW/o","imageWidth":1417,"imageHeight":1029,"__typename":"PrintImageType"},{"id":"3121011","filePath":"media/prints/873932/images/6708571_eefe77fb-fdfe-45ea-9647-077a2e2eba9f_6de85fe6-009c-433f-b767-a75559c0d90a/screenshot_2.png","rotation":0,"imageHash":"bRgWDYLah4d1iHhvdpaIhwd7crAn","imageWidth":1406,"imageHeight":1034,"__typename":"PrintImageType"},{"id":"3121016","filePath":"media/prints/873932/images/6708570_f065abde-8f52-4794-bb37-6293cc0360b3_69b3ad23-f537-4bdf-8426-e549795c61a0/screenshot_13.png","rotation":0,"imageHash":"LAgWDYLah4d1iHhvdqaIiAd7crAn","imageWidth":1414,"imageHeight":1041,"__typename":"PrintImageType"},{"id":"3121017","filePath":"media/prints/873932/images/6708567_ee70ac82-eba0-4039-823d-4bc5abf21ba3_64a7007c-5e84-4e94-a972-1594f86e1306/screenshot_1.png","rotation":0,"imageHash":"OAgKBYLph4h2iIh/dYeIeAh5caAH","imageWidth":1432,"imageHeight":1044,"__typename":"PrintImageType"},{"id":"3121015","filePath":"media/prints/873932/images/6708573_2500fdcd-195a-4f2b-b5d8-82c566c8962d_b2d6cec7-5315-4f3f-b4b7-c3863c35b91c/screenshot_4.png","rotation":0,"imageHash":"OAgKBYDpd4h2iIh/dYeIeASNULEH","imageWidth":1429,"imageHeight":1034,"__typename":"PrintImageType"},{"id":"3121021","filePath":"media/prints/873932/images/6708564_7c02dc93-f068-4409-a965-0d7ec660ad5b_86158189-4584-40b3-b9b4-6d739c35cfc5/screenshot_7.png","rotation":0,"imageHash":"9fcNDYDZh4d2iHhvdZaIiPeFXW/I","imageWidth":1416,"imageHeight":1035,"__typename":"PrintImageType"},{"id":"3227034","filePath":"media/prints/873932/images/6945759_2eb9b8e0-6308-4e18-968f-785d8be32686_a34fce65-14fd-4a3e-9d19-5b2935128130/screenshot_anycubic.png","rotation":0,"imageHash":"9gcKDYDneJh3d4ePdpd4efaGbZMI","imageWidth":1296,"imageHeight":961,"__typename":"PrintImageType"},{"id":"3262029","filePath":"media/prints/873932/images/7021966_5fc0515e-a5ac-4a22-ae3a-5ee4d133fde0_250db042-dd3f-40df-aa59-4517f2a33c8a/dremel.png","rotation":0,"imageHash":"9wcKBYDYiIh3h4h/doaYiPV2XrII","imageWidth":1338,"imageHeight":1007,"__typename":"PrintImageType"},{"id":"3262027","filePath":"media/prints/873932/images/7021965_13fbb630-8328-436b-a0cc-8765373927f2_610986f6-b5e3-40dc-bc79-7fe10262a442/dewalt.png","rotation":0,"imageHash":"MSkOJYTph4h2iHh/dpaIiBWLULII","imageWidth":1342,"imageHeight":985,"__typename":"PrintImageType"},{"id":"3262030","filePath":"media/prints/873932/images/7021964_825d3b0c-caf2-4de7-8a1a-c7752b912535_1236187c-9fbc-443d-826a-2d734fdccc22/ryobi.png","rotation":0,"imageHash":"8fgNJYDoh4h2iHh/hpaIiSaKkF33","imageWidth":1342,"imageHeight":963,"__typename":"PrintImageType"},{"id":"3262026","filePath":"media/prints/873932/images/7021970_dcf1b6ca-2f6a-418c-820a-0ce6eea795bc_74a60fe5-9741-4910-ac5d-7de739b8b6af/makita.png","rotation":0,"imageHash":"r+cRDYTZh4d2iHhvdpaIiOp0r073","imageWidth":1389,"imageHeight":1011,"__typename":"PrintImageType"},{"id":"3262032","filePath":"media/prints/873932/images/7021968_63530681-6acc-4a7e-a1b9-29664496f174_09042688-d837-4621-bc62-21634040a7e1/bosch.png","rotation":0,"imageHash":"6/cVDYDZh4h1iHh/dqaIiOpz7wzn","imageWidth":1306,"imageHeight":995,"__typename":"PrintImageType"},{"id":"3262028","filePath":"media/prints/873932/images/7021967_99bdd34a-c13f-470b-b9cd-b5fca863e861_f87d1c7d-e902-4d6d-8e0c-140134ff0e06/stanley.png","rotation":0,"imageHash":"KwgWDYDZh4h1iHhvdqaIiAqJcKEI","imageWidth":1337,"imageHeight":1015,"__typename":"PrintImageType"},{"id":"3262033","filePath":"media/prints/873932/images/7021963_8f155c9a-69ea-49fa-ba8f-6bb3e6575f37_d7a3ae6d-f928-4b4c-9144-8df796fae357/milwaukee.png","rotation":0,"imageHash":"OAgKBYLYiIh2iHh/dpaIiAmKgaAY","imageWidth":1343,"imageHeight":1027,"__typename":"PrintImageType"},{"id":"3262031","filePath":"media/prints/873932/images/7021969_a6e63b3c-151f-48e9-a35a-c35021ab2bb8_e10ced66-6b0e-499f-84b2-6b06cf263b58/stihl.png","rotation":0,"imageHash":"NwgKDYLYiIh3h3h/doaYiAqKkaAI","imageWidth":1288,"imageHeight":993,"__typename":"PrintImageType"}],"tags":[{"name":"prusa","id":"2","__typename":"TagType"},{"name":"parametric","id":"28","__typename":"TagType"},{"name":"box","id":"65","__typename":"TagType"},{"name":"case","id":"233","__typename":"TagType"},{"name":"creality","id":"2004","__typename":"TagType"},{"name":"ender","id":"2006","__typename":"TagType"},{"name":"grid","id":"2982","__typename":"TagType"},{"name":"rugged","id":"13571","__typename":"TagType"},{"name":"nosupports","id":"14840","__typename":"TagType"},{"name":"voron","id":"18078","__typename":"TagType"},{"name":"ratrig","id":"45092","__typename":"TagType"},{"name":"5x4","id":"45763","__typename":"TagType"},{"name":"vorondesign","id":"45861","__typename":"TagType"},{"name":"gridfinity","id":"76163","__typename":"TagType"},{"name":"bambulab","id":"95940","__typename":"TagType"},{"name":"5x4gridfinity","id":"177811","__typename":"TagType"},{"name":"grindfinty","id":"219448","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"4746829","filePreviewPath":"media/prints/873932/previews/bf45e8f505b3e5d3baa797894f0f74f8c1c3fbfb.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"470737","modelId":"633081","modelName":"Gridfinity 5x4 rugged case","modelAuthor":{"id":"145063","handle":"Akio","verified":false,"publicUsername":"Akio","__typename":"UserType"},"model":{"id":"633081","name":"Gridfinity 5x4 rugged case","slug":"gridfinity-5x4-rugged-case","datePublished":"2024-06-09T19:55:09.766019+00:00","image":{"id":"3224271","filePath":"media/prints/633081/images/6939314_fee8cc3b-a1af-4d5d-ab13-1eb196c0d258_48309e5b-119f-4597-9e19-c00f4c8cc004/gridfinityruggedbox6u_master_2024-may-02_09-40-15am-000_customizedview11759193555.jpg","rotation":0,"imageHash":"5vcNDYL2LoiXaIWMdWlmioCZDZjZ","imageWidth":2037,"imageHeight":1528,"__typename":"PrintImageType"},"club":false,"authorship":"remix","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"},{"id":"470761","modelId":"258431","modelName":"Rugged Box (Parametric)","modelAuthor":{"id":"3307","handle":"Whity","verified":false,"publicUsername":"Whity","__typename":"UserType"},"model":{"id":"258431","name":"Rugged Box (Parametric)","slug":"rugged-box-parametric","datePublished":"2025-02-16T16:04:31.504694+00:00","image":{"id":"1163583","filePath":"media/prints/258431/images/2362183_fd1aff76-7db1-4c13-9908-66b64e2ff041/rugged-box-parametric-01.png","rotation":0,"imageHash":"6GgSHor4p3eJiHh9hnZmuGiYBnZiYCc=","imageWidth":1545,"imageHeight":1389,"__typename":"PrintImageType"},"club":false,"authorship":"remix","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"},{"id":"470814","modelId":"495142","modelName":"Rugged Gridfinity Box (Parametric)","modelAuthor":{"id":"650585","handle":"PeterDesigns_650585","verified":false,"publicUsername":"PeterDesigns","__typename":"UserType"},"model":{"id":"495142","name":"Rugged Gridfinity Box (Parametric)","slug":"rugged-gridfinity-box-parametric","datePublished":"2024-11-10T13:13:50.107599+00:00","image":{"id":"1924425","filePath":"media/prints/495142/images/4033372_e0b088e3-a051-4475-9048-1888b62f09a0/2023-05-31_17h00_29.png","rotation":0,"imageHash":"qkgSF4j6hpead4ZtiGZ1qHeHSGA2BGYD","imageWidth":1028,"imageHeight":1016,"__typename":"PrintImageType"},"club":false,"authorship":"remix","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"},{"id":"470760","modelId":"543553","modelName":"Gridfinity Storage Box by Pred (now parametric)","modelAuthor":{"id":"457770","handle":"Pred_457770","verified":false,"publicUsername":"Pred","__typename":"UserType"},"model":{"id":"543553","name":"Gridfinity Storage Box by Pred (now parametric)","slug":"gridfinity-storage-box-by-pred-now-parametric","datePublished":"2023-11-09T17:22:23.988836+00:00","image":{"id":"2117357","filePath":"media/prints/543553/images/4458653_d5337ae3-6bdd-4001-ad56-ae21b014991e/20230817_171603.jpg","rotation":0,"imageHash":"VxgGDYInmmaLeZmAt8eGllhycAc3","imageWidth":4000,"imageHeight":3000,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"3","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Akio

thiner lid and bottom
no magnets
moved the handle to the center
fixed \u201cunprintable\u201d fillets on the underside
added 0,2 mm tolerance for closing the lid
changed the lid tilt angle and inner width slightly
reworked the inner lid geometry
added a slot for a label

Pred

original source
inner geometry for lid used as base for revised geometry

Whity

outside geometry as base
chamfers and fillets on top/bottom
latch geometry with chamfers

PeterDesigns

parametric handle, shortened
rib for upright position
overall crosscheck and trial/error for dimensions/prototyping

material, time and size savings

before: ~ 12 h; ~ 420 g; > 65 mm height
after: ~ 8,5 h; ~ 325 g; < 50 mm height
